Portabelt Video Kit for inspeksjon av havner og kaianlegg
Logg inn for å bruke denne tjenesten

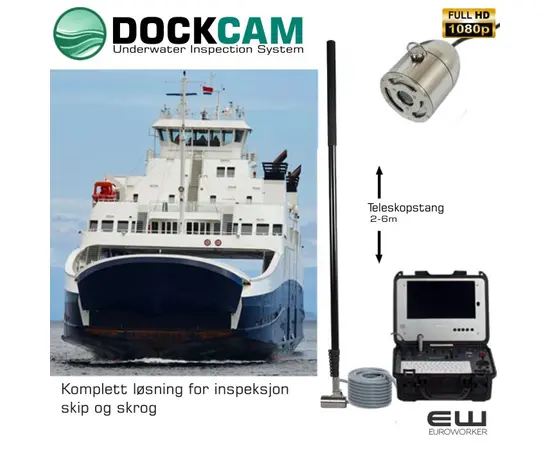

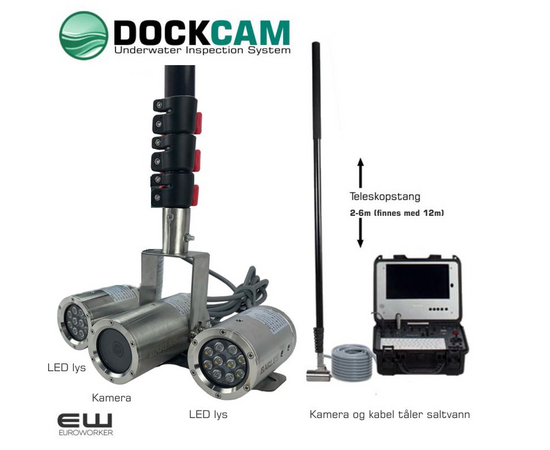

- Windows System Marine Camera System with Telescopic Pole

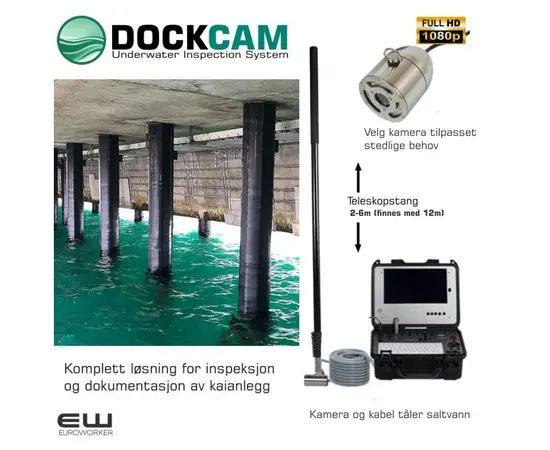

- Komplett portabel video inspeksjonsløsning for inspeksjon og dokumentasjon av tilstand på havner, kaianlegg mm.
- 2-12m teleskopstang (kan leveres med kort eller lang teleskopstang, ta kontakt for tilpasset tilbud)
- Denne løsningen har mange anvendelsesområder:
- Inspeksjon av havner kaianlegg
- Inspeksjon av oppdrettsanlegg
- Inspeksjon av skip og skrog
- Havner og brygger
- Vann og avløp
- Rør og kummer
- Brønner, tanker
- Skorstein, pipeløp
- Leveres i standardpakker eller som bestillingsvare tilpasset stedlige behov.
- Velg:
- Kamera oppløsning, zoom, vanntetthet mm
- Kabellengde
- WAN, LAN, WLAN grensensitt
- Harddisk
- Spesialtilpasning
- Annet
- Enkelt oppsett & bruk
- Windows grenssnitt
- Kan enkel integreres med kundens applikasjoner
- Vanntett kamera
- 3 x kraftig LED for optimal bildekvalitet
- Full HD videokvalitet
- Regulerbar teleskopstang, ulike lengde tilgjengelig fra 2m til 12m
- Koffert med skjerm & harddisk med god lagringskapasitet
Fra produsent:
-
∅70MM,1080P full HD Camera Head.Can be permanently fixed under sea water.
-
Built-in led lights and infrared lights
-
1/2.8 sensor.2MP 1920*1080P
-
Water depth: 50M-100M.
-
10inch 1080P full DH Display.
-
Split screen available.
-
Built-in windows software
-
Menu language: English
-
500G Hard Driver
-
External 2USB jackets and support mouse operation.
-
External 2 RJ45 jackets and support LAN/WAN
-
H.264 and AVI video format
-
12MTelescopic Pole
-
Water depth:300M(customized)
Detail spec:
| Display | |
| Screen | 10inch SPI HD display, 170° wide view angle |
| Split screen | Available |
| Waterproof | IP65 waterproof rating, to prevent jet water immersion |
| OSD language | English |
| Suitcase | |
| DVR |
support for video, playback, query, copy and so on,controlling the display function |
| Audio | audio input, you can record the sound through the microphone, stored to the hard disk |
| External Jacket1 | 2pcs external RJ45 jacket, support WAN/LAN |
| External Jacket2 | 2pcs external USB jacket |
| Video input | 4K/5MP/4MP/3MP/2MP 60fps |
| Special | anti-knock, effectively ensure that the internal components of normal work |
| Software | Built-in Windows system |
| Waterproof | IP65 waterproof rating, to prevent the jet of water immersion |
| Storage | built-in 500GB hard drive, long time storage 1080P HD video |
| Special | anti-knock, effectively ensure that the internal components of normal work |
| Waterproof | IP65 waterproof rating, to prevent the jet of water immersion |
| Mouse | support the mouse for quick operation |
| Video format | H.264 and AVI |
| Mouse | support the mouse for quick operation |
| Video format | H.264 and AVI |
| Built-in Battery | Built-in 6000mAh rechargeable battery,supporting working time: more than 6 hours |
| Power supply | DC24V |
| Adaptor | 25.2V |
| Demension | 42*34*18CM |
| Gross/Net Weight | 6.8KG/6.1KG |
| Camera head | |
| Demension | ⌀70*100mm |
| Lens | 2.0mm (H.FOV:100° ） |
| Sensor | 1/2.8" SONY CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
| Resolution | 2MP 1920×1080P 25FPS |
| Illumination |
Light sensor contorlled 3 white light , 4 infrared light,10 level brightness settings |
| Material | 316L stainless steel, anti-corrosion |
| Waterproof | IP68 |
| Water Depth | 50-100M; Customized water depth rate available. |
| Cable | The default length is 10 meters (the longest is no more than 80 meters),PU material,diameter 6.7MM.Resistance to 60KG pull,Anti-aging,Anti-friction,Resistance to seawater corrosion,Special underwater wire. |
| Cable length | 5M(More length options) |
|
supporting device |
Support iOS, Android, computer, NVR.Compatible with hikvision, dahua, proprietary protocol.(Only support windows-IE browser for camera internal parameter setting) |
|
supporting agreement |
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF;SDK Secondary development |
|
Use environment |
Sea water / fresh water /Underwater,land,Car,Shipborne. |
|
Working humidity |
0%-100% |
|
working temperature |
-20°~55° |
| Telescopic Pole |
|
| Material | Carbon Fiber |
| Lenghth | 12M. |
| Packing List | |
|
1x Case 1x Cable 1x Telescope pole 1x Mouse 1x Charger 1x Manual |
|
