Rugged high-definition body camera
Designed for everyday carry in the most demanding environments

THE POWER OF LIVE VIDEO CONNECTION
A high-definition wearable bodycam tailored for professional organizations, with the USB connection allowing users to
fully leverage the data and video capabilities of modern mobile broadband networks and terminals. Enables seamless
video streaming and video calls between front-line workers and team leads, command centers, and control rooms,
bringing safety and efficiency to a new level.

FUNCTIONALITY

• On/Off button for video streaming
• Automatic IR illumination for low-light environments
• Stealth Mode –button (all indicators and illumination off

AUDIO (INTEGRATED MICROPHONE

• MEMS microphone for ambient sound streaming with
video
• IP67 protected

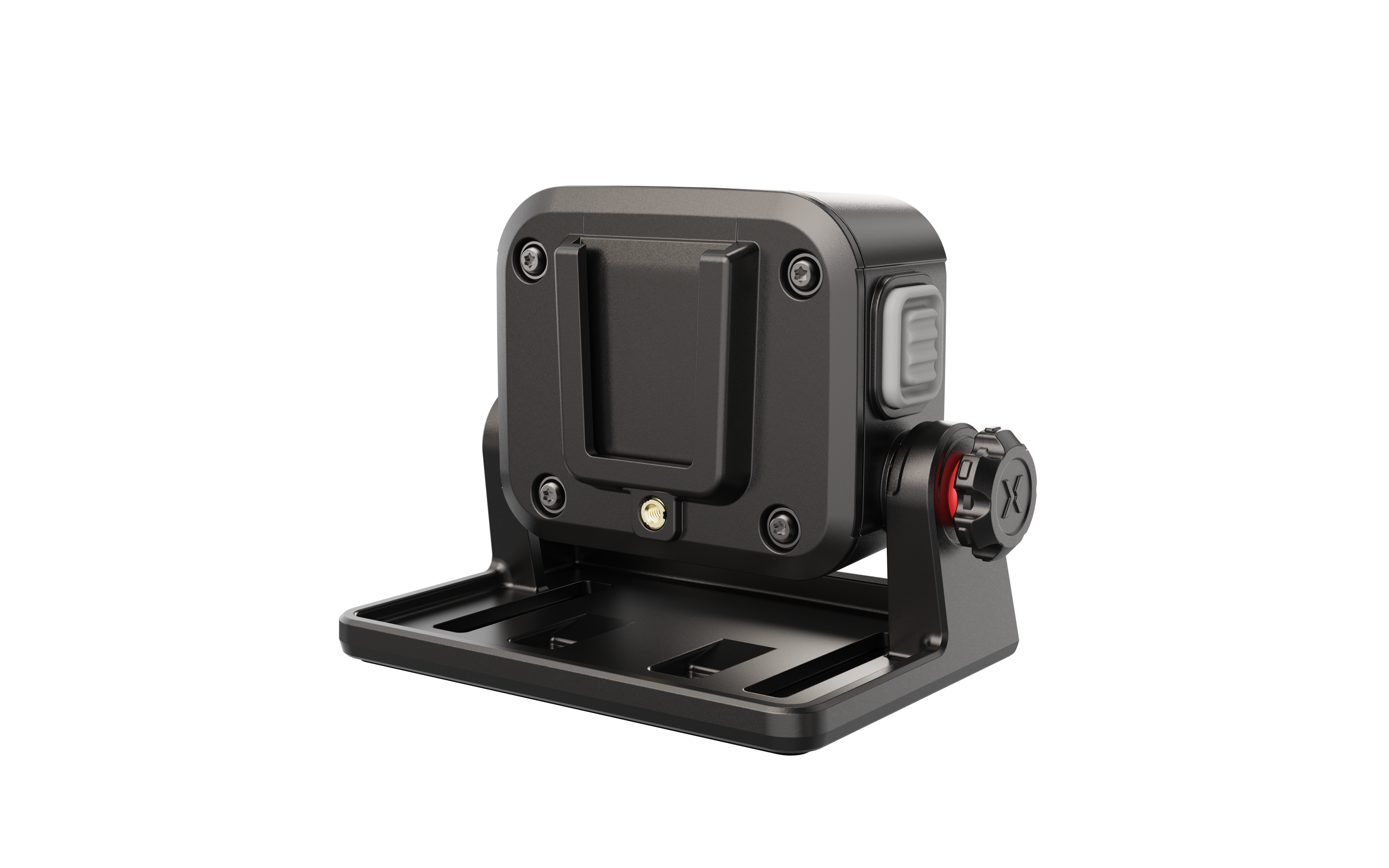

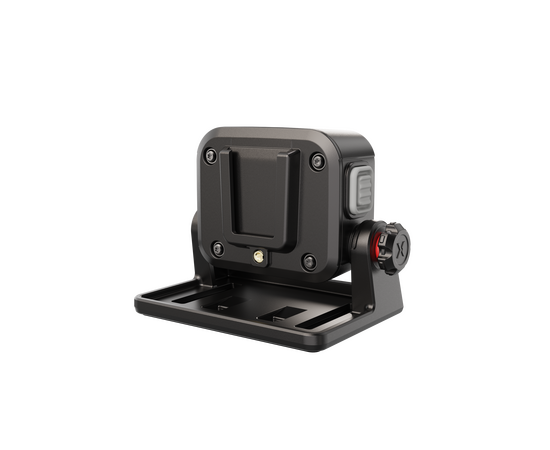

MOUNTING MODES AND OPTIONS

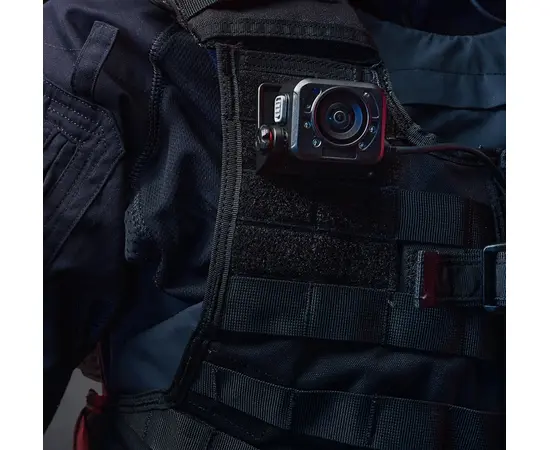

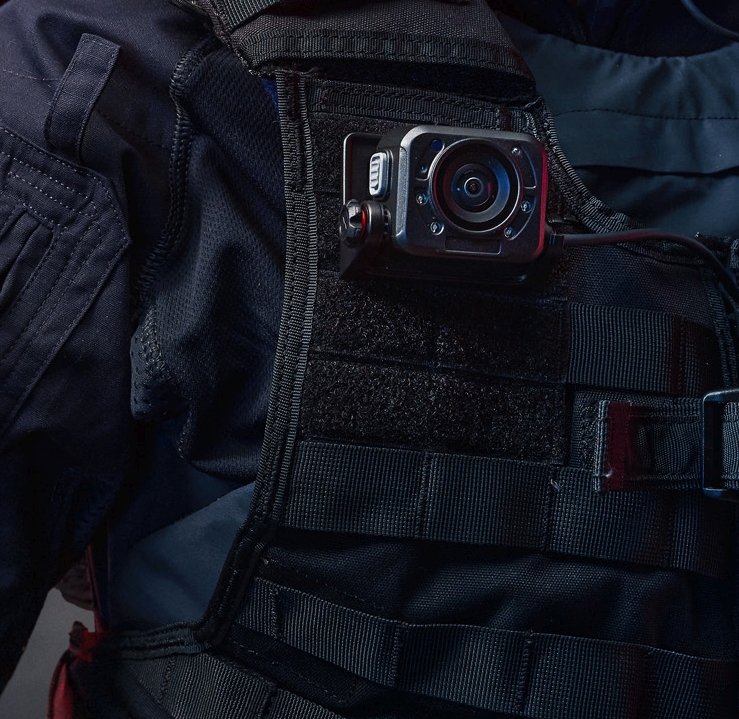

• Shoulder/chest mount with velcro and strap mounting
options.
• Standard Savox interface for various mounting options:
Big clip, Thin Clip, MOLLE/PALS mounting clips.
• Threaded screw insert for securing the clips used with
the standard Savox clip interface.
• All mounting options are user replaceable without use
of special tools

DIMENSIONS
Dimensions (WxHxD) 55x40x27 mm
Dimensions with mount
(WxHxD) 66x53x44 mm
Weight including the
mount 70 g

VIDEO
CONNECTIVITY
Data format
640 x 480
800 x 600
1280 x 720
1920 x 1080
Video frame rate
640 x 480 @30fps
800 x 600 @30fps
1280 x 720 @30fps
1920 x 1080 @30fps
Image sensor 1/2.9”CMOS
Resolution 2 megapixel
lmage Format YUV / MJPG
lnfrared illumination in
low-light environments
4 pcs. LED, 850 nm, auto on/off
based on ambient illumination
White Balance Auto
Lens Wide-Angle Lens
Optical Field of View
Optical FOV(D) 155°
Optical FOV(H) 133°
Optical FOV(V) 73°
Connector cable length 50 cm (can be tailored)
Connector type USB C Male (can be tailored)
Operating Voltage/Current
(typical values)
Normal operation: 190 mA @ 5V
In low light with illumination on:
300 mA @ 5V

COMCOMPLIANCE STANDARDS CE and FCC marked
EU EMC directive: Electromagnetic Compatibility Directive (EMC) 2014/30/EU
RoHS directive: Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU + (EU) 2015/863
Standards: EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 63000:2018
US FCC 47 Part 15 Subpart B
Environmental and testing
IP rating IP67
Shock resistance MIL-STD-810H, Drop to hard surface from 1.22 m
Vibration MIL-STD-810H
Operation temperature -40 °C - +60 °C
Storage temperature -45 °C - +70 °C
Temperature shock MIL-STD-810H -40 °C - +70 °C
Button switch component
lifecycle 50,000 cycles of operation
Cable pull strength 5 kg / 10 kg
Cable bending test 5000 times, with 500 g weight

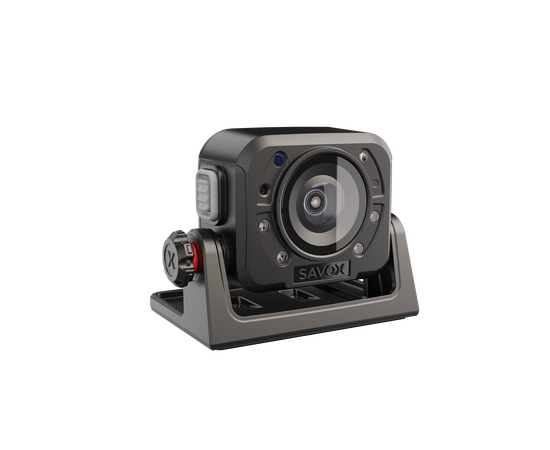

The Savox LiveConnect 200 is a high-definition wearable body camera that has been tailored for professional organisations, allowing users to fully leverage the data and video capabilities of modern mobile broadband networks and terminals. With features for video streaming and video calls, it seamlessly connects frontline workers with team leads, command centres and control rooms.

The camera addresses the challenges of daily duty carry with its lightweight yet rugged and robust construction. Versatile mounting options enable easy integration with work gear and uniforms, enhancing usability without compromising on durability.

The product has been designed to withstand tough conditions, featuring an IP67 rating, shock resistance and an operational temperature range of -40 to +70°C
