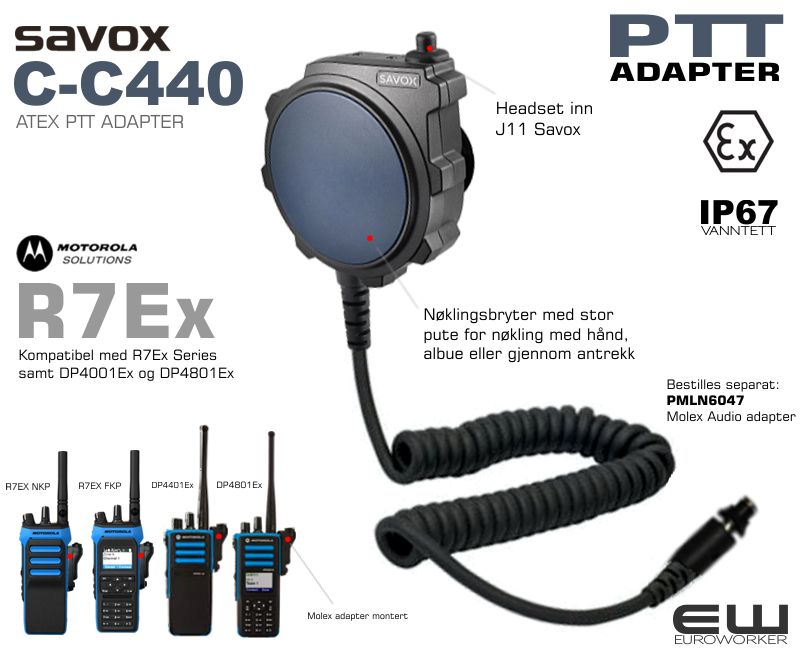

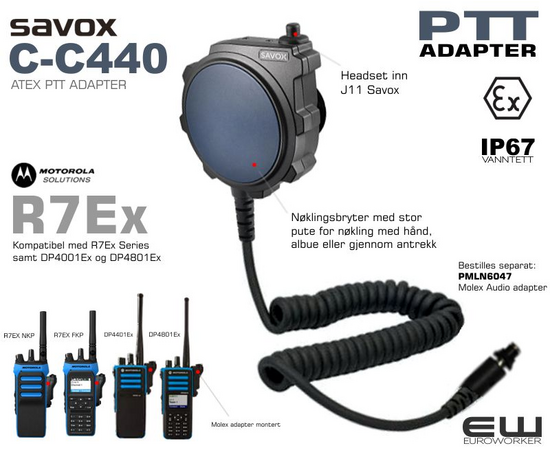

Savox C-C440 Molex PTT Adapter (Atex, DP4X01Ex)
Logg inn for å bruke denne tjenesten
-
- Nøklingsbryter for bruk med Motorola Quick Release Audio Adapter (bestilles separat)
- Nøklingsbryter med stor pute for nøkling med hånd, albue eller gjennom antrekket
- Atex godkjent, kompatibel med DP4401Ex, DP4801Ex, R7Ex NKP og R7Ex, FKP
- Savox PTT adapter som erstatter tidligere C-C400
- Modell med Motorola Molex adapter (PMMN6047)
- Push-to-talk enhet med hanskevennlig stor PTT pute
- Tåler tøffe forhold - global bestselger
- Se Molexadapter PMLN6047
- Lettvint og sikker kommunkasjonsløsning for profesjonelle
- P67 (vanntett)
- ATEX eller NON-Atex versjon
- Stor PTT bryter for bruk med selv tykke hansker
- Slank design
- Stor 360 graders roterende klipsfeste
TEKNISKE SPESIFIKASJONER (ENGELSK)
- WEIGHT: 140g (excluding the connector cable)
- SIZE: PTT - 66mm diameter
- MATERIAL: Polyamide
- FIXING: Via rotating clothing clip
- CABLE: According to application
- CONNECTORS: Via 4-pole quick release jack for the headset or via a radio specific connector.
- OPERATION TEMPERATURE: -40 to +85 oC
- SUPPLY VOLTAGE: 3.0 to 10.0 Volts DC
- HUMIDITY: 100% @ +40 oC / 21 Days
- INGRESS PROTECTION: IP 67
- ESD, EMI IMMUNITY: Conforms to EN 301 489-1 and EN 301 489-18
- OPERATIONAL PTT LIFETIME: 500,000 cycles
- EMERGENCY BUTTON LIFETIME: 40,000 cycles
Full description
The SAVOX C-C440 com-control unit is a push-to-talk unit designed for use with your two-way radio in demanding environments. It offers easy and reliable communication for professionals requiring durable equipment when operating in harsh conditions, and is ideal for those who need to communicate hands-free and/or with their radio secured underneath protective clothing. With a headset it provides a hands-free way to stay connected with your team and ensure the efficiency and safety of your operations. Rugged to IP67 and available as an ATEX version. Ex variants can be recognized by their different PTT button color (dark blue).
Technical Specification
Product code: L443172
Weight: 140 g
Size: 89,8 x 30,9 x 87,9 mm
Cable: Coiled
Connectivity: Wired
Headset connector: QR4 + 1 female
Operating temperature: -40 to +85°C
Use voltage: 3.0...10VDC (0VDC for dynamic microphone)
Ingress protection: IP66, IP67
Approval: Approved according to ATEX, Conforms to Conforms to EN 60079-0 and EN 60079-11
- PUSH TO TALK (PTT)
