QuWireless Outdoor LTE and WiFi Router and Antenna Enclosure.
Logg inn for å bruke denne tjenesten
- QuWireless Outdoor LTE and WiFi Router and Antenna Enclosure.
QuRouter X11S is a perfect outdoor LTE Cat 6 router with embedded concurrent dual band AC Wi-Fi Access Point/Hotspot for mobile and fixed installations. Equipped with Dual-SIM, Bluetooth LE and GPS/GNSS. RUTX11. Integrated with omnidirectional antennas to all wireless interfaces. This device is perfect for advanced Industrial and Enterprise applications. Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition.
-

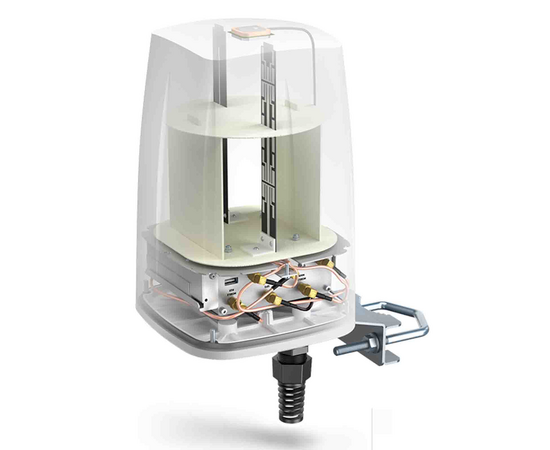

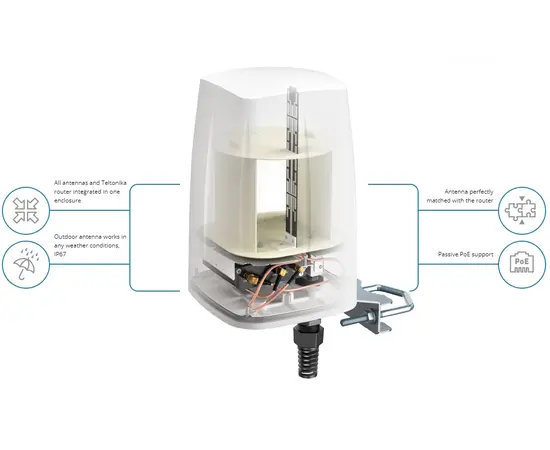

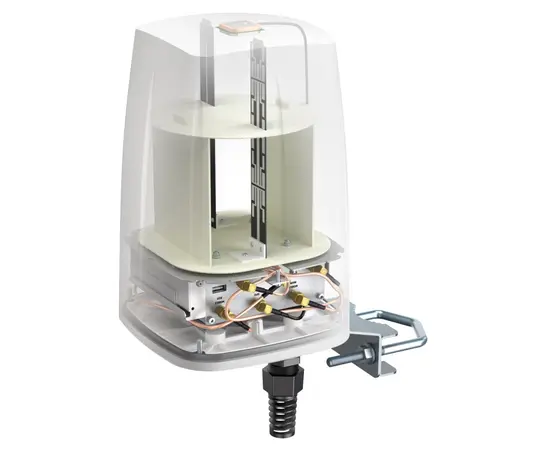

All antennas and Teltonika router integrated in one enclosure
-
LTE Cat 6 with speeds up to 300 Mbps
-
Bluetooth LE for short range communication
-
Wave-2 802.11ac concurrent Dual Band WiFi
Mobile Network
Mobile Network Generation
3G (UMTS), 4G (LTE)
LTE Category
Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Dual SIM
Wireless Network
Standards
802.11b/g/n, 802.11ac Wave2
2.4GHz Radio Rate
300Mbps
5GHz Radio Rate
867Mbps
Antenna
Antenna Design
Dome
Interfaces
RJ45 Ports
(3) 10/100/1000 Mbps
Power
Power Method
24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 50 V DC
Max Power Consumption
16 W
Physical Parameters
Material
Galvanized steel, Aluminium, ABS Plastic
Ingress Protection Code
IP67
Dimensions
160 x 160 x 240 mm
Weight
1.5 kg
Operating Temperature
-40 °C to 75 °C
