BoB learns quickly and well! It applies analysis algorithms embedded in its sensor to understand and monitor all of your equipment.
Watteco LoRaWAN Vibration Sensor Monitoring System (BoB ASSISTANT)
Logg inn for å bruke denne tjenesten
YOUR MACHINES WORK 24/7. BOB DOES TOO.

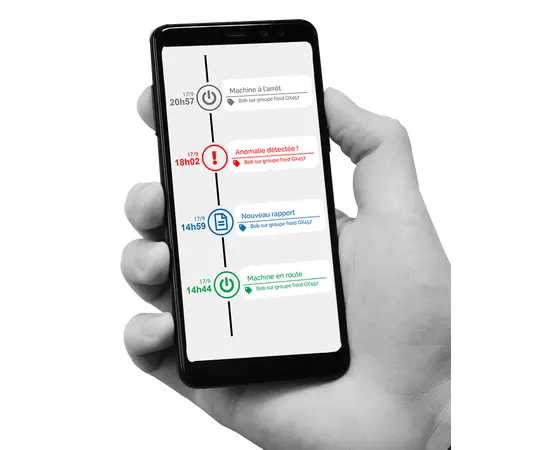

BoB Assistant is an IoT device that alerts you in real-time on the operating status of your machines. Prevent failures and reduce downtime with the power of artificial intelligence and connected objects. Deploy factory 4.0 with zero infra, zero cabling, and zero configuration!
Ofte stilte spørsmål - les her: https://bobassistant.com/en/faq-2/
BOB'S TALENTS
INTELLIGENT
SIMPLE

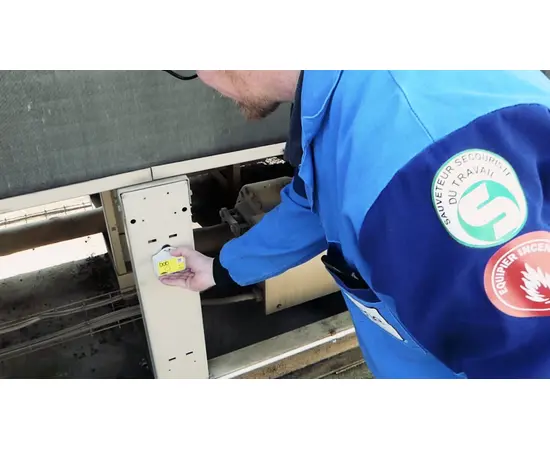

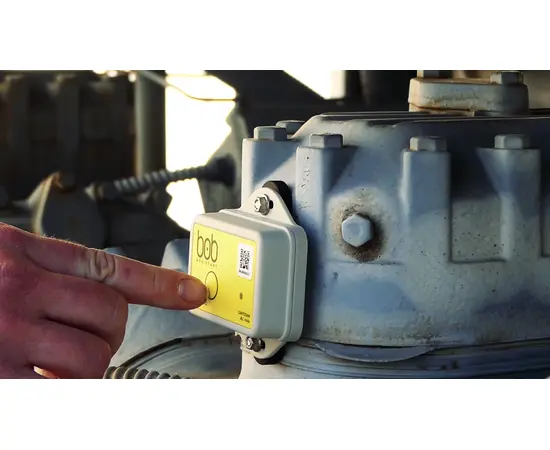

Zero infra, zero wiring, zero configuration. To install BoB, simply place it on your equipment. BoB works autonomously for several years.
CONNECTED
BoB communicates accross LoRaWAN® networks, perfectly adapted to the Internet of Things (IoT). The maximum range for minimal energy consumption and long battery life!
SECURED
Your equipment production data is safe with BoB. It retains it and sends only encrypted scan reports.
USE CASES
BoB is deployed every day on various types of machinery across multiple industries, such as manufacturing, automotive, energy, oil & gas, building & facility management, plus more! There is almost no limit to the use of BoB Assistant!
Compressor
Combustion engine
Chiller systems
Transformers
Generator
Pump
Power supply
Machine tool
TECHNICAL SPECS

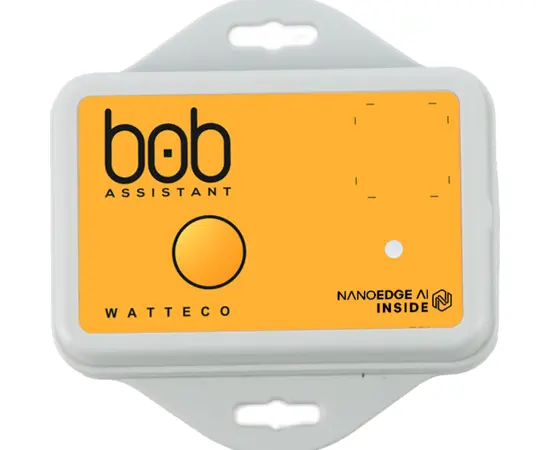

Sensor BoB 1.1
3 axis accelerometer
Embedded temperature sensor
Sampling frequencies: 800Hz and 25 600Hz
Monitored frequency: 0Hz – 12800 Hz
Monitoring wake-up period adjustable
Operating temp range : -20°C +55°C
Firmware
Autonomous learning and reporting by Artificial Intelligence, embedded by Cartesiam
Alarm Threshold on vibration anomaly
Peak frequency and FTT reports
Restart or complete learning
Setup reporting period
Power supply
AA 2000mAh battery (replaceable)
Nominal autonomy : > 2 years
(2 samples every 5 minutes and 8 transmissions per day)
Test & Qualifications
CE marked, qualified for industrial use EN 61000-6-2
Storage Class 1.2 ETSI EN 300 019 Part 1.1
Transport Class 2.3 ETSI EN 300 019 Part 1.2
Operating Class 5.2 ETSI EN 300 019 Part 1.5
Radio
Max transmission power 25mW in the radio band 868.0 to 868.6MHz
LoRa® 1.0 Class A, Class C (compatible), SF6-SF12
LoRa® sensitivity : -137 dBm
Casing
IP68 Polyamide casing
Dimensions : 76 x 79 x 23 mm (incl. fixing lug)
Weight : 75g
2x magnets and nuts supplied
SEND FORESPØRSEL
