ENTEL DT885 (4W UHF) & DT985 (1W UHF), DT882 (4W UHF) & DT982 (1W UHF) og DT825 (4W VHF) & DT925 (1W VHF), DT822 (4W VHF) & DT922 (1W VHF) INTRINSIC SAFE DMR PORTABLE Radio
Logg inn for å bruke denne tjenesten
Latest addition to Entel DTEx DMR Digital Series Intrinsically Safe radios.

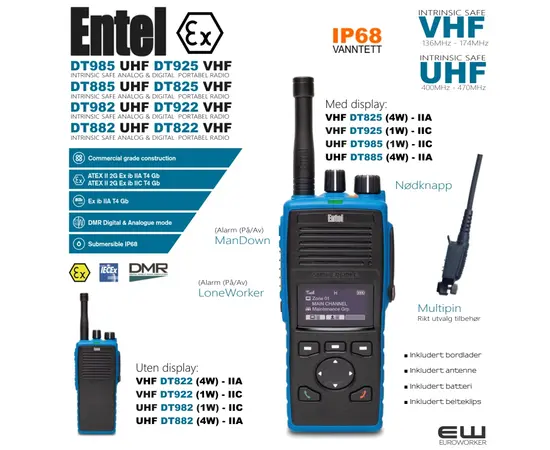

- Velg modell fra menyen (ta kontakt hvis usikker):
- VHF - DT922 - Uten display - ATEX IIC 16 kanaler 1W VHF Tier II
- VHF - DT925 - Med display - ATEX IIC 256 kanaler 1W VHF Tier II
- UHF - DT982 - Uten display - ATEX IIC 16 kanaler 1W UHF Tier II
- UHF - DT985 - Med display - ATEX IIC 256 kanaler 1W UHF Tier II
- VHF - DT822 - Uten display - ATEX IIA 16 kanaler - 4W VHF Tier II
- VHF - DT825 - Med dispaly - ATEX IIA 256 kanaler - 4W VHF Tier II
- UHF - DT882 - Uten dispaly . ATEX IIA 16 kanaler - 4W UHF Tier II
- UHF - DT885 - Med displayt - ATEX IIA 256 kanaler 4W UHF Tier II
DT885 UHF - Link til produsent: https://www.entel.co.uk/products/dt885
DT882 UHF - Link til produsent: https://www.entel.co.uk/products/dt882
DT825 VHF - Link til produsent: https://www.entel.co.uk/products/dt825
DT822 VHF - Link til produsent: https://www.entel.co.uk/products/dt822
| Frequency Range | UHF 400-470 MHz VHF 136-174MHz |
| Channels | 16/256 |
| Number of Zones | 8 |
| Vocoder | AMBE+2™ |
| Battery | CNB950EV2 1800mAh Lithium-Ion |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Frequency Stability | ± 1.5ppm |
| Operating Voltage | 7.4v |
| Programmable Buttons | 5 |
| Analogue Channel Spacing | 12.5/20/25KHz |
| Digital Channel Spacing | 12.5KHz |
| Battery Endurance (5/5/90 duty cycle @ 4W) | Analogue 12.5 hours Digital 16.5 hours |
Transmitter
| Output Power | 4 Watts (high) / 1 Watt (low) |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
| Conducted / Radiated Spurious Emissions | Better than -36dBm |
| Adjacent Channel Power | Better than 60dB |
| Audio Distortion (typical) | 3% |
Receiver
| Sensitivity (typical) | Analogue -121dBm (0.2uV) for 12dB SINAD Digital -121dBm (0.2uV) for 5% BER |
| Intermodulation response rejection (ETSI) | > 70dB |
| Adjacent Channel Selectivity (ETSI) | > 70dB(12.5KHz) 60dB(25KHz) |
| Spurious Response Rejection (ETSI) | > 70dB |
| Audio Output Power | 1-Watts |
| Audio Distortion (typical) | 3% |
| Conducted Spurious Emission (ETSI) | > - 57dBm |
Environmental
| Ex Protection | ATEX II 2G Ex ib IIA T4 Gb |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | MIL-STD-810 C/D/E/F/G |
| Dust & Liquid Ingress | IP68 (2m 4h Submersible) |
DT985 UHF - Link til produsent: https://www.entel.co.uk/products/dt985
DT982 UHF - Link til produsent: https://www.entel.co.uk/products/dt982
DT925 VHF - Link til produsent: https://www.entel.co.uk/products/dt925
DT922 VHF - Link til produsent: https://www.entel.co.uk/products/dt922
| Frequency Range |
|
||
| Channel Spacing | 12.5 & 25KHz | ||
| Operating Voltage | 7.4v | ||
| Weight | 435g | ||
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm | ||
| Programmable Buttons | 5 | ||
| Channels | 16/256 | ||
| Battery | CNB950EV2 1800mAh Lithium-Ion | ||
| Battery Endurance (5/5/90) Analogue mode | 14 hours | ||
| Battery Endurance (5/5/90) Digital mode | 17.5 hours |
Transmitter
| Output Power UHF | ATEX IIC 1 Watt |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz |
| Conducted / Radiated Spurious Emissions | Better than -36dBm |
| Adjacent Channel Power | Better than 60dB |
| Audio Distortion (typical) | 3% |
Receiver
| Sensitivity (Typical) | Analogue -121dBm (0.2uV) for 12dB SINAD Digital -121dBm (0.2uV) for 5% BER |
| Intermodulation response rejection (ETSI) | > 70dB |
| Adjacent Channel Selectivity (ETSI) | > 70dB(12.5KHz) 60dB(25KHz) |
| Spurious Response Rejection (ETSI) | > 70dB |
| Audio Output Power | 1 Watts |
| Audio Distortion (typical) | 3% |
| Conducted Spurious Emission (ETSI) | > - 57dBm |
Environmental
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | MIL-STD810 C/D/E/F/G |
| Water Ingress | IP68 2 metres, 4 hours submersible |
| Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
