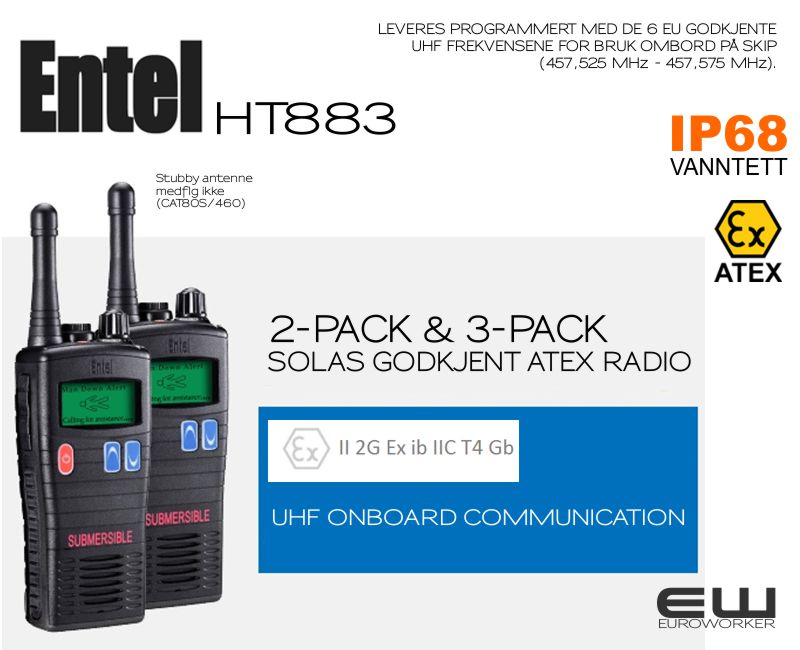

Entel HT883 2-PACK Solas Godkjent UHF Marineradio (ATEX IIA)
The HT883 portable is ATEX (II 2 G Ex ib IIA T4) Intrinsically Safe certified and approved to the essential IEC 60945 marine environmental standard and fully Submersible to IP68 (2 meters depth for 4 hours).
Entel’s HT800 Series 2 portables will exceed the expectations of even the most experienced radio user.
General
Intrinsically Safe
All HT800 Series 2 portables are ATEX (II 2 G Ex ib IIA T4) Intrinsically Safe certified.
Environmental protection to IP68 (2 Meters for 4 hours)
The practical HT800 Series 2.0 portables enjoy an IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible.
MILSTD 810C/D/E/F
Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel's HT800 Series 2.0 portables conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.
Lithium-Ion Battery Technology
HT800 Series 2.0 portables are supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’ meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.
Flash upgradeable to add future features
Entel adds and improves features on its HT800 radios by way of software updates. Using Flash Upgrade technology your Entel HT800 radios can be upgraded by your Dealer at any time.
Robust accessory socket
The socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.
Channels
All non-display HT800 portables provide 16 programmable channels. Display portables provide 255 programmable channels.
Convenience
Keylock
To avoid accidental operation your radios keys & controls can be locked by the user or, if set, automatically by the radio.
VOX hands free (with audio accessory)
When using an Entel VOX enabled audio accessory, your HT800 portable can operate totally hands free. All you need to do is talk and the HT800 portable will automatically transmit for you.
Scan/priority scan
The HT800 Series portables have the facility to scan for an active (or free) channel. When the channel is found, the radio will automatically select it for you. Priority scan will allow you to select one channel in the scan list that is treated as a "Priority". It will be checked more frequently than all other channels in the list.
Programmable channel monitor button
If you have channel protection enabled on your HT800 portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.
General
Frequency Range | 457.525 - 467.575MHz |
Channels | 255 channels max |
Channel Spacing | 12.5 kHz / 25 kHz |
Communication Method | Simplex / semi duplex |
Antenna Impedance | 50 ohm |
Antenna | Whip |
Battery Type | 1800 mAh Li-Ion battery pack |
Power Supply Voltage | 7.4V DC |
Current Drain (nominal) | 40mA |
Duty Cycle (5/5/90) | 12.5 hours |
Microphone | Internal condenser microphone |
Operating Temperature | -20° to +55°C |
Size (mm) | 59.5(W) x 130(H) x 37(D) |
Weight | 277g with battery and aerial |
Transmitter
Power Output | High - 2W / Low - 1W |
Modulation | 8K0G3E/16K0G3E |
Oscillator Method | PLL |
Frequency Stability | 2.5PPM |
Maximum Deviation | ±2.5 kHz(Narrow)/ ±5 kHz(Wide) |
Audio Distortion | < 5% (1 kHz 60%) |
Spurious Emission | -68 [dBc] |
Hum & Noise | -40 [dB] |
Receiver
Receiver Type | Double Super Heterodyne type |
Sensitivity | -0.25uV (12dB SINAD) |
Frequency Stability | 2.5PPM |
Spurious Rejection | -60 dB |
Adjacent Channel Selectivity | -60 dB (Narrow) , -70 dB (Wide) |
Distortion | < 5% (1 kHz 60%) |
Hum & Noise | -40 dB |
Audio Output | 1W |
