Kenwood NX-330EXE UHF & NX-320EXE VHF Atex
Logg inn for å bruke denne tjenesten

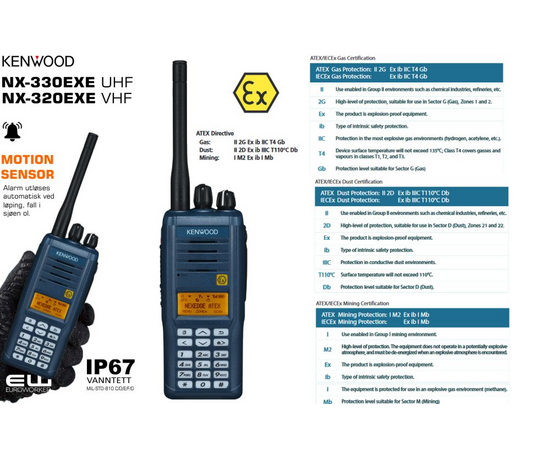

ATEX & IECEx CERTIFIED
Offering the highest levels of safety in the industry, the NX-230EX/330EX complies with both the ATEX Directive (ATmospheres
Explosive) and the IECEx (International certification system for Ex products) Scheme. These trusted certifications ensure the safe
functioning of equipment and protective systems with respect to the risks of explosion covered by these standards. As listed below,
the various classes relate to the use in specific environment.
FUNCTIONS & FEATURES
n VHF (136-174 MHz)/UHF (400-470 MHz) Models
n 512 CH-GID/128 Zones
n 12-Key Keypad
n 14-Character Alphanumeric Aliases
n Backlit Dot Matrix LCD
n 3-Digit Sub-Display
n Function/Status LCD Icons
n RSSI Indicator
n Transmit/Busy/Call Alert/Warn LED
n On/Off Volume Knob
n 16-Position Mechanical Selector
n NXDN® Digital Air Interface
n AMBE+2™ Vocoder
n 6.25 & 12.5 kHz Channels
n Over-the-Air Alias (TX)
n Over-the-Air Programming
n Emergency Call
n Short & Long Data Messages
n NXDN® Built-In Digital Encryption
n Status Messaging
n Remote Stun/Kill
n GPS Location with Voice
n 64 (including “none”) Radio Access
Numbers (RAN)
n Individual & Group Selective Call
n Mixed FM/Digital Operation
n Conventional IP Networks
n Site Roaming
n Individual call with Acknowledgment
n Individual Private Call
n Group Call
n 4 Priority Monitor IDs
n Late Entry (UID & GID)
n Broadcast Call
n Remote Group Add
n Transmission Trunked Mode
n Message Trunked Mode
n Failsoft Mode
n Call Queuing with Priority
n Telephone Interconnect
n Single/Multi-Zone Scan
n Dual Priority Scan (Conventional)
n List Scan
n QT/DQT
n 5-Tone Encode/Decode
n Single/Two-Tone Encode
n Voting
n PTT ID Digital ANI (TX)
n Selective Call & Group Call
n Status Messaging
n Emergency Status
n Short Text Messages
n Power On/Off Status Messages
n PTT ID & Emergency GPS Reporting
n Status Message Block GPS Reporting
n GPS Ack Request
n 60,000 GIDs per Network
n 60,000 UIDs per Network
n Wide Area All Group Call
n Auto-Roaming/Registration
n Multi-Site IP Network
n Location/Group Registration
n 25, 20 & 12.5 kHz Channels
n FleetSync®/II
n DTMF Encode/Decode
n Companded Audio
n Voice Inversion Scrambler
n 6 Front PF & Menu Keys
n 2 Side PF Keys
n Emergency/AUX Key
n 500 mW Speaker Audio
n VOX Ready
n Emergency Call Features
n Special Alert Tone Patterns
n Time-Out-Timer
n Busy Channel Lockout
n LCD Battery Status Indicator
n Low Battery Alert
n Battery Saver
n Weather-Sealed ACC Connector
n Front Panel Test
n Cloning
n SDM Manual Input
n TX LED On/Off Setting
n Multi-Language Display
n Transparent Data Mode
n Built in GPS
n Stationaly/Motion Sensor
n PC Protocol Interface
