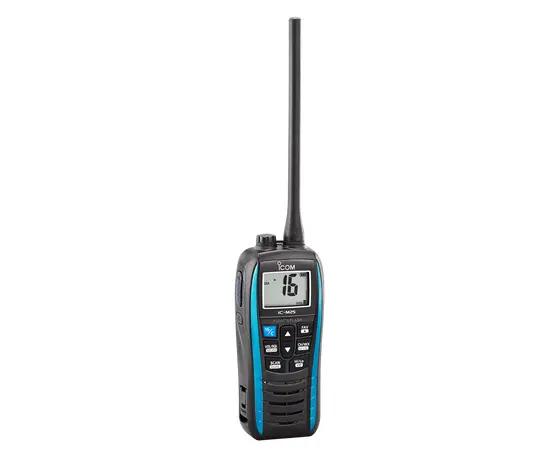

Icom IC-M25E Marine Handheld radio (VHF)

Spør kundeservice
IC-M25E
2350 ,-
Eks mva Inkl mva
Tilgjengelig
+

Supplied Accessories

・    USB charger, BC-217SA*
・    Belt clip, MB-133
・    Antenna, FA-SC59V
・    Hand strap



Slim, Lightweight, High Performance

The IC-M25 has the slim (depth:30.5 mm; 1.2 in) and light (220 g; 7.8 oz) body. It also delivers uncompromised performance that will exceed expectations.

Large LCD, Simple User Interface

The IC-M25’s LCD is 30% larger than its predecessor, the IC-M24 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.

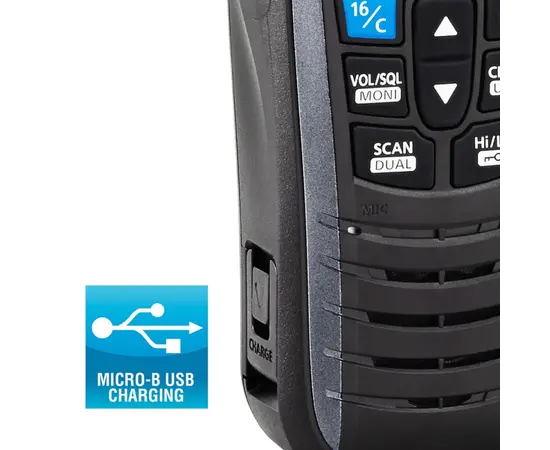

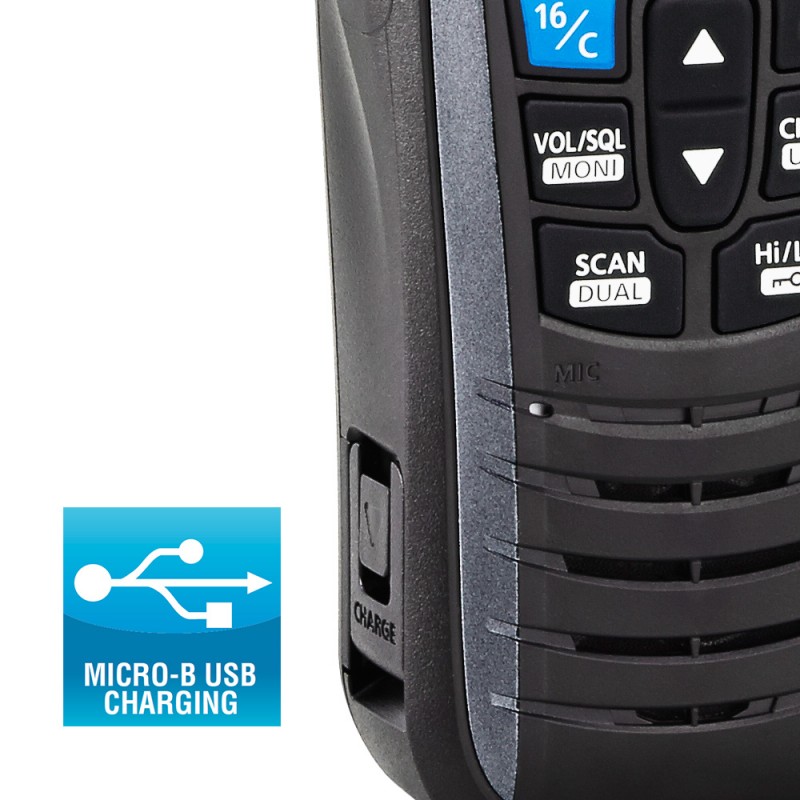

USB Charging (Micro-B USB type)

A standard USB connector (Micro-B type) is used for charging the IC-M25. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25*.

* The IC-M25 accepts 5 V/1 A (Max.) input. Use of third-party products is not guaranteed.

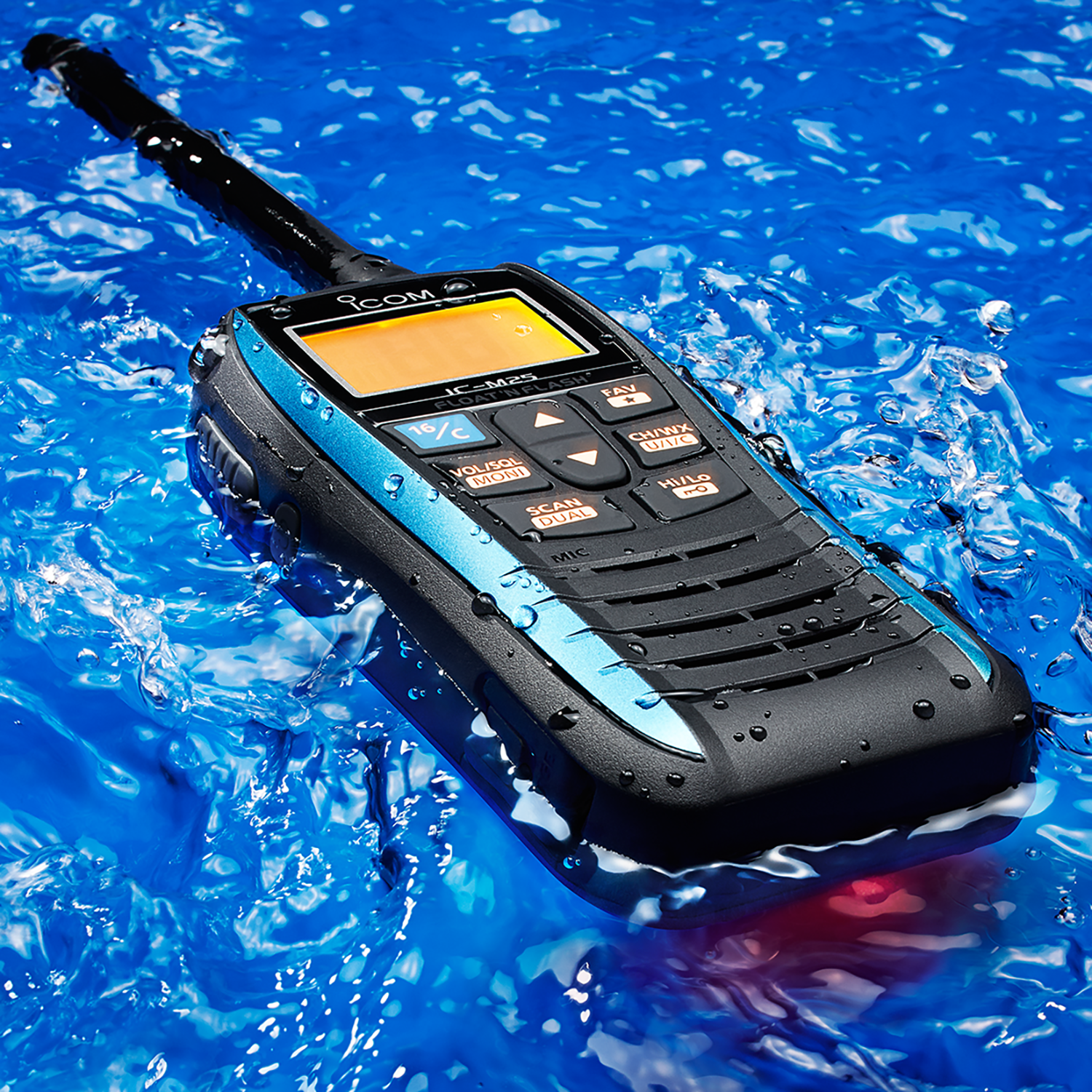

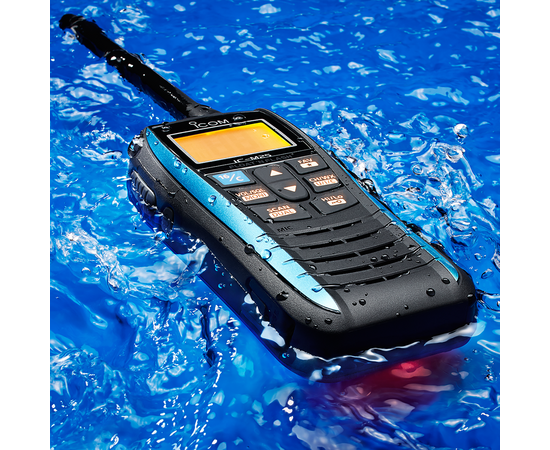

Float'n Flash



The IC-M25 floats and lets you know where it is with the flashing red LED light and LCD/key backlight.

11 Hours of Battery Life

The built-in 1500 mAh lithium-ion battery allows 11 hours (approx.) of long operation*.

* Typical operation with Tx (Hi): Rx: standby=5:5:90

Optional Speaker-Microphone, HM-213

The optional waterproof speaker-microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist. The radio floats even when the HM-213 is attached.

550 mW Audio Output

The IC-M25 provides a powerful 550 mW (typical) audio output and received voice can be heard loud and clear.

Other Features

・    IPX7 waterproof construction
       (1 m depth of water for 30 minutes)
・    4-step battery life indicator
・    Weather channel with weather alert
・    Dual/Tri-watch functions
・    Instant access to Ch 16 or programmable call channel
・    Favorite channel function
・    Monitor function opens noise squelch
・    Auto scan function
・    LCD auto backlighting
・    AquaQuake™ prevents audio degradation from a water-logged speaker
・    Supports 4-digit channels





Icom IC-M25 - Ny maritim radio fra Icom!

IC-M25 er en liten og kompakt marineradio som er full av smarte og innovative løsninger. Om ulykken skjer, og radioen havner i vannet, flyter den og blinker noe som gjør at det er lett å finne radioen.

IC-M25 er en liten og kompakt marineradio som er full av smarte og innovative løsninger. Om ulykken skjer, og radioen havner i vannet, flyter den og blinker noe som gjør at det er lett å finne radioen. Icom kaller dette Float’n Flash.

Radioen veier kun 220 gram noe som gjør den til en av markedets letteste og minste flytende VHF radio. Både knapper og display er bakgrunnsbelyst for enkelt betjening når det er mørkt.

IC-M25 lades med en standard USB-kontakt og lading kan skje både via en sigarett kontakt eller en powerbank. Som option finnes det en vanntett monofon noe som gjør at IC-M25 kan bæres i beltet. Radion flyter faktisk med monofonen montert på radioen.




General

Frequency range Tx 156.025–157.425 MHz
Rx 156.050–163.275 MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Power supply voltage 3.7 V DC nominal
Current drain Tx 2.3 A
Rx (Internal SP/External SP) 300 mA/200 mA (Max. audio)
Operating temperature range –20°C to +60°C; –4°F to +140°F
Antenna impedance 50 Ω
Dimensions (W×H×D)
(Projections not included)
56.6×134.2×30.5 mm;
2.2×5.3×1.2 in
Weight (approximately) 220 g; 7.8 oz
(With FA-SC59V and MB-133)


Transmitter

Output power 5 W (approximately)/1 W
Max. frequency deviation ±5.0 kHz
Frequency stability ±10 ppm
Spurious emissions –68 dBc typical
Adjacent channel power 70 dB
Residual modulation 40 dB


Receiver

Sensitivity 0.25 μV typical (at 12 dB SINAD)
Squelch sensitivity 0.25 μV typical (at threshold)
Adjacent channel selectivity 70 dB typical
Spurious response 70 dB typical
Intermodulation 70 dB typical
Audio output power
(at 10% distortion)
Internal SP 550 mW typical (12 Ω load)
External SP 300 mW typical (4 Ω load)


Applicable IP Rating

Ingress Protection Standard
Water IPX7 (Waterproof protection)
