Hytera HR655 - Portabel Batteridrevet Signalforsterker (UHF)
- Portabel batteridrevet signalforstekrer (repeater)
- DMR digital eller analog modulering
- Leveres med veggfeste fast monterin eller ryggsekk for portabel bruk
- Veier kun 2kg
- IP67 vanntett
- 12,5 Ah kraftig batteri gir ca 9 timer bruk ved normalbruk
- Konfigureres for bruk med nytt samband eller kundens eksisterende analoge eller digitale (DMR) radiosamband uansett merke.
INNENDØRS MONTERING

Flexible Deployment

IP Multi-site Connect

High Reliability

Smooth transition

Convenient Management

Ultra-lightweight Design

Long Battery Life

High Reliability
Specifications of HR65X
General | |
---|---|
Frequency Range | 400-470MHz |
Channel Capacity | 1024 |
Operating Voltage | DC: 14.4V±15% |
Battery | 12.5Ah |
Battey Life(50%Duty Cycle, High TX Power Transmit) | 25W: 4h 10W: 9h |
Current Drain(Standby) | ≤0.35A |
Current Drain(Receive) | ≤6A |
Dimensions(H×W×D) mm | 25W: 201mm x 211mm x 80.6mm 10W: 201mm x 211mm x 65.8mm |
Weight | 25W: 2.0kg 10W: 1.9kg |

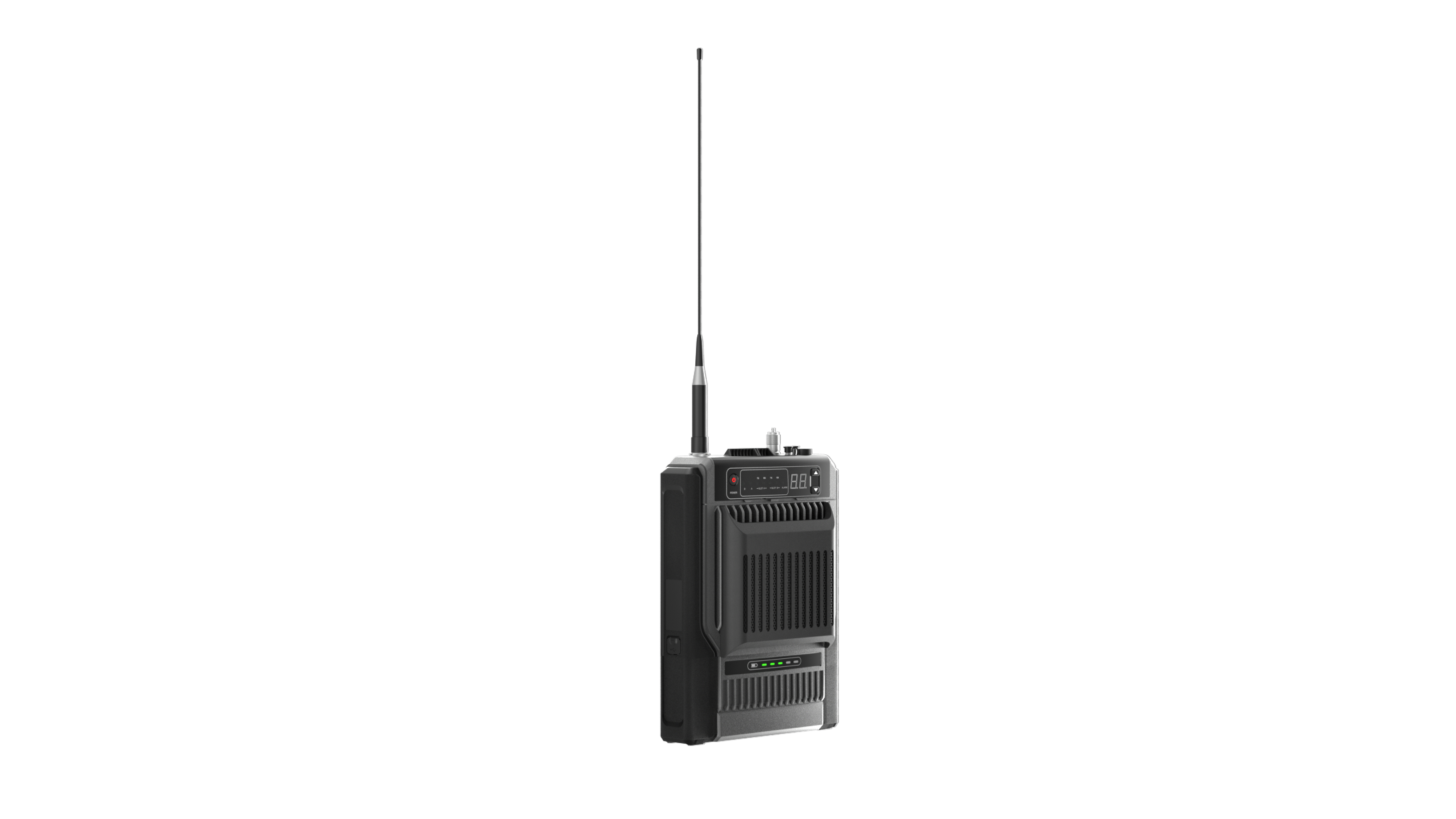

Hytera HR65X is the new generation compact DMR repeater designed to expand the communication range of your DMR radios. Compact and lightweight, the HR65X can be flexibly mounted to the wall or carried on the back by tailored accessories, uncompromising with on-site installation conditions. HR65X allows the communication connection anywhere you need. It is a top pick for hotels, office buildings, supermarkets, industrial parks, and mor
Hytera HR655 is the new generation business-ready digital repeater designed to expand the communication range of your DMR radios. High
performance and reliability ensures the HR655 provides the consistent, reliable and seamless voice and data communications your team needs
most. It is a top pick for hotels, office buildings, supermarkets, industrial parks, and more.
Compact and lightweight, the HR655 can be flexibly wall mounted or carried on the back by tailored accessories to meet various installation
requirements. The rugged design enables the HR655 to withstand harsh environments. HR655 allows communication connections anywhere
you need.
Two versions are supported:
1. High power 25 W version with an attached fan
2. Low power 10 W without fan
Hytera HR655 - Portabel Kompakt Digital & Analog Repeater (UHF, VHF)
Compact DMR Repeater
Hytera's HR655 is the new generation DMR repeater designed to expand the communication range of your DMR radios. Compact and lightweight, the HR655 can be flexibly mounted to the wall or carried on the back via tailored accessories. The HR655 allows the communication connection to be available anywhere you need. It is the top pick for hotels, office buildings, supermarkets, industrial parks and many more large scale industries.
FLEXIBLE DEPLOYMENT
The innovative structural design gives the repeater unprecedented appearance and lightweight performance. With its compact body and built-in duplexer, the HR655 has space conservation in mind.
For sites with challenging installation requirements the HR655 has mounting accessories to provide the right solution. As long as there is a wall or limited plane the HR655 can be easily mounted. For outdoor working the lightweight HR655 makes it effortless to carry on the back, thus greatly reducing the burden and cost.
For indoor coverage the HR655 with its super slim size and minimal site requirements can easily deliver digital signal services to each of your work floors
HIGH RELIABILITY
The HR655 is built to outperform in harsh environments. It
conforms to MIL-STD-810 G standards for ruggedness, and
is IP67 rated (for 10 W HR655) or IP54 (for 25 W HR655) for
dust and water intrusion.
Designed to operate on an AC power source or an optional
battery, the HR655 can keep running in the event of a
power outage. When it connects to the power supply, the
battery works as a backup. In case of an outage, the 12.5Ah
battery is ready to power the HR655 for up to 9 hours at
10 W output or four hours at 25 W output with a 50% duty
cycle. Moreover, benefiting from the latest fast charging
technology, the battery can be fully charged in just 3.5
hours. HR655 gives you a durable communication for a
longer time.
The HR655 features industry-leading RX sensitivity
and 25 W output power, easily increasing the effective
communication range for DMR radios. By covering more
area with fewer repeaters, the total cost of ownership is
consequently reduced. All key information is delivered to
every corner of your wider work space
The HR655 can operate in analogue mode, DMR mode,
or dynamic mixed digital/analogue mode, which
automatically switches between analogue and digital
based on the call it receives. This repeater is the ideal
solution for you to migrate smoothly from analogue to
digital with minimal disruption and investment.
From the small region single site DMR conventional
system, to large region IP Multi-site system, the
HR655 delivers powerful and stable communications
to every corner of your workplace. It can also
interconnect with other Hytera repeaters, building a
tailored network to meet your different requirements.
Thanks to the Extended Network Management System
(XNMS), you can remotely monitor the operation status
and alarms of the HR655 in real time, or update its
configuration in minutes. This dramatically reduces the
time and resources to maintain repeaters dispersed in
different places.
HR655 is a rugged, powerful and totally flexible DMR repeater which can be used either as a fixed or portable unit – part of Hytera’s next-generation H Series of DMR terminals. Whether mounted to a wall and powered by mains supply or carried in a backpack powered by battery, HR655 can connect radio users better than ever before with greater flexibility.
HR655 boasts some smart features which add genuine value to a communications system. The internal battery can be used to power the unit for up to 9 hours, and acts as a backup in case of mains supply failure. It can also operate in dynamic mixed mode between analogue and digital, switching based on the call type it receives.
Hytera H Series radios from Hytera are the next-generation range of digital radio communication products from the leading professional communications manufacturer in the world. H Series radios boast some of the most advanced features on the market, delivering unparalleled value to users who need it the most. Click here to learn more
Frequency Range | 400-470MHz |
Channel Capacity | 1024 |
Operating Voltage | DC: 14.4V±15% |
Battery | 12.5Ah |
Battey Life(50%Duty Cycle, High TX Power Transmit) | 25W: 4h 10W: 9h |
Current Drain(Standby) | ≤0.35A |
Current Drain(Receive) | ≤6A |
Dimensions(H×W×D) mm | 25W: 201mm x 211mm x 80.6mm 10W: 201mm x 211mm x 65.8mm |
Weight | 25W: 2.0kg 10W: 1.9kg |
