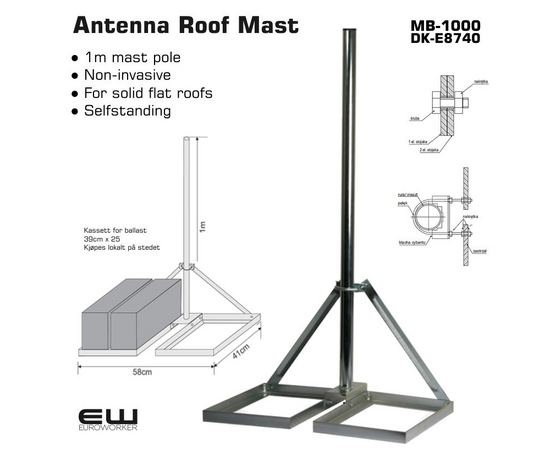

Antenna Roof Mast MB-1000 Selfstanding

Spør kundeservice
MB-1000 DK-E8740
2497 ,-
Eks mva Inkl mva
Tilgjengelig
+ −
Lagre i produktlisten
  • Selfstanding Roof Antenna Mast
  • The frames have to be ballasted with concrete blocks (shown on one side)
  • The MB-1000 mast is very convenient for mounting communication and WiFi antennas on flat, solid roofs.
  • The installer can use it where there is no possibility of attaching a typical mast to some elements on the roof (there are no suitable chimneys, walls etc.) and the surface of the roof cannot be penetrated by any stuff.
  • The mast cannot be used for mounting satellite dishes.
  • The mast hardware has to be ballasted with concrete blocks with dimensions of 38x24x12 cm, 38x20x12
    cm, or 30x24x12 cm, from 4 to 8 pieces.
  • The blocks inserted into the base have to be held together with a plastic strap.
  • The vertical steel tube is welded to a flange made of 3 mm steel sheet.
  • The flange is to be screwed with two steel frames made of solid angle sections (39x25 cm).
  • The steel components are galvanized (zinc plated).
  • The height of the mast is 1 m.
  • A plastic cap prevents water from entering the interior of the tube.

    Specifications:
    Height: 1 m
    Full size of the base: 58x41 cm
    Internal dimensions of each frame (for concrete blocks): 39x25 cm
    Concrete blocks have to be purchased separately in a local market
