Procom CXL 3-1LW - International Aircraft Band Base Station Antenna
Logg inn for å bruke denne tjenesten
- CXL 3-1LW
- CONNECTOR N-female
- WIND SURFACE 0.0162 m²
- WIND LOAD 21 N @ 160 km/h
- COLOUR Marine white
- MATERIALS Radome: Polyurethane-coated glass fibre Mounting bracket: Seawater resistant aluminium, epoxy-coated
- TOTAL HEIGHT Approx. 1.5 m
- WEIGHT Approx. 0.80 kg

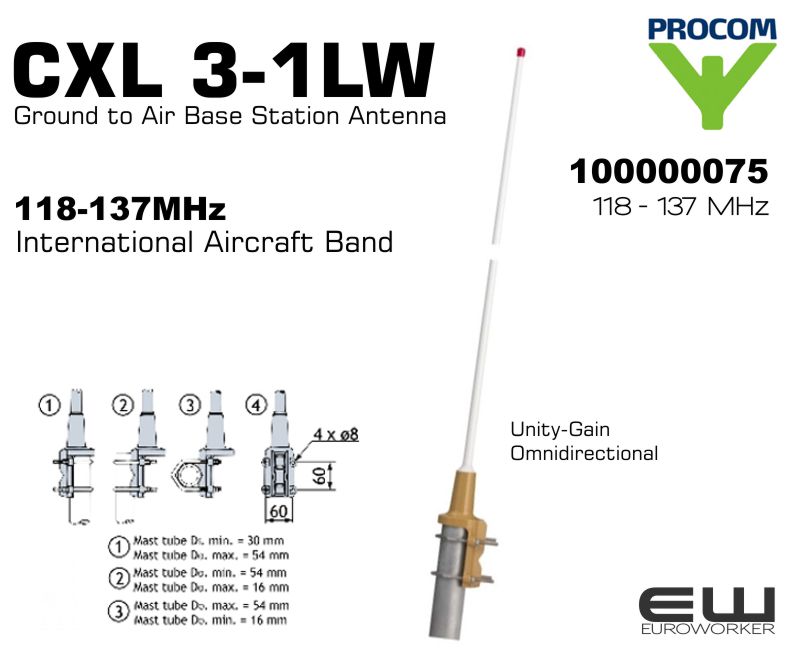

- MOUNTING On 16-54 mm dia. mast tube
- Unity-Gain, Omnidirectional Base Station Antenna for the
- International Aircraft Band

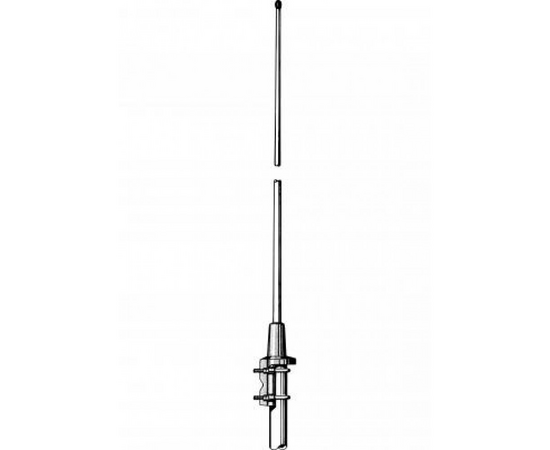

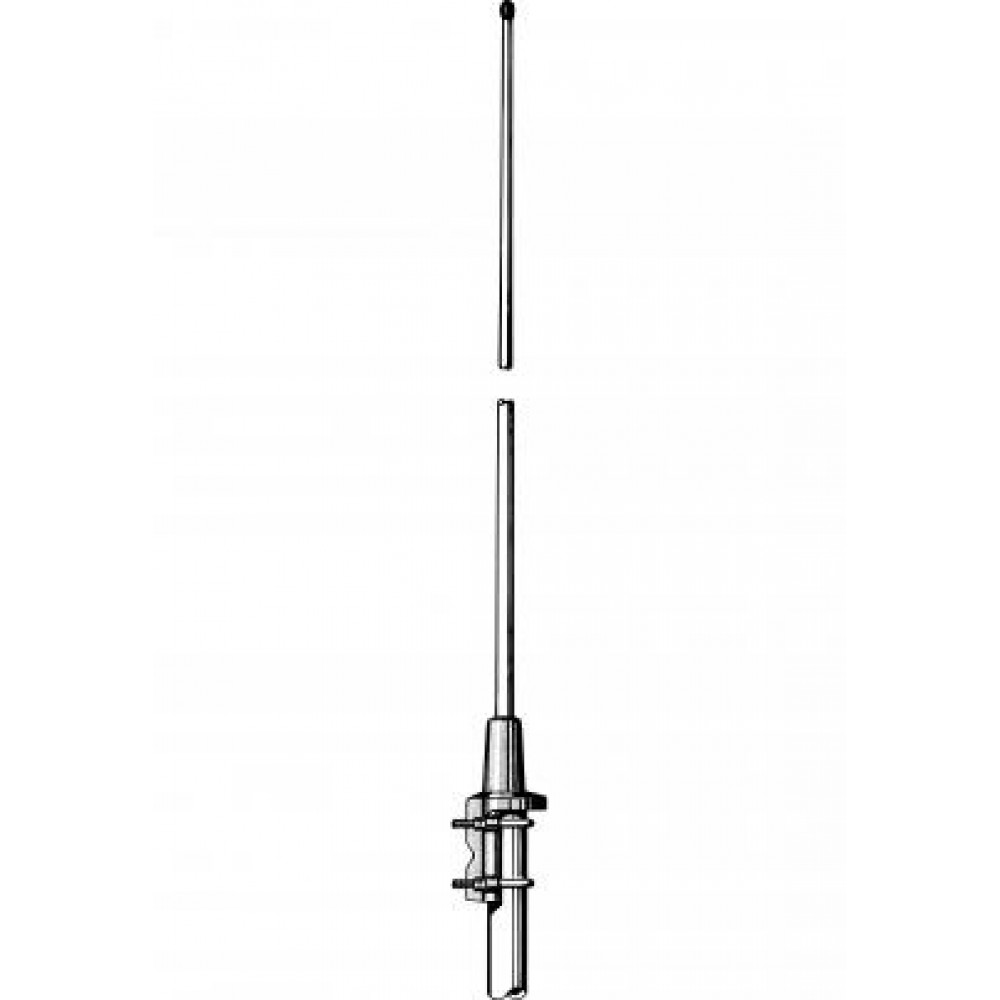

- CXL 3-1LW
- 0 dBd

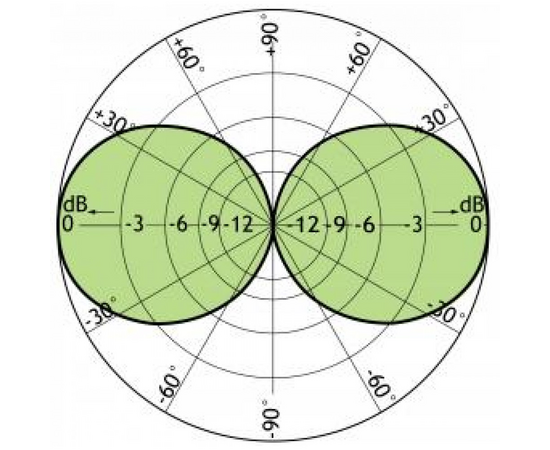

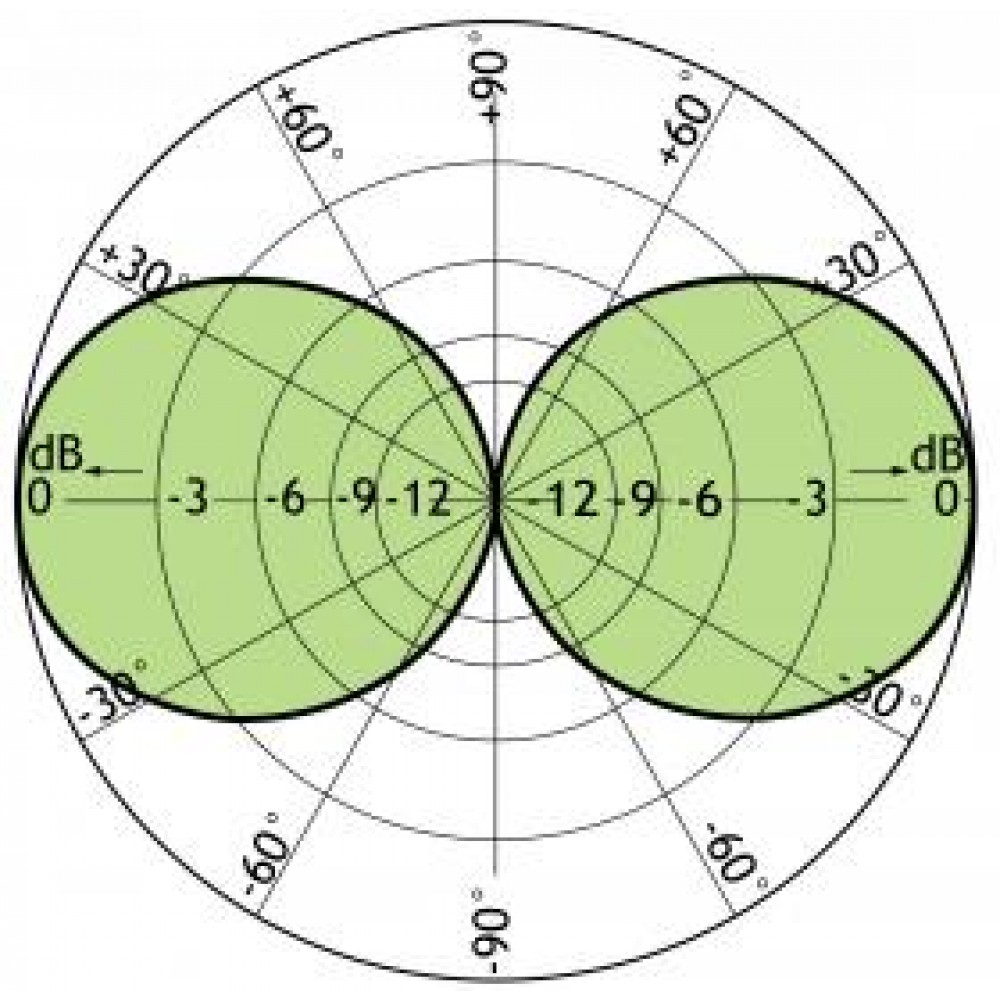

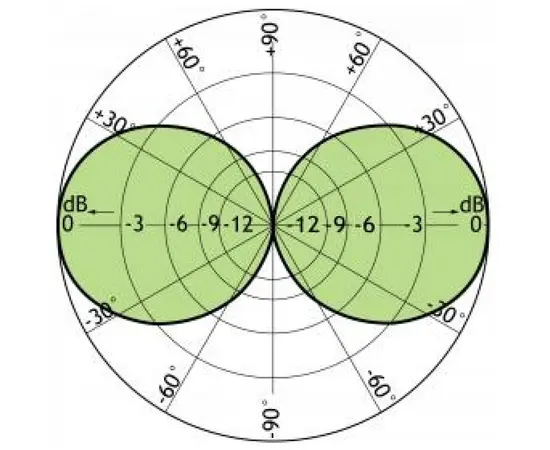

- Vertically polarised

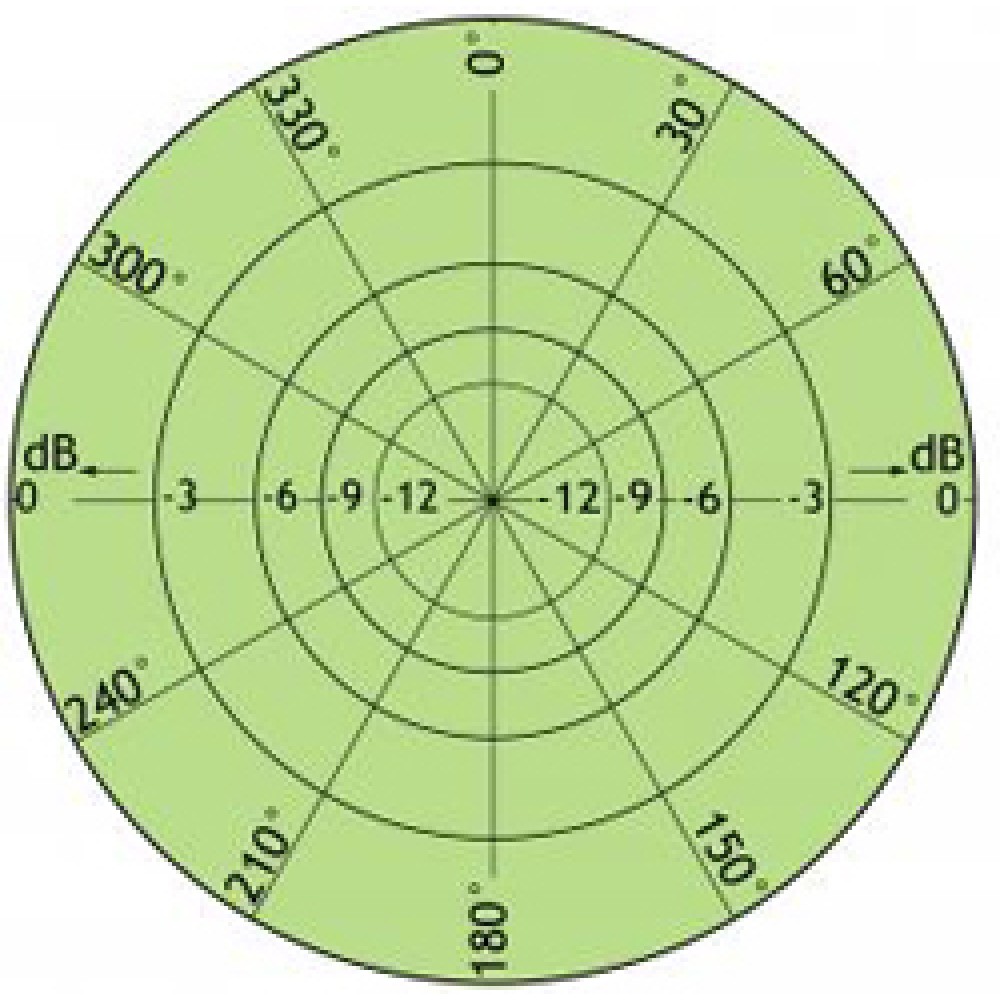

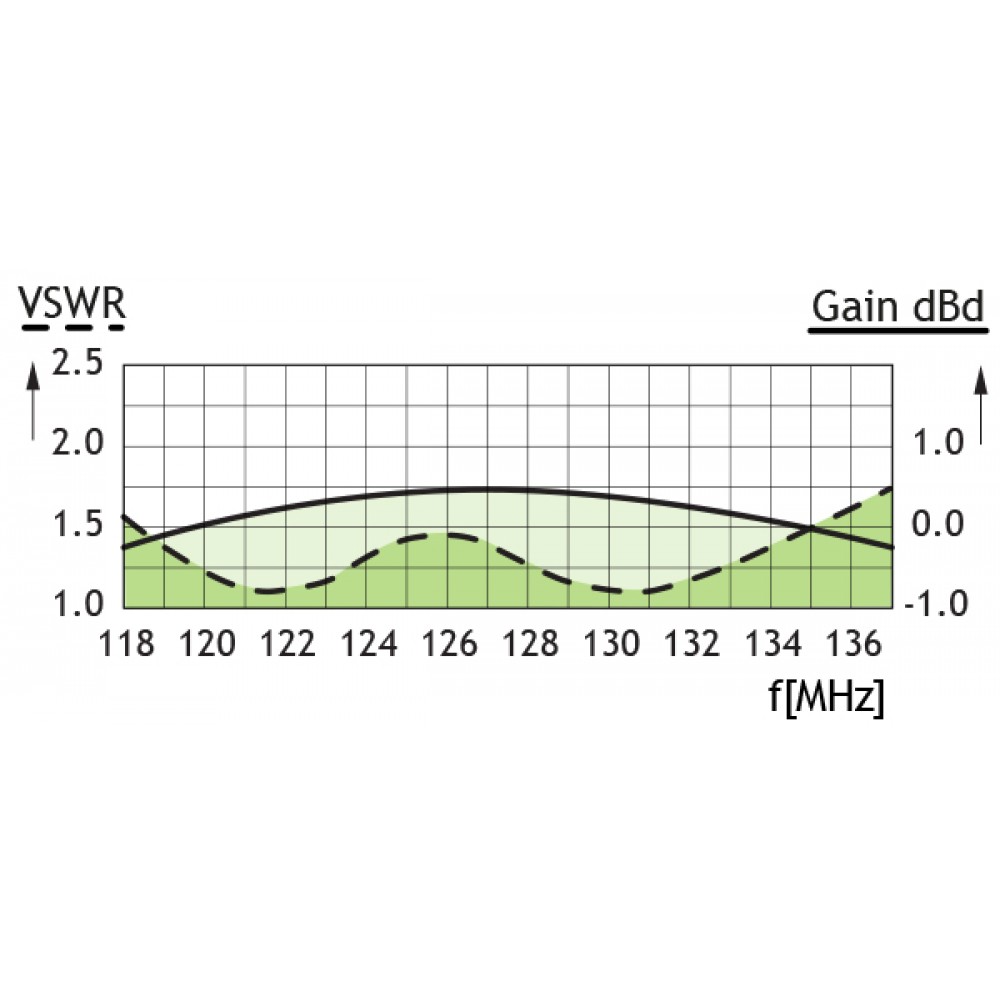

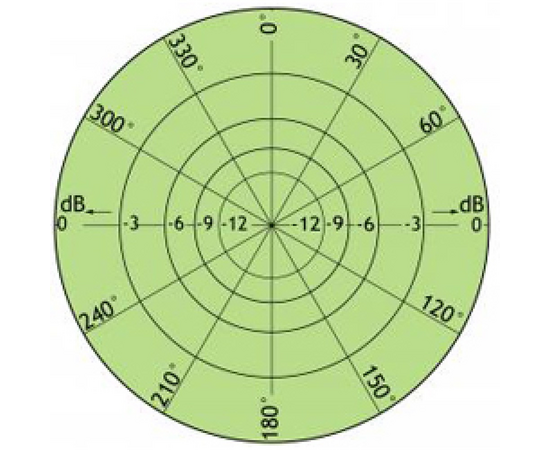

- Omnidirectional base station antenna for the 118 - 137 MHz civil aircraft band.

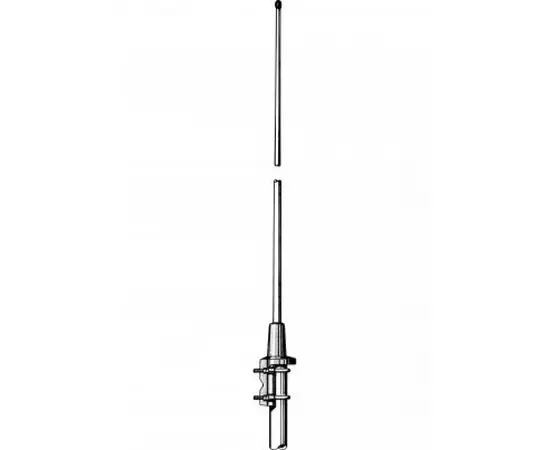

- The antenna is a broad-banded 1/2 λ dipole design, and it is
equipped with our type “LW” mast mount, which is a lightweight,
multi-purpose, epoxy-coated aluminium mounting bracket with
stainless steel fittings. - The antenna can be mounted on vertical or horizontal mast tubes, 16
to 54 mm in outer diameter. - Further, the construction of the mount makes it possible to lead the cable either along the inside or on the
outside of the mast tube. - A conical glass fibre tube with very low wind-loading completely encloses the carefully designed radiating element to ensure long
dependable service in all climates. - To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded.
- Consequently, the antenna shows a DC-short across the coaxial cable.
- CXL 3-1LW is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station antenna
PRODUSENT
PROCOM
