NB. Se link til monteringsveiledning Atex antenner - PDF

Godkjent for montering i Zone 2. The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2. The antenna is a broad-banded ½ λ dipole design. The accompanying U-bolts and fittings are made of stainless steel. The antenna element is sealed in high-quality glass fibre tube. All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.

MAX. RF INPUT POWER DUE TO MAX. EIRP IN ATEX ENVIRONMENT *
Group IIA 35.6 dBm (3.6 W)
Group IIB 33.3 dBm (2.1 W)
Group IIC 30.8 dBm (1.2 W)

MECHANICAL
CONNECTOR
TIGHTENING TORQUE
N-female
0.7 - 1.1 Nm
WIND SURFACE 0.023 m² / 0.25 ft²
WIND LOAD 29 N @ 160 km/h / 99.42 mph
MAX. WIND SPEED 200 km/h / 124.27 mph
COLOUR Blue (RAL 5015)
MATERIALS
Radome: Polyurethane-coated glass fibre
Mounting bracket: Stainless acid-proof steel (AiSi 316L)
U-bolt and fittings: Stainless steel (AiSi 304L)
TOTAL HEIGHT Approx. 1.5 m / 59.06 in.
DIA. IN TOP END 17 mm / 0.67 in.
DIA. IN BOTTOM END 23 mm / 0.91 in.
WEIGHT Approx. 1.25 kg / 2.76 lb.
MOUNTING
TIGHTENING TORQUE
On 16 to 54 mm / 0.63 x 2.13 in. dia. mast tube
3 Nm
ATEX MARKING II 3G Ex nA IIC T6
ENVIONMENTAL
TEMP. RANGE -30° C → +60° C
IP RATING IP 66
* See the ATEX Product Manual (safety and mounting instructions)
and related EU DECLARATION OF CONFORMITY ATEX Directive
2014/34/EU.

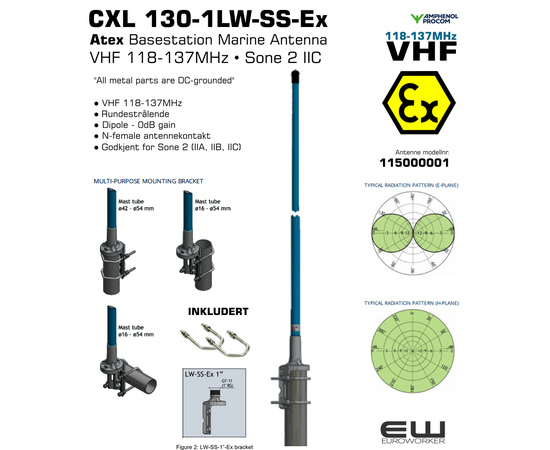

CXL 130-1LW-SS-Ex
ATEX certified, 0 dBd, Omnidirectional Base Station Antenna for the
International 118 - 137 MHz Band in Hazardous areas
CXL 130-1LW-SS-Ex is a 0 dBd, vertically polarized, omnidirectional
base station antenna witch covers the 118 - 137 MHz band in
Hazardous areas.
The antenna is specified as an ATEX antenna for use in zone 2 in
potentially explosive areas.
DESCRIPTION
Before installing the antenna, please read the ATEX Product
Manual carefully.
The antenna is suitable for use in gas groups IIA, IIB and IIC in
zone 2.

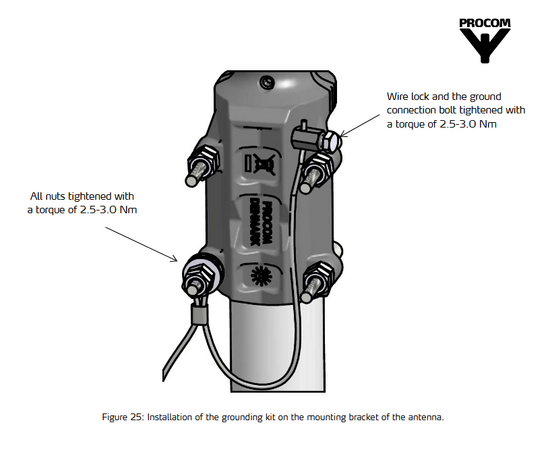

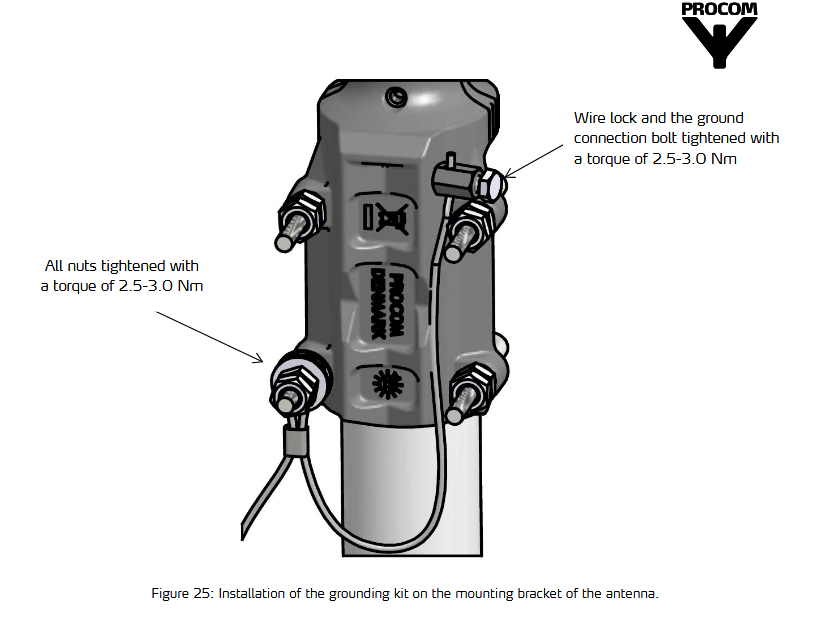

It’s only necessary to install an ATEX grounding Kit on the LW-SS-
Ex bracket, when the point of installation has a different electrical
potential than the system.
The antenna is a broad-banded ½ λ dipole design.
The accompanying U-bolts and fittings are made of stainless steel.
The antenna element is sealed in high-quality glass fibre tube.
All metal parts in the antenna are DC-grounded. Consequently,
the antenna shows a DC-short across the coaxial cable.

ORDERING DESIGNATIONS
TYPE PRODUCT NO.
CXL 130-1LW-SS-Ex 115000001
ACCESSORIES

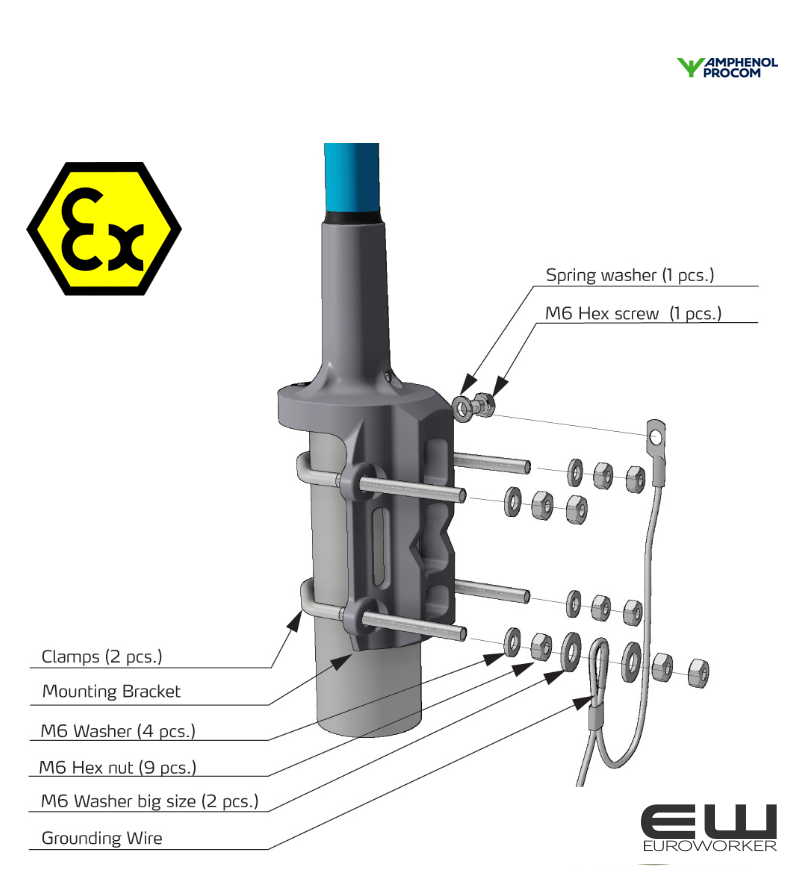

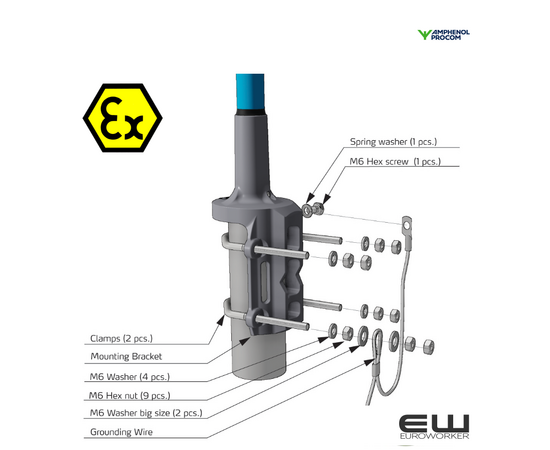

ATEX grounding kit 115000100
SPECIFICATIONS
ELECTRICAL
MODEL CXL 130-1LW-SS-Ex
ANTENNA TYPE ½ λ coaxial dipol, broad-banded
FREQUENCY 118 - 137 MHz
IMPEDANCE Nom. 50 Ω
RADIATION Omnidirectional
POLARIZATION Vertical
GAIN 2 dBi 0 dBd
BANDWIDTH 19 MHz
SWR ≤ 1.75
MAX. RF INPUT POWER DUE TO MAX. EIRP IN ATEX ENVIRONMENT *
Group IIA 35.6 dBm (3.6 W)
Group IIB 33.3 dBm (2.1 W)
Group IIC 30.8 dBm (1.2 W)
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
HCM CODE HCM000ND00, 040DE00
