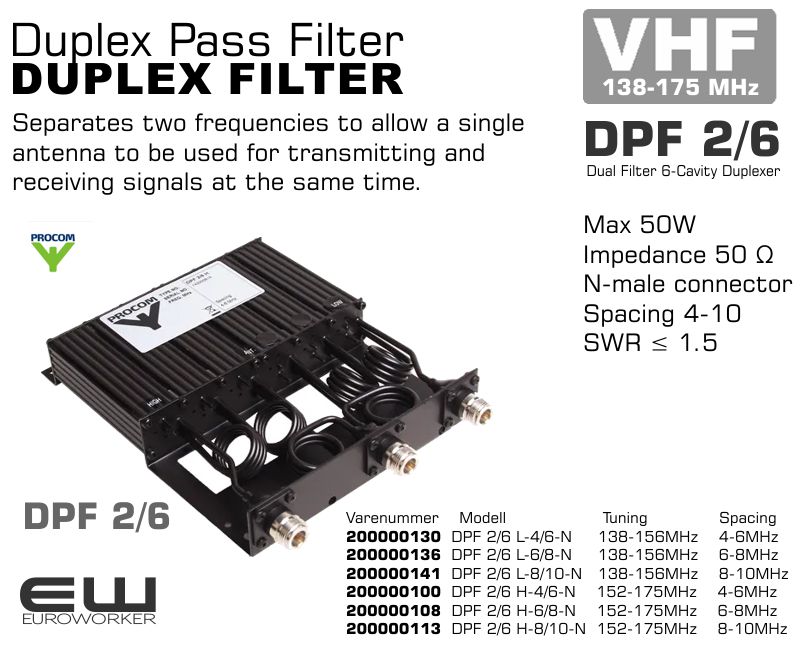

Procom DPF 2/6 VHF DUPLEX FILTER (138-175MHz)
Logg inn for å bruke denne tjenesten
- Velg modell fra menyen:
- Varenummer Modell Tuning Spacing
200000130 DPF 2/6 L-4/6-N 138-156MHz 4-6MHz
200000136 DPF 2/6 L-6/8-N 138-156MHz 6-8MHz
200000141 DPF 2/6 L-8/10-N 138-156MHz 8-10MHz
200000100 DPF 2/6 H-4/6-N 152-175MHz 4-6MHz
200000108 DPF 2/6 H-6/8-N 152-175MHz 6-8MHz
200000113 DPF 2/6 H-8/10-N 152-175MHz 8-10MHz
- Varenummer Modell Tuning Spacing
- Separates two frequencies to allow a single antenna to be used for transmitting and receiving signals at the same time.
- Serie: DPF 2/6 (Dual Filter 6-Cavity Duplexer)
- For repeaters and duplex radio
- This duplexer is delivered in a low band version type DPF 2/6 L, tunable within 138 - 156 MHz and a high band version type DPF 2/6 H, tunable within 152 - 175 MHz.
- These models are again delivered in 3 submodels, each dedicated to work with a certain duplex spacing.
- The DPF 2/6... models are primarily intended for equipment, where the TX and RX operate on single frequencies, but they can also, however with slightly reduced data, be used where the TX and RX operate on several channels, i.e. within a certain port bandwidth.
- In the last case, factory-tuning is recommended. The filter has very small physical dimensions owing to the use of high-Q, temperature compensated helical resonators.
- The housing is made of extruded aluminium, the chassis of passivated steel, and teflon insulation has been applied in the rigid coaxial cables and in the connectors.
- The filter is coated with black vinyl to prevent corrosion
- When ordering, please use the table above to select the appropriate ordering designation for the desired filter type.
- If duplex TX and RX frequencies are stated when ordering, the duplexers are delivered factory adjusted.
- If TX and RX frequencies are not stated, the filters are delivered non-adjusted.
- Special configurations of this filter type may be quoted on request.
- For instance, the filter can be delivered with other connector types or with flying leads (RG 316 coaxial cable) terminated with connectors or for soldering- connection
