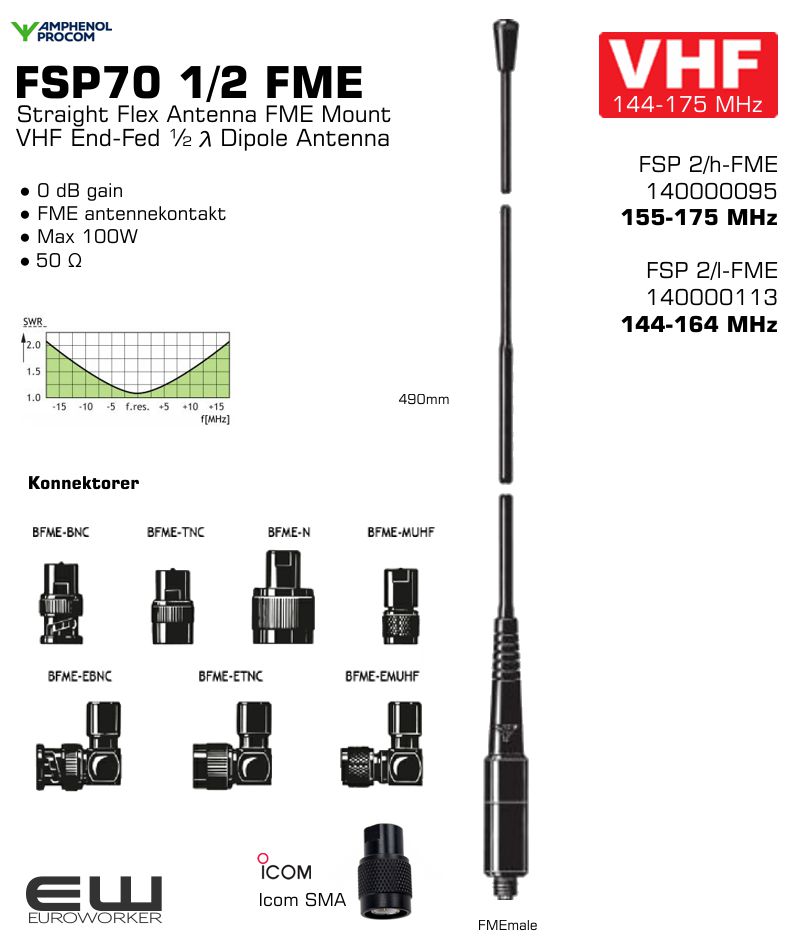

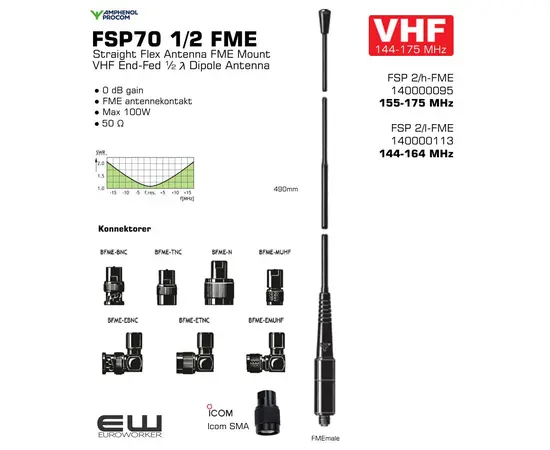

• Procom FSP70 FME ½ VHF Portabel End-Fed ½ λ Dipole Antenna
• Straight Flex Antenna FME Mount
• VHF End-Fed ½ λ Dipole Antenna

FSP 2/h-FME
140000095
155-175 MHz

FSP 2/l-FME
140000113
144-164 MHz

“StraightFlex” Antenna with Universal FME-Connection
System for Portable Equipment in the 2 m Band
DESCRIPTION
Highly flexible, polyethylene covered StraightFlex steel wire.
Full size ¼ λ antenna whip.
Highest quality materials in an elegant and slender design.
Delivered factory tuned and tested to ensure minimum SWR and
optimum performance.
Provided with universal FME-connection system for optimum flexibility
and easily exchangeable connectors.
Designed for use with the following of Procoms line of black FME-
connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-
TNC, BFME-N, BFME-EBNC and BFME-ETNC

SPECIFICATIONS
ELECTRICAL
MODEL FSP 2/...-FME
ANTENNA TYPE ¼ λ antenna for portable equipment
FREQUENCY 2 m band covered by two models
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 0 dB (equal to a ¼ λ portable antenna)
BANDWIDTH ≥ 20 MHz @ SWR ≤ 2.5
SWR < 2 when mounted directly on portable equipment
MAX. POWER 100 W
MECHANICAL
MATERIALS Polyethylene covered flexible steel wire
Black-chromed brass
COLOUR Black
TOTAL HEIGHT Approx. 490 mm (dep. on type)
WEIGHT Approx. 35 g
CONNECTOR FME (female) (Exchangeable BFME-connectors
to be ordered separately
