LW-SS-1"
Universal Stainless Steel Mast Mounting Clamp for Antennas Based
on Mounting on 1” Threaded Tube

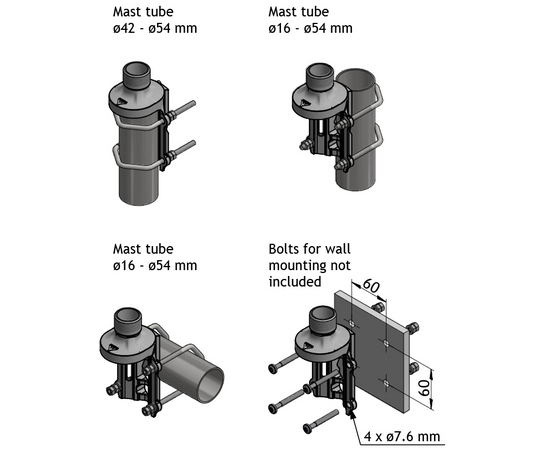

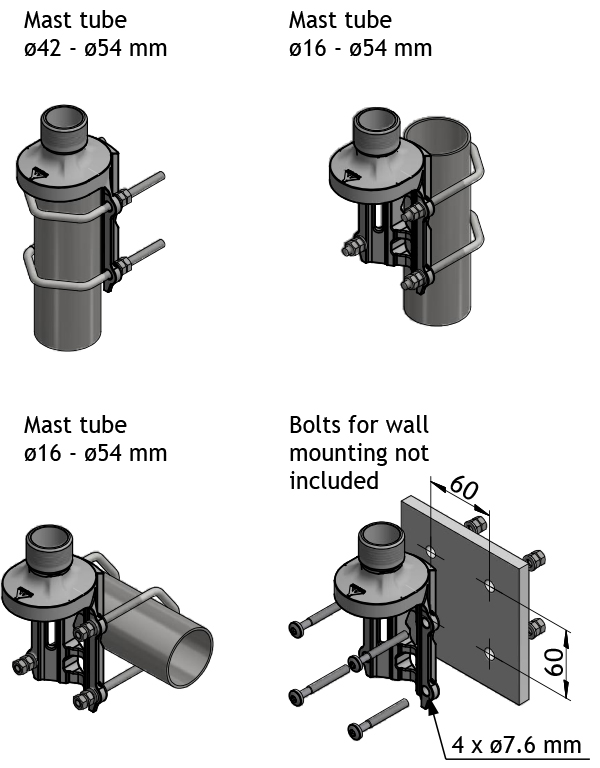

Using the LW-SS-1” universal mast mounting clamp all antennas
specifically designed for mounting on 1” water pipe can be
mounted on any kind of horizontal or vertical supporting mast
tube, as long as the outer diameter of the tube is within 16 to 54
mm.
The mounting bracket is made of stainless steel which makes it
ideal for marine environments.

DESCRIPTION
Inside the marine sector the 1” water pipe mounting system for
antennas has gained worldwide acceptance.The antennas are
equipped with a revolving nut, which fits 1” RG (G1” - 11) threaded
water pipe.
The construction of the clamp makes it possible to run the
downlead cable either along the inside or on the outside of the
mast tube.
Available as ATEX version, when equipotential bonding is not
obtained through the mounting bracket and the need for a
grounding kit is present.
Using the GP adaptor (to be ordered separately) the LW-SS-1" can
be used for GP antennas with GP heads.
The LW-SS-1” mounting clamp is a member of a complete family
of different mounting clamps for 1”-pipe-mount antennas. Below
the complete programme is shown. Using the LW-SS-1” or one of
these accessory items, a vast majority of all installations can be
undertaken.

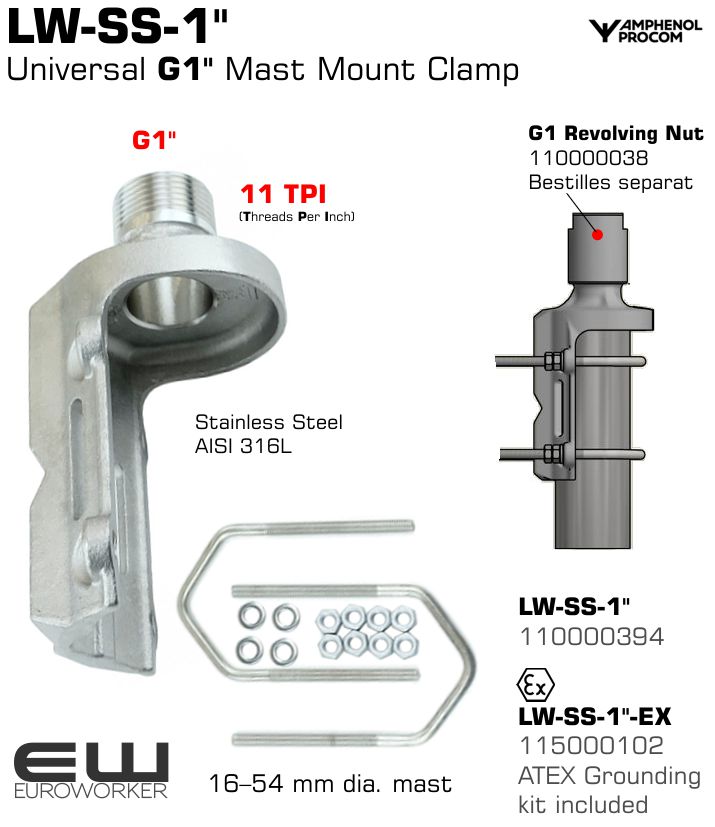

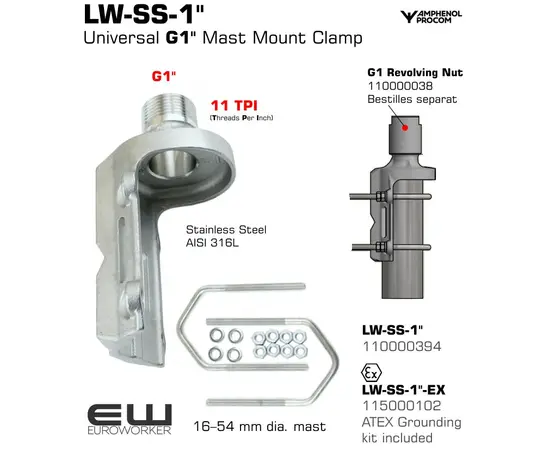

Procom LW-SS-1" - Universal G1" Mast Mount Clamp (110000394)

Stainless Steel AISI 316L

G1 Revolving Nut 110000038  Bestilles separat

Atex versjon: LW-SS-1"-EX 115000102 (ATEX Grounding kit included)
