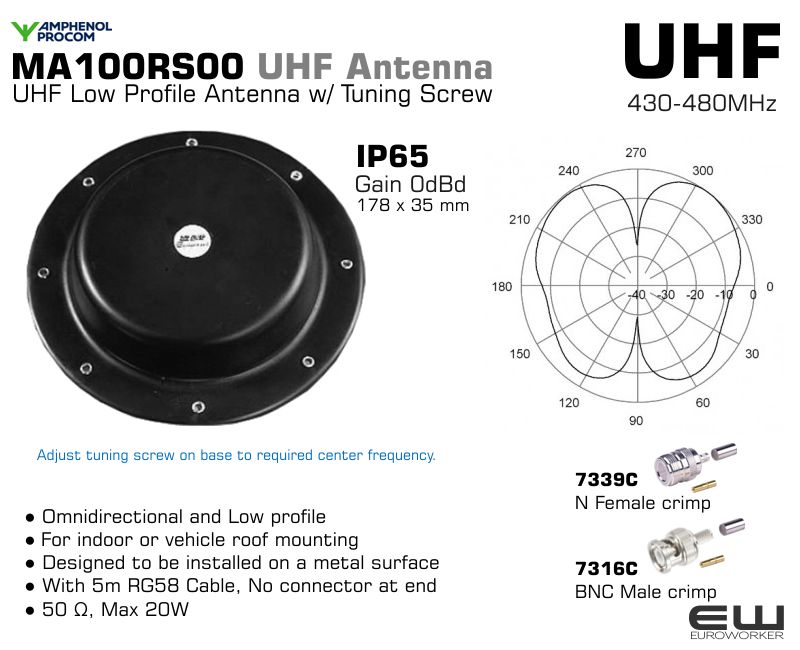

An omnidirectional, low profi le, fully shrouded UHF antenna for indoor or vehicle
roof applications. Although designed to be installed on a metal surface, good
performance can also be achieved on non-metallic surfaces. The antenna is
user-tuned by adjusting a screw under the base to achieve best performance at
the operating frequency. This antenna is supplied with 5m coaxial cable with no
connector on the end. Please order the desired connector style separately

Electrical Specifications
Frequency Range*: 430...480 MHz
Gain: 0 dBd
VSWR: <1.5:1
Maximum Power: 20 W
Polarisation: Linear, Perpendicular to Base
Horizontal Beamwidth: 360°
Vertical Beamwidth: 80°
Impedance: 50 ohms
Termination: 5m RG58 Cable, No connector at end

Mechanical Specifications
Materials: Aluminium base and black polypropylene
radome
Dimensions: 35 mm Height x 178 mm Dia.
Weight: 0.45 kg
Mounting Bracket: 8 x 3.3 mm dia holes in base plate provided
for mounting.
