• Rundstrålende bredbånd antenne konstruert for maritimt og utendørs bruk
• Seawater resistant and vibrationproof.
• Perfect for 2.4 GHz Wi-Fi networks.
• Provided with the sturdy “LW” mast mount for mounting on 16–54 mm mast tube.
• The accompanying U-bolts and fittings are made of stainless steel.
• N-female antenna connector, use antennacable with N male connector

DESCRIPTION

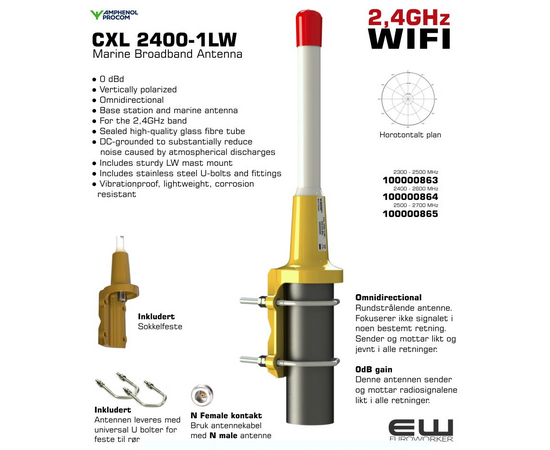

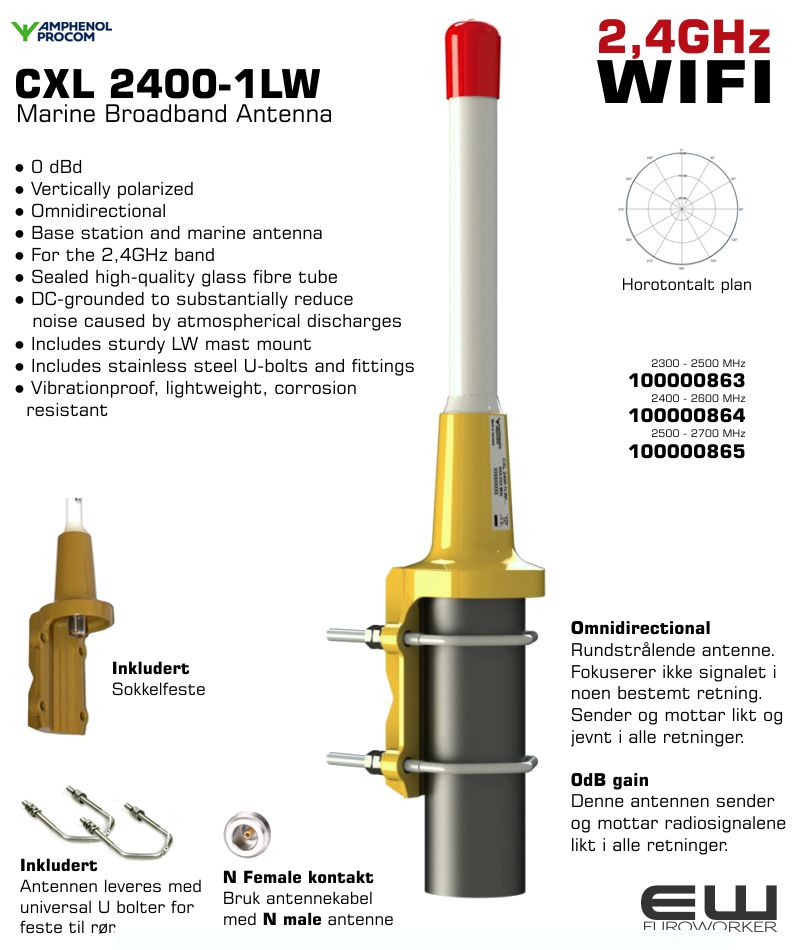

CXL 2400-1LW is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna for the 2400 MHz band.
The carefully designed, broad-banded antenna element is sealed in a high-quality, glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
The cable can be led either on the outside or along the inside of the mast tube.
Large bandwidth with respect to both VSWR and gain.
Highly suitable for duplex operation with large spacing between the Tx and the Rx
frequencies.
The antenna element is sealed in a high-quality, conical glass fibre tube.
The CXL 2400-1LW/... is a vibration-proof, lightweight, slim-line, corrosion resistant,
modern style base station and marine antenna.
SPECIFICATIONS
Electrical
Model CXL 2400-1LW/...
Frequency Models within 2300 - 2700 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 70°
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
HCM Code(s) HCM000ND00, 035DE00
Mechanical
Connection(s) N(f)
Materials
Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant
aluminium, epoxy-coated
Clamps : Stainless steel
Colour White (RAL 9003)
Wind Area 0.012 sq. m / 0.13 sq. ft
Wind Load 12 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Dia. At Bottom End 23 mm / 0.91 in.
Height Approx. 370 mm / 14.57 in.
Weight Approx. 0.55 kg / 1.21 lb.
Mounting On 16 - 54 mm / 0.63 - 2.13 in. dia. mast
tube
