Procom UHF (420-470 MHz) Marine Baseantenne CXL 70-1LW/h (Rundstrålende)
Logg inn for å bruke denne tjenesten
- Procom UHF baseantenne
- Velg modell fra menyen:;
- CXL 70-1LW/l - 110000087 - 380 - 430 MHz
- CXL 70-1LW/h - 110000083 - 420 - 470 MHz
- CXL 70-1LW/hs - 110000085 - 460 - 510 MHz
- Omni
- Modell CXL 70-1LW/h
- 420-470 MHz
- Coaxial
- 0 dBd
- Broad-banded base station (also marine)
- Lightweight bracket for mounting on mast tubes 16–54 mm in outerdiameter.
-
CXL 70-1LW/h, 420-470 MHz

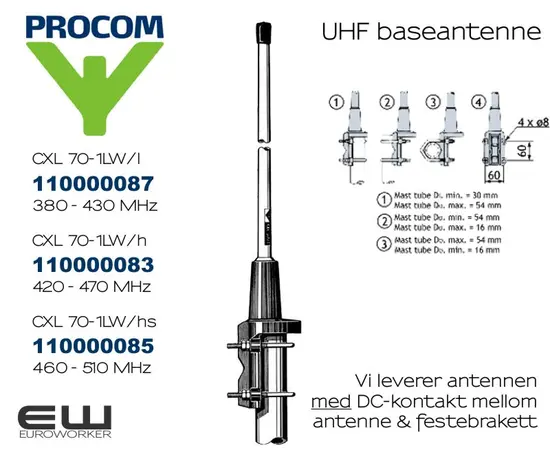

Unity-Gain, Omnidirectional Base Station and Marine Antenna for the 450 MHz Band CXL 70-1LW/… is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna which covers the 450 MHz band in three models. The carefully designed, broadbanded ½ λ-dipole radiating element is made of brass tube and sealed in a high-quality conical glass fibre tube with low wind-load.Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel. To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter. The cable can be led either on the outside or along the inside of the mast tube. Large bandwidth with respect to both SWR and gain.
