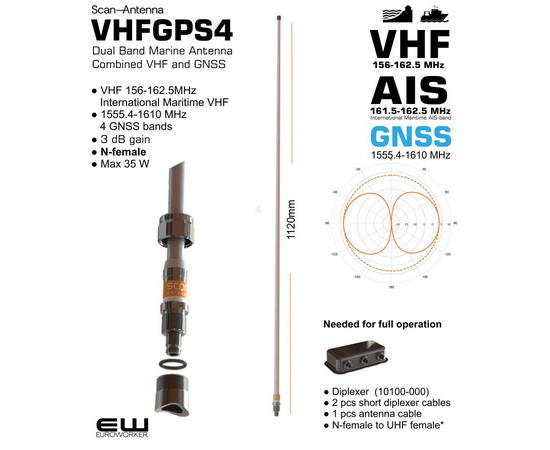

Scan Antenna VHFGPS4 Dual Band Marine Antenna Combined VHF and GNSS (11604-722)

Spør kundeservice
11604-722 - 10100-000
Ta kontakt for oppdatert pris
Eks mva Inkl mva
Tilgjengelig
Lagre i produktlisten
  • 3 dB Dual Band Marine VHF and GNSS Glass Fibre Antenna 1.1 m
  • Denne spesial antennen er bestillingsvare og leveres i en rekke versjoner (se nedenfor)
  • Ta kontakt for tilpasset tilbud
  • Dual band antenna combining the International Maritime VHF band and four satellite navigation/positioning systems.
  • The antenna is especially made for maritime identification systems, e.g. AIS.
  • High quality dual-band VHF and active GNSS antenna for professional use
  • 4 satellite navigation/positioning GNSS systems included: GPS, GLONASS, BeiDouand Galileo
  • Single down-lead antenna cable design with below deck diplex filter for easier installation

ELECTRICAL SPECIFICATIONS

  • VHF Frequency 156 - 162.5 MHz
  • 1555.4 - 1610 MHz (International Maritime VHF-band + 4 GNSS bands)
  • Bandwidth VHF: 6.5 MHz
  • GNSS: 54.6 MHz
  • Antenna Type VHF: Full 1/2 λ dipole
  • GNSS: Chip - no groundplane needed
  • Impedance 50 ohm
  • Vswr VHF: < 2.0:1
  • Satellite System GPS, GLONASS, BeiDou and Galileo
  • Polarisation Vertical
  • Gain 0 dBd, 2.1 dBi
  • Radiation Pattern Omni-directional
  • Max. Input Power VHF: 35 W
  • Lna Gain GNSS: Typ. 26 dB
  • Supply Voltage GNSS: 2.5 - 5.5 VDC (Fed via coax connection cable and diplexer from receiver)
    Power Consumption
  • Average GNSS: Approx. 20 mW @ 5 V
  • Antistatic Protection Direct Ground (DC-short)

MECHANICAL SPECIFICATIONS

  • Color White and chrome
  • Length 1120 mm
  • Weight 520 g
  • Mounting On 1" threaded pole (G1"-11 thread) with Revolving Nut Kit or on optionally brackets
  • Mounting Place On mast or deck
  • Materials PU-painted glass fibre, pcb, PTFE, copper and chrome plated solid brass
  • Survival Wind Speed 55 m/s (125 mph)
  • Operating Temperature -40C to +70C
  • Connector N-female Cable
  • 2 pcs short diplexer cables and 1 pcs antenna down-lead cable is needed for the installation of the system.
  • The short diplexer cables for the GNSS receiver and the VHF-radio are included in some kits see "ORDERING INFORMATION").
  • The downlead cable between the antenna and the diplexer must be ordred seperately.
  • Ingress Protection IP66
  • Serial no. On product label

ORDERING INFORMATION

  • 11604-000 VHFGPS4 Antenna only - bulk packaging (No diplexer)
  • 11604-001 VHFGPS4 Antenna only - in polybag (No diplexer)
  • 11604-002 VHFGPS4 Antenna only - in carton tube (No diplexer)
  • 11604-431 VHFGPS4 Antenna only + 1" Nut - in polybag (No diplexer)
  • 11604-432 VHFGPS4 Antenna + 1" Nut - in carton tube (No diplexer)
  • 11604-701 VHFGPS4 KIT Antenna with diplexer - in polybag
  • 11604-702 VHFGPS4 KIT Antenna with diplexer - in carton tube
  • 11604-711 VHFGPS4 KIT Antenna with diplexer and 1" nut - in polybag
  • 11604-712 VHFGPS4 KIT Antenna with diplexer and 1" nut - in carton tube
  • 11604-721 VHFGPS4 KIT Antenna with diplexer, cable kit and 1" nut - in polybag
  • 11604-722 VHFGPS4 KIT Antenna with diplexer, cable kit and 1" nut - in carton tube
  • 10100-000 Diplexer only - bulk packing C15 016 Diplexer Cable Kit only - in polybag

VHFGPS4

Scan Antenna VHFGPS4 Dual Band Marine Antenna Combined VHF and GNSS Scan Antenna Diplexer 10100-000
