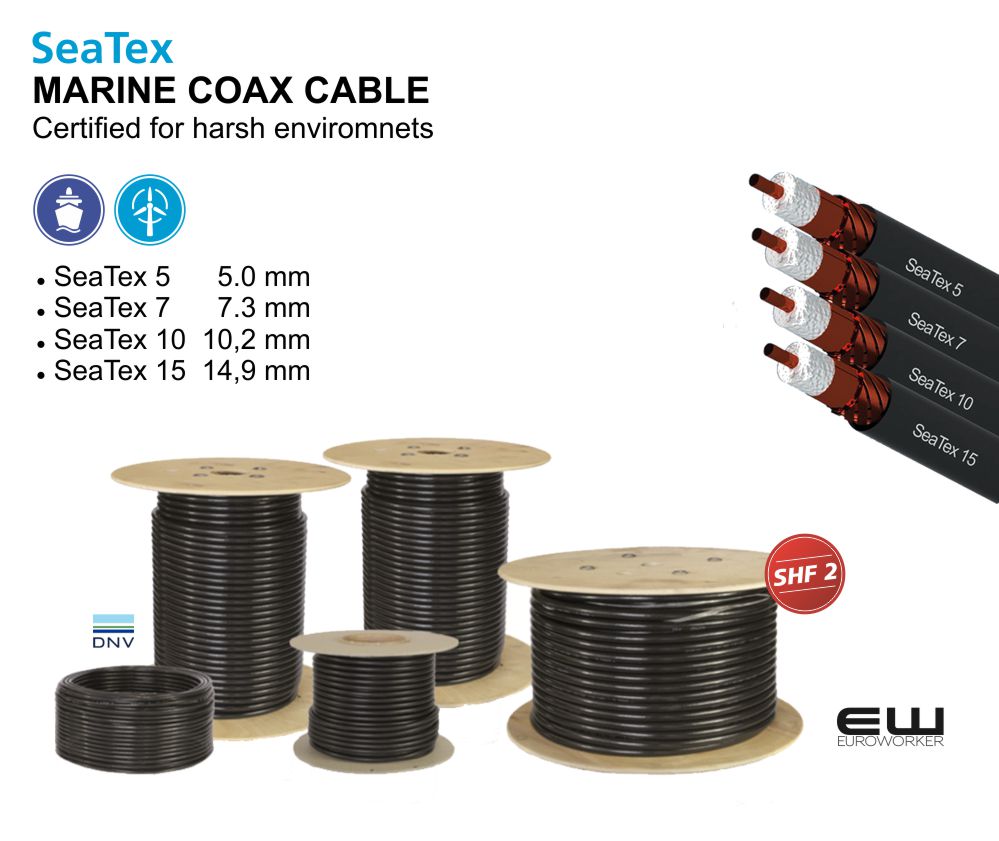

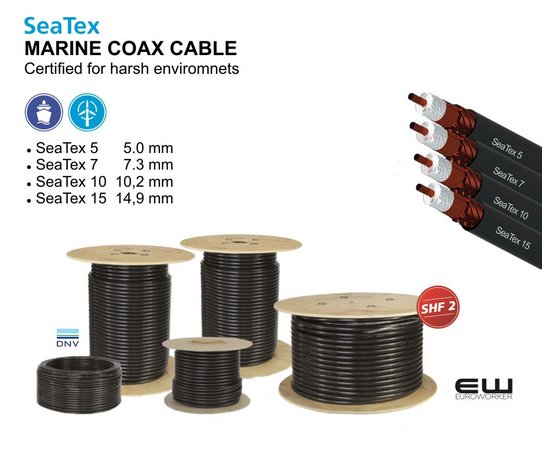

MARINE COAX CABLE
Certified for harsh enviromnets
Ta kontakt for type, lengder og tilbud

● SeaTex 5 5.0 mm
● SeaTex 7 7.3 mm
● SeaTex 10 10,2 mm
● SeaTex 15 14,9 mm

SeaTex 15 is a low-loss, halogen-free, highly flexible
communication coaxial cable specially designed for marine
and offshore applications. It holds the worldwide SHF
shipbuilding approval (DNV certificate) and is suitable for
deployment on ships, oil platforms, drilling rigs, and wind
turbines. The outer jacket of SeaTex 15 is made of a special
thermoplastic copolymer (SHF2), providing the cable with
high resistance to heat, cold, oils, saltwater, UV radiation,
and weather conditions, ensuring a long lifespan in harsh
environments.
Based on the proven Ecoflex 15, SeaTex 15 features excellent
attenuation values, and its flexibility and small bending
radius allow for installation in tight spaces. Therefore,
SeaTex 15 combines the advantages of Ecoflex coaxial
cables with the requirements of maritime applications.
The product is specified up to 6 GHz and can be used in a
temperature range of -55 to 85°C.

Key features
Diameter 14.6 ± 0.2 mm
Impedance 50 ± 2 Ω
Attenuation at 1 GHz/100 m 9.80 dB
f max 6 GHz
Characteristics
· Conductor/screen material according to DIN EN 13602 Cu-ETP-R
· Screen material according to DIN EN 13602 Cu-ETP-A
· Insulation material according to ISO 6722-1 Chap. 5.14, Class “A”,
bending diameter 120 mm
· Jacket material according to IEC 60092-360 (IEC 60092-359) SHF2
· Wall thickness of the cable jacket according to IEC 60092-376
· Flame-retardant according to IEC 60332-3-22 (Cat. A)
· Flame-retardant according to IEC 60332-1-2
· Oil-resistant according to EN 60811-2-1 (24 hrs/100 °C)
· RoHS compliant (Directive 2011/65/EC & 2015/863/EU RoHS 3)
· Fire-resistant, low smoke, halogen-free (LSZH)
· Corrosivity of the combustion gases according to IEC 60754-2
· Smoke density according to IEC 61034
· UV-resistant
· Approved for marine and offshore applications
· DNV certificate no. TAE00001JX

Technical Data
Inner conductor stranded (Cu) copper wire
Inner conductor Ø 4.5 mm (7 × 1.5 mm)
Dielectric foamed cellular polyethylene (PE) with skin
Dielectric Ø 11.3 mm
Outer conductor 1 overlapping copper (Cu) foil
Shielding factor 100 %
Outer conductor 2 Copper (Cu) shield braiding of bare copper
wires
Shielding factor 75 %
Outer conductor Ø 12.1 mm
Jacket special thermoplastic copolymer (SHF2) black
Weight 262 kg/km
Min. Bending radius 4 × Ø single, 8 × Ø repeated
Temperature range -55 to +85 °C transport & fixed installation
-40 to +85 °C mobile application
Pulling strength 1300 N
Electrical Data at 20 °C
Capacitance (1 kHz) 78 nF/km
Velocity factor 0.85
Shielding attenuation 1 GHz ≥ 90 dB
DC-resistance inner conductor ≤ 1.5 Ω/km
DC-resistance outer conductor 5.0 Ω/km
Insulation resistance ≥ 10 GΩ*km
Test Voltage DC (wire/screen) 7 kV
Max. voltage 5 kV
