Sepura STP8X Billader 12&24V (Atex)
Logg inn for å bruke denne tjenesten

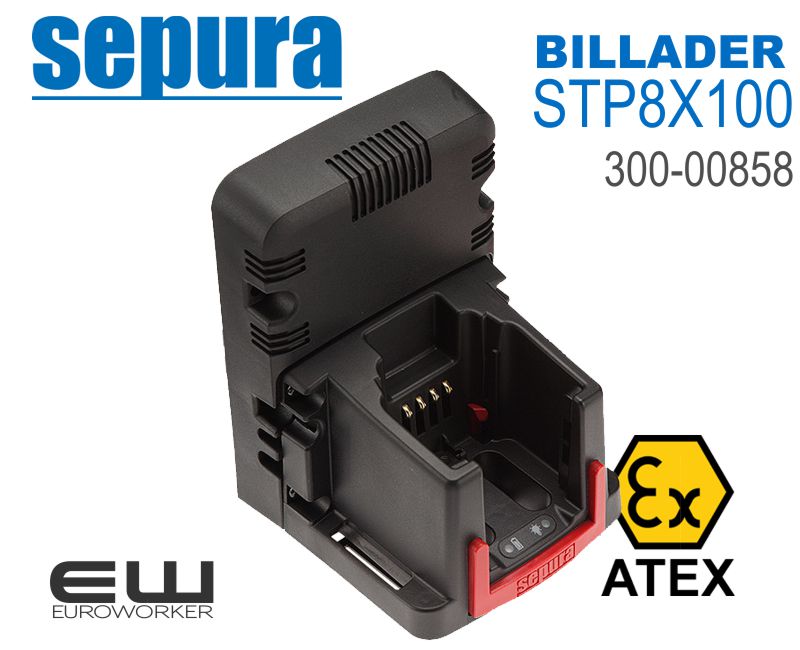

Suitable for charging the battery alone or when connected to the radio, this 12 / 24VDC battery charger offers several mounting options (AMPS, bulkhead or horizontal) and an automatic locking mechanism that secures the radio safely, meeting EU legislation to bumps and shocks, while allowing rapid and easy removal with one hand. A multicolored LED indicates the battery status.
Compatible with version 6 of the rules IECEx and ATEX , the charger is supplied with a 5m power cable and a fuse in line 1A, allowing direct connection to the power supply of a vehicle. Alternatively, it can be plugged into a cigarette lighter input using a plug for car lighter supplied separately.

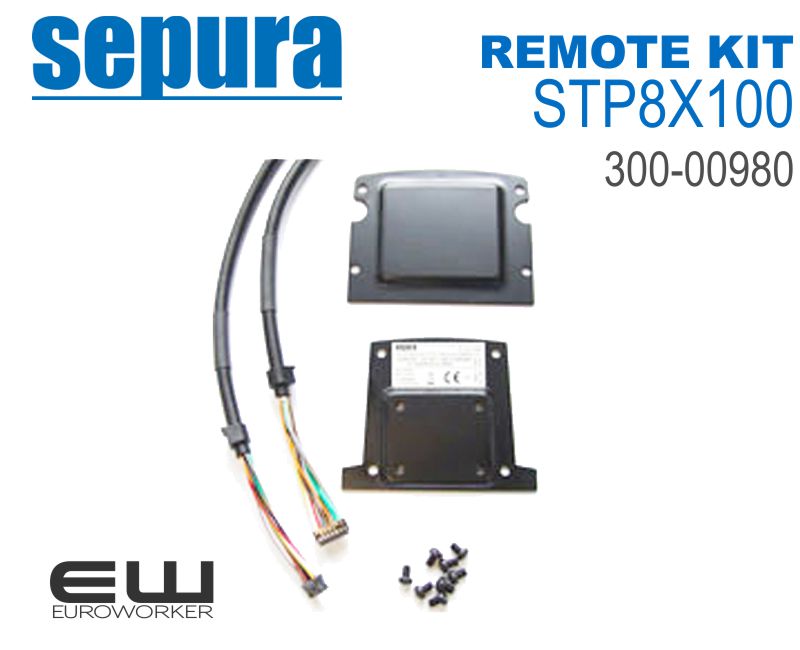

A remote kit is also available, comprising a 3m cable and suppression plates.
- DO NOT use the charger in a hazardous environment
- Do not use the charger or the battery is damaged in some way
- Use only approved batteries with STP8X Sepura
- Observe the operating temperatures / storage indicated in the operator's manual
- Do not modify the power supply or charger
- Use only with the power supply unit AC-DC provided
| Operating Temperature | -20 ° C to 40 ° C |
| Preferred operating temperature | 5 ° C to 35 ° C |
| Storage Temperature | -40 ° C to 85 ° C |
| Input Voltage | Automotive power, 11.8-36v |
| Input current (maximum) | 1A |
| Dimensions (HxWxD) | Complete set: 140x100x95mm Charger: 140x100x18mm Support: 68x97x77mm |
| Weight | 530 g |
| Approvals | CB, CE, UL, CCC & IRAM |
| Car charger STP8X |

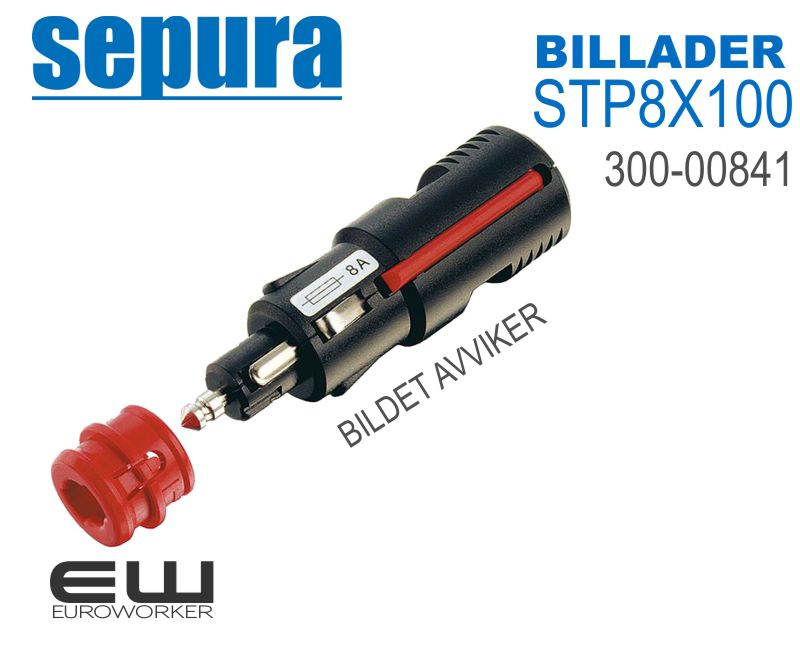

| Plug for car lighter |
| Remote Kit (3m cable) |
Applicable rules
Specifications IECEX
IEC60079-0: 2011 Edition 6.0
IEC60079-11: 2011 Edition 6.0
ATEX specifications
EN60079-0 (2012)
EN60079-11 (2012)
