Sepura STP8X in-Vehilcle Charger Kit
Logg inn for å bruke denne tjenesten

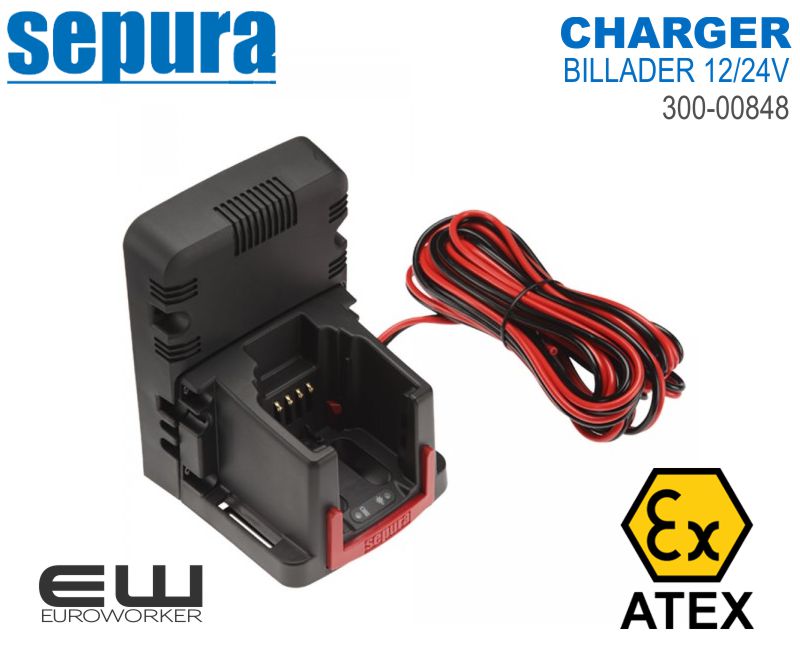

STP8X in-vehicle charger
Suitable for charging the battery alone or when attached to the radio, this 12/24VDC battery charger has a range of mounting options (AMPS, bulkhead or horizontal) and an auto-locking mechanism that holds the radio securely, meeting EU legislation for bump and shock, whilst allowing quick and easy removal with one hand. A multi-coloured LED indicates battery status.
Compliant with version 6 of the IECEx and ATEX standards, the charger is supplied with a 5m power cable and an inline 1A fuse, allowing direct connection to a vehicle supply. Alternatively, it may be connected to the vehicle cigar socket using the cigar lighter plug, supplied separately.
A remote kit is also available, comprising a 3m cable and blanking plates.
- Do NOT use the charger in a hazardous environment
- Do not use if the charger or battery is damaged in any way
- Use only with Sepura-approved STP8X batteries
- Conform to operating/storage temperatures stated within the operator guide
- Do not modify the power supply or the charger
- Use only with the supplied AC-DC power unit
| Operating temperature |
-20°C to 40°C |
| Preferred operating temperature | 5°C to 35°C |
| Storage temperature | -40°C to 85°C |
| Input voltage | 11.8-36v, automotive supply |
| Input current (maximum) | 1A |
| Dimensions (HxWxD) |
Full assembly: 140x100x95mm |
| Weight | 530g |
| Approvals | CB, CE, UL, IRAM & CCC |
| STP8X in-vehicle charger |
| Cigar lighter plug |
| Remote kit (3m cable) |
Applicable standards
IECEX Specifications
IEC60079-0:2011 Edition 6.0
IEC60079-11:2011 Edition 6.0
ATEX Specifications
EN60079-0 (2012)
EN60079-11 (2012)
