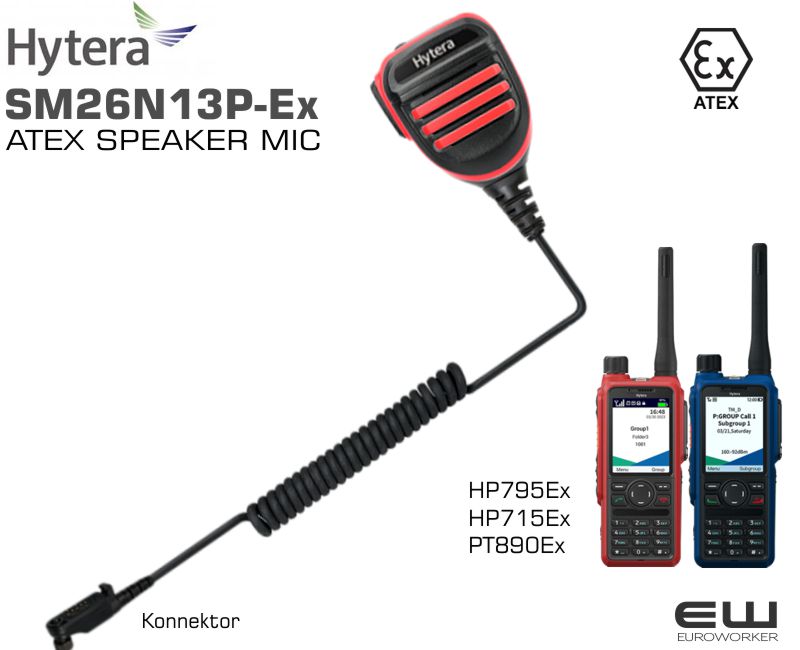

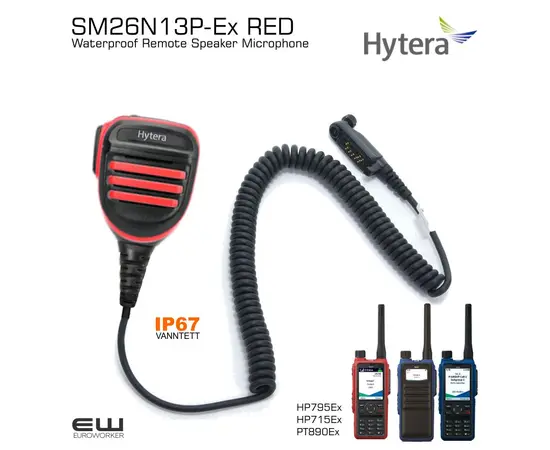

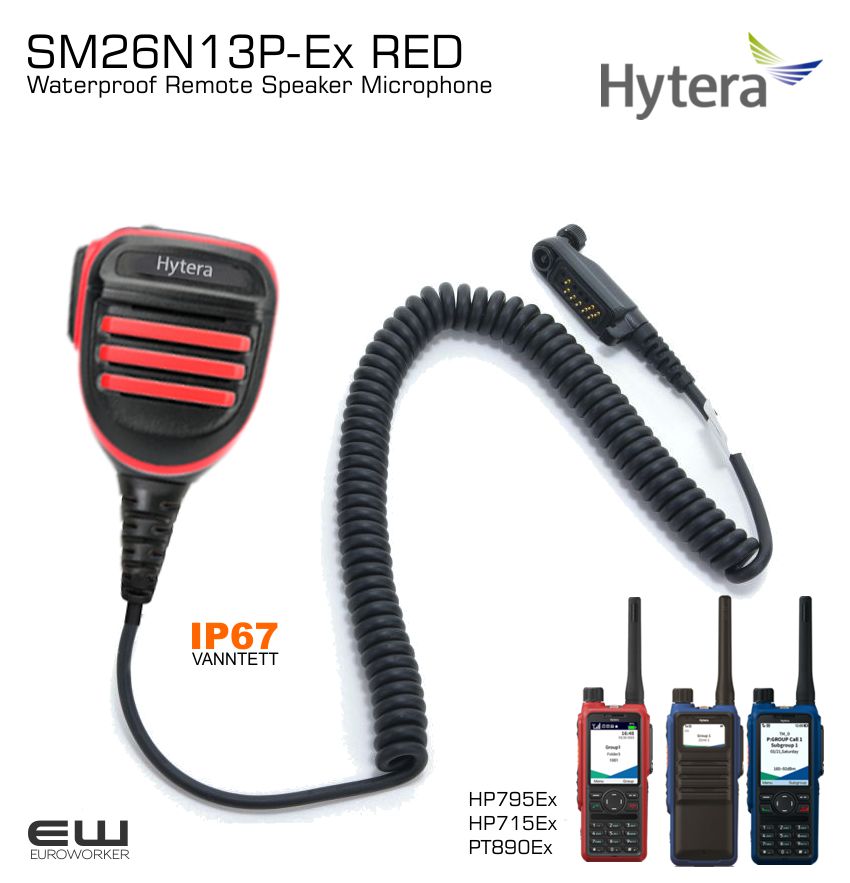

Hytera SM26N13P-Ex RED Atex RSM (HP795Ex, HPP715Ex, PT890Ex)
Logg inn for å bruke denne tjenesten
- Hytera SM26N13P-Ex RED Atex RSM
- Compatible: HP795Ex, HPP715Ex, PT890Ex
- Atex approved
- Intrinsically safe multi-function remote speaker microphone, black-red colour, designed with rugged shape providing stable operation. Suitable and certified for the new generation of intrinsically safe handheld radios, with the black and red design matching the colour of the Hytera TETRA-ATEX radios.
| Specifications | |
|---|---|
| Dimensions | 76.85 x 60.55 x 34（mm） |
| Weight | about 168g |
| Color | black-red |
| PTT Key | available |
| Emergency Key | available |
| Radio connector | 13-pin connector |
| Microphone Sensitivity | -42 ±3dB @1kHz 3.0V 2.2K, 0dB=1V/Pa |
| Speaker Impedance | 16Ω ±15% @ 1.2 kHz |
| Speaker Power | 1.5 W (rated); 2 W (max.) |
| Speaker Frequency Response | 94 ±3dB @1kHz 1W/30cm (at 300Hz~3.4kHz AVE) |
| IP Rating | IP67 |
| Certification | CE, IECEx, ATEX, FM |
| Intrinsically safe certification (IECEx) | Ex ib Mb Ex ib IIC T4 Gb Ex ib IIIC T90℃ Db |
| Operating Temperature | –25℃ to 60℃ |
| Storage Temperature | –40℃ to 85℃ |
| Suitable radios | HP715Ex IIA, HP715Ex IIC, HP795Ex IIA, HP795Ex IIC, PT890Ex |
