Procom Combiner PRO-COM150-HDAR-2/l 136 - 156 MHz

Spør kundeservice
PRO-COM150-HDAR-2
59000 ,-
Eks mva Inkl mva
Tilgjengelig
+ −
Lagre i produktlisten
  • NB. Bestilles fra produsent på frekvens, beregn leveringstid 5-10 uker
  • Produseres ihht kundens duplexfrekvens
  • Server Rack integrated single tray combining solution
  • 2-channel 19" hybrid TX hybrid combiner
  • Duplex filter
  • Active RX multicouplers and preselector.
  • AC/DC adapter 240000040.
  • Please specify frequency when ordering.



PRO-COM150-HDAR-2/...

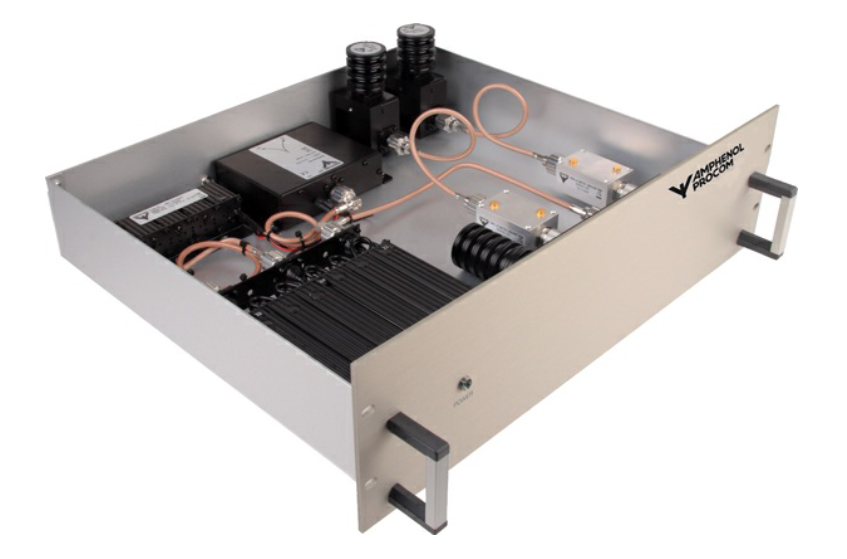

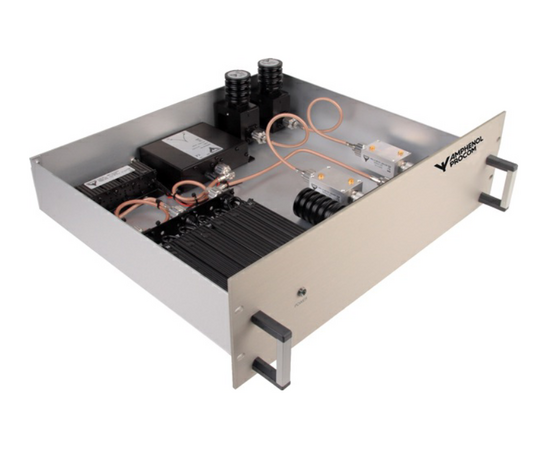

2-Channel 19" 3 HU Single Tray Combining System
An integrated single tray combining solution housing a 2-channel
hybrid TX hybrid combiner, duplex filter, active RX multicouplers
and preselector.
Minimal rack space required - only 3 HU.
DESCRIPTION
Compatible with digital 6.25 kHz channel spacing.
Single TX isolators fitted as standard (dual isolators available as
option).
2 RX ports as standard (4 ports available as option).
Please specify TX / RX frequencies when ordering





TYPE PRODUCT NO.
PRO-COM150-HDAR-2/l 210001737
PRO-COM150-HDAR-2/h 210001736
PRO-COM150-BHDAR-2/l
(With black frontplate) 210002338
PRO-COM150-BHDAR-2/h
(With black frontplate) 210002339
ACCESSORIES
ADAPTOR AC/DC 12V EU 240000040
ADAPTOR AC/DC 12V UK 240000041





SPECIFICATIONS
ELECTRICAL
MODEL PRO-COM150-HDAR-2/...
FREQUENCY RANGE l: 136 - 156 MHz
h: 152 - 175 MHz
MAX. INPUT POWER PER CH 35 W
MAX. TX-TX SPACING, Δ TX 1.5 MHz
MIN. TX-RX SPACING 4 MHz
INSERTION LOSS - TX PATH < 5.0 dB
TX-TX ISOLATION > 70 dB
ANT-TX ISOLATION > 40 dB @ 25° C
RX ISOLATION IN TX BAND
TX-TX spacing < 0.5 MHz
TX-TX spacing > 0.5 MHz
> 80 dB
> 60 dB
TX ISOLATION IN RX BAND
RX-RX spacing < 0.5 MHz
RX-RX spacing > 0.5 MHz
> 80 dB
> 60 dB
RX-RX ISOLATION > 20 dB
IMPEDANCE Nom. 50 Ω
SWR ≤ 1.5
LNA NOISE FIGURE < 3.5 dB
GAIN - RX PATH 1 dB +/- 1 dB (factory set)
CURRENT CONSUMPTION 500 mA @ 12 VDC
MECHANICAL
TEMP. RANGE –30° C → +60° C
CONNECTORS N-female
DIMENSIONS 19" x 3 HU - see drawing for depth of tray
WEIGHT Approx. 6.3 kg
