Procom MPX 2/6 VHF - Kompakt Mini Duplexfilter
Logg inn for å bruke denne tjenesten
- Separates two frequencies to allow a single antenna to be used for transmitting and receiving signals at the same time.

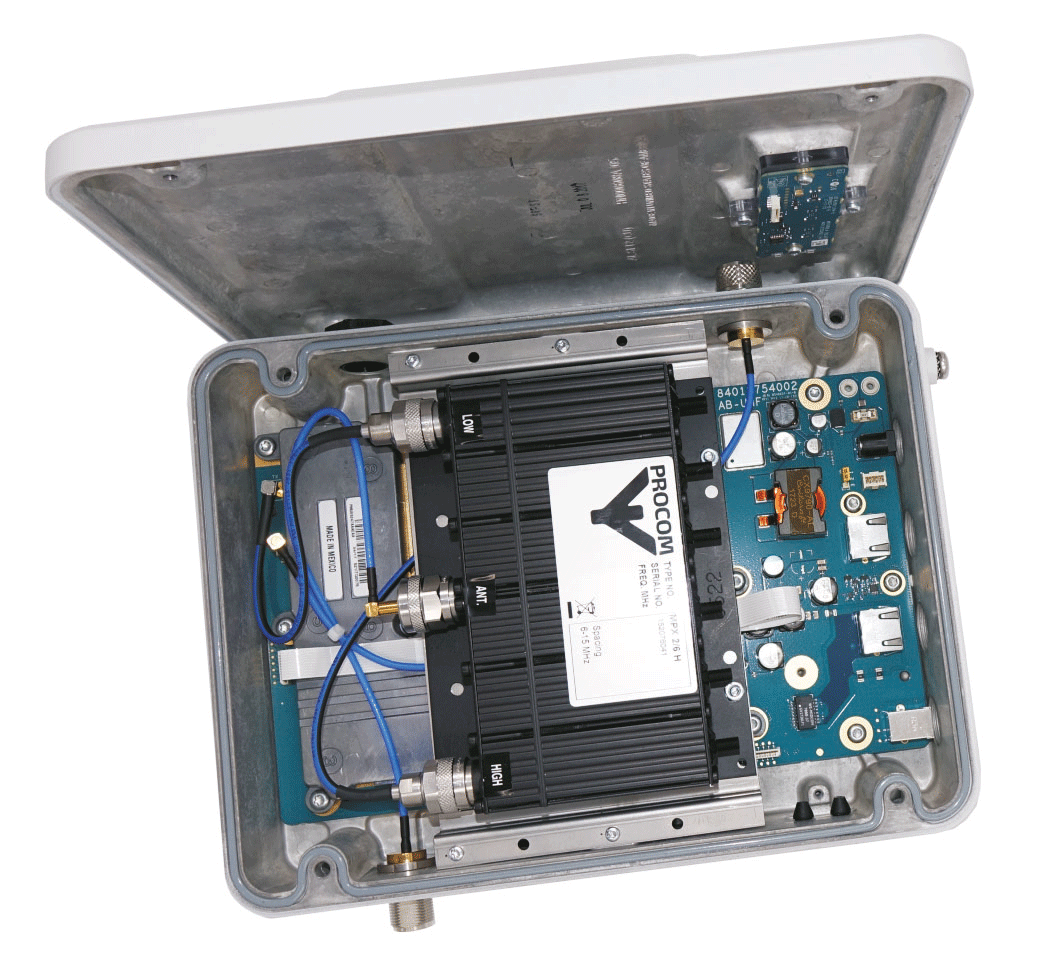

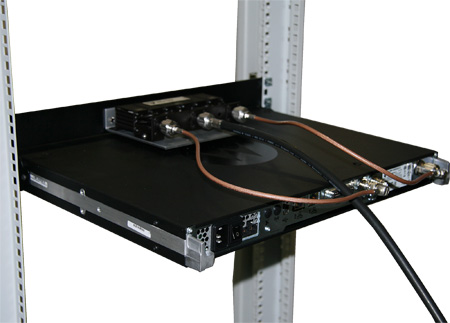

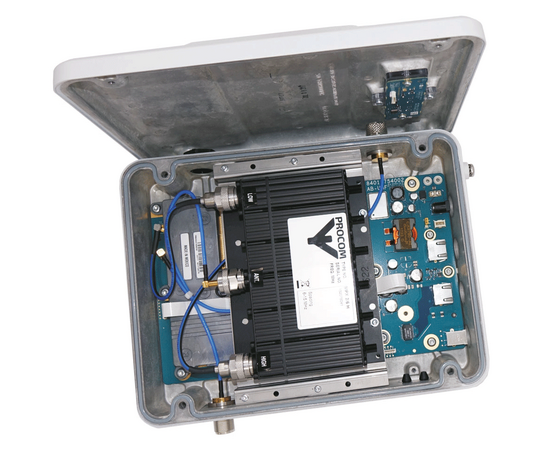

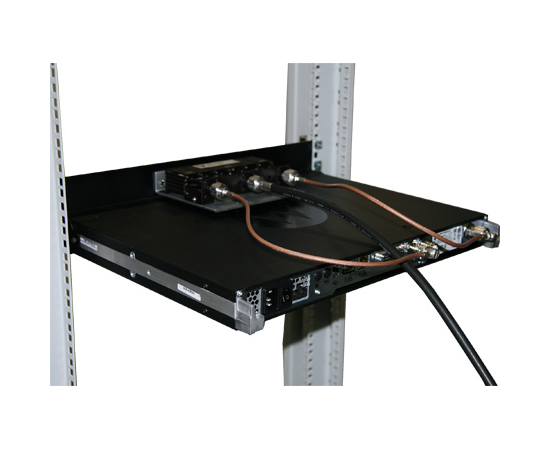

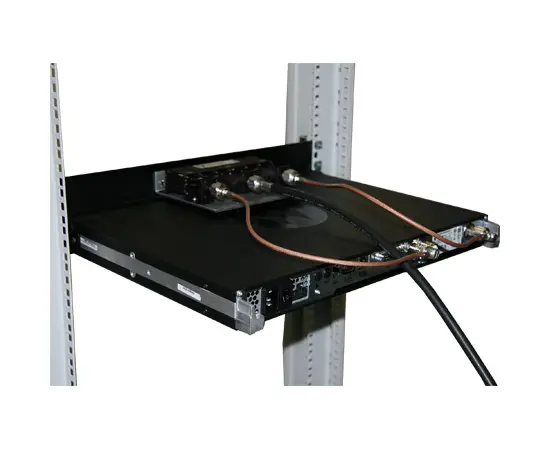

- MPX - Miniatyr Duplex Pass Filter - egnet for installasjon inni repeater - feks Motorola SLR1000 (se bilde)
- Leveres som standard med N-female kontakt, kan bestilles med BNC kontakt
- Velg modell fra menyen:

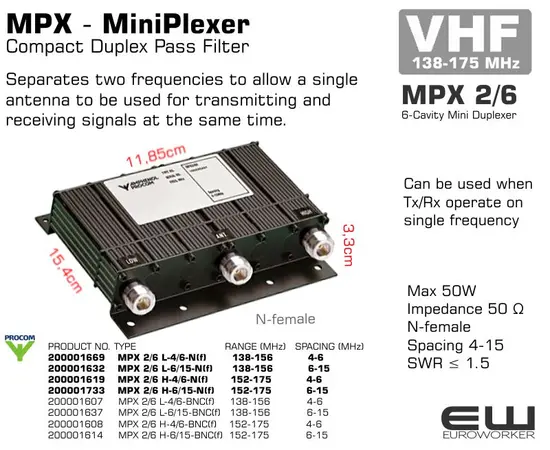

- PRODUCT NO. TYPE RANGE (MHz) SPACING (MHz)
200001669 MPX 2/6 L-4/6-N(f) 138-156 4-6
200001632 MPX 2/6 L-6/15-N(f) 138-156 6-15
200001619 MPX 2/6 H-4/6-N(f) 152-175 4-6
200001733 MPX 2/6 H-6/15-N(f) 152-175 6-15
200001607 MPX 2/6 L-4/6-BNC(f) 138-156 4-6
200001637 MPX 2/6 L-6/15-BNC(f) 138-156 6-15
200001608 MPX 2/6 H-4/6-BNC(f) 152-175 4-6
200001614 MPX 2/6 H-6/15-BNC(f) 152-175 6-15
- PRODUCT NO. TYPE RANGE (MHz) SPACING (MHz)
- 6-Resonator Mini-Duplexer for the 160 MHz band
DESCRIPTION

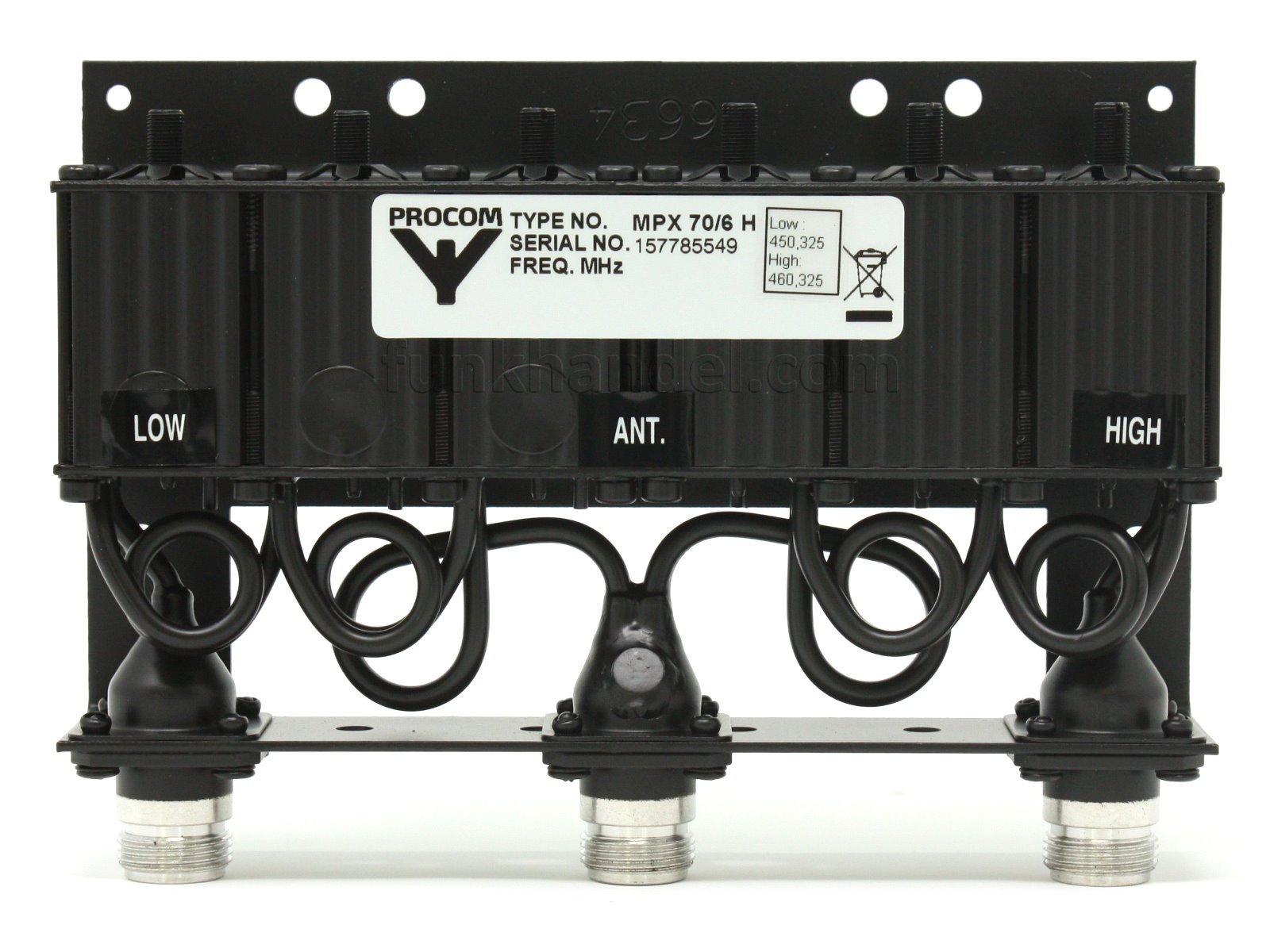

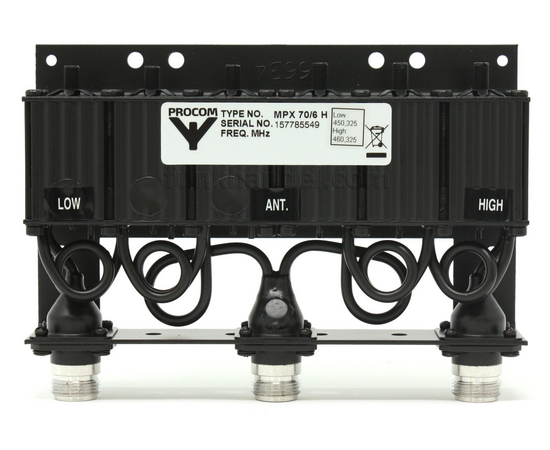

The MPX 2/6 is a 6-resonator miniaturized duplex filter for duplex transceivers. This
compact “miniplexer” meets the demand for a modern space saving, high performance
filter type.
Model MPX 2/6 L can be tuned within the band 138-156 MHz and model MPX 2/6 H
within the band 152 - 175 MHz, both with duplex spacing between 4 and 15 MHz.
The MPX 2/6 is primarily intended for equipment, where the Tx and Rx operate on single
frequencies, but it can also, however with slightly reduced data, be used where the Tx
and Rx operate on several channels, i.e. within a certain port bandwidth. In the last
case, factory tuning is recommended.
The miniaturization of the filter has been realized by using special high-Q, temperature
compensated helical resonators with discrete-component interconnections.
The housing is made of extruded aluminium, and the connectors are provided with teflon
insulation.
The filter is coated with black vinyl to prevent corrosion. - SPECIFICATIONS
Electrical
Model MPX 2/6...
Frequency MPX 2/6 L : 138 - 156 MHz
MPX 2/6 H : 152 - 175 MHz
Max. Input Power 50 W
Special spec. info Single-channel tuned : Multi-channel tuned,
BW = 1.5 MHz :
Insertion Loss < 1.5 dB < 1.5 dB
Isolation Rx on Frequency Tx > 90 dB > 60 dB
Impedance 50 Ω
Duplex Spacing 4 - 15 MHz (see table)
Tx Noise Suppression on Rx-Freq. / Rx Isolation on Tx-Freq. > 90 dB > 60 dB
VSWR < 1.4:1
Mechanical
Connection(s) N(f)
(BNC(f), TNC(f) on request)
Dimensions 118.5 x 154 x 33 mm / 4.65 x 6.06 x 1.30 in.
Weight Approx. 0.66 kg / 1.46 lb.
Environmental
Operating temperature range -30 °C to +60 °C
