• Separates two frequencies to allow a single antenna to be used for transmitting and receiving signals at the same time.

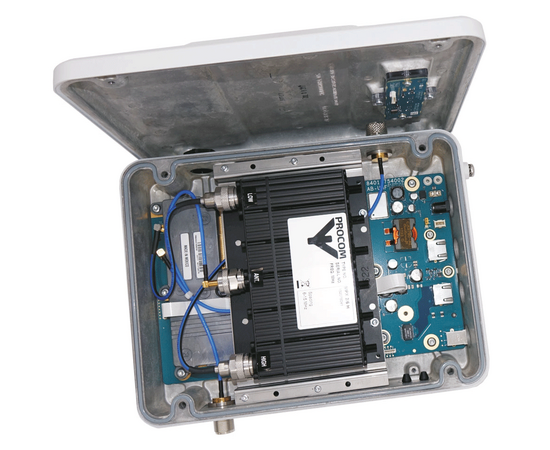

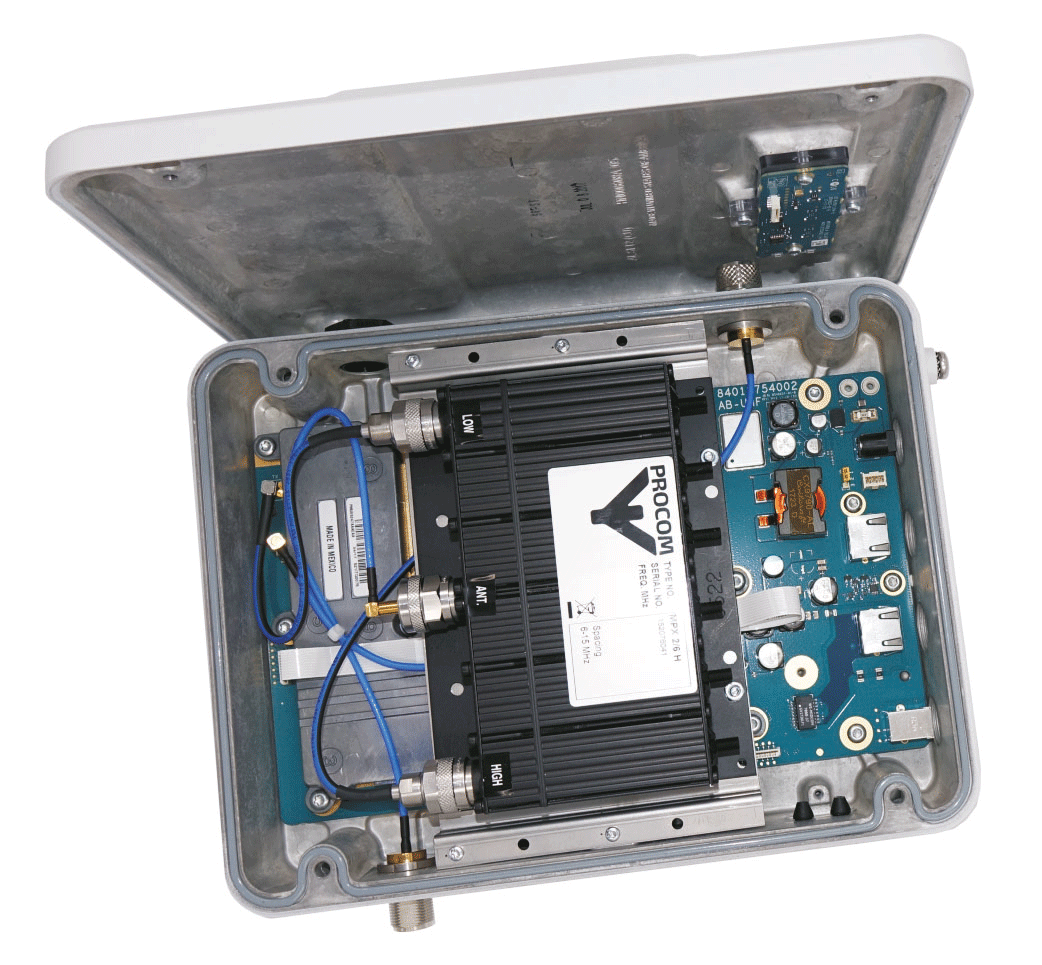

• MPX - Miniatyr Duplex Pass Filter - egnet for installasjon inni repeater - feks Motorola SLR1000 (se bilde)
• Leveres som standard med N-female kontakter
• Velg modell fra menyen:
  • PRODUCT NO. TYPE RANGE (MHz) SPACING (MHz)
    200000581 MPX 70/6L-5/7-N(f) 406-440 5-7
    200000586 MPX 70/6L-7/9-N(f) 406-440 7-9
    200000593 MPX 70/6L-9/13-N(f) 406-440 9-13
    200000578 MPX 70/6L-13/16-N(f) 406-440 13-16
    200000558 MPX 70/6H-5/7-N(f) 430-470 5-7
    200000563 MPX 70/6H-7/9-N(f) 430-470 7-9
    200000569 MPX 70/6H-9/13-N(f) 430-470 9-13
    200000553 MPX 70/6H-13/16-N(f) 430-470 13-16

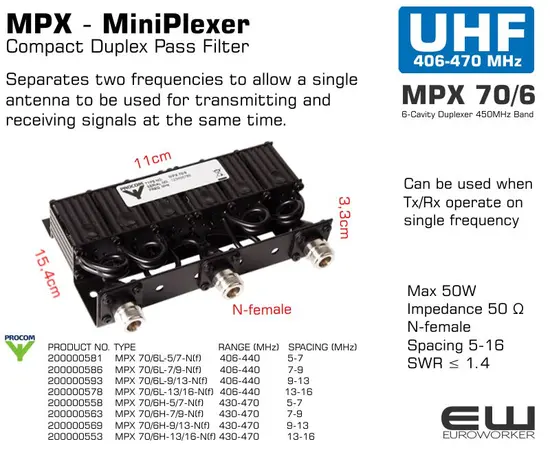

• MPX 70/6...
  6-Resonator Mini-Duplexer for the 450 MHz band
  The MPX 70/6… is a 6-resonator miniaturized duplex filter for
  duplex radiotelephones. This compact “miniplexer” meets the
  demand for a modern, space saving, high performance filter type.
  The duplexer is delivered in a low band version: MPX 70/6 L,
  tunable within the 406 - 440 MHz range, and a high band version:
  MPX 70/6 H, which is tunable within the 430 - 470 MHz range.
  These models are again delivered in 4 different versions according
  to required duplex spacing. See also “Ordering information”
  below.
  DESCRIPTION
  The MPX 70/6… models are primarily intended for equipment,
  where the TX and RX operate on single frequencies, but they can
  also, however with slightly reduced data, be used where the TX
  and RX operate on several channels, i.e. within a certain port
  bandwidth. In the last case, factory tuning is recommended.
  The miniaturization of the filter has been realized by using special
  high-Q, temperature compensated helical resonators.
  The housing is made of extruded aluminium, the chassis of steel,
  and teflon insulation has been applied in the rigid coaxial cables
  and in the connectors.
  MPX 70/6... is coated with black vinyl to prevent corrosion.

SPECIFICATIONS
ELECTRICAL
MODEL MPX 70/6...
TX/RX FREQUENCY MPX 70/6 L: 406 - 440 MHz
MPX 70/6 H: 430 - 470 MHz
MAX. INPUT POWER 50 W
INSERTION LOSS TX-ANT AND ANT-RX
Single-channel tuned: < 1.4 dB
Multi-channel tuned,
1.5 MHz BW: < 1.5 dB
TX NOISE SUPPRESSION ON RX-FREQUENCY
Single-channel tuned: >90 dB
>80 dB @ 5-7 MHz spacing
Multi-channel tuned,
1.5 MHz BW: >60 dB
RX ISOLATION ON TX-FREQUENCY
Single-channel tuned: >90 dB
>80 dB @ 5-7 MHz spacing
Multi-channel tuned,
1.5 MHz BW: >60 dB
TX/RX SPACING 5 - 13 MHz (see tabel)
IMPEDANCE Nom. 50 Ω
SWR ≤ 1.4
MECHANICAL
TEMP. RANGE –30° C → +60° C
CONNECTORS N-female
BNC(f), TNC(f), UHF(f), SMA(f) on request
DIMENSIONS
(L x W x H) 110 x 154 x 33 mm / 4.33 x 6.06 x 1.30 in.
WEIGHT Approx. 550 g / 1.21 lb
