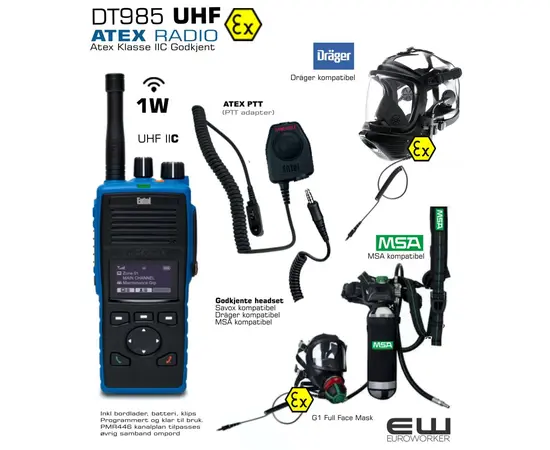

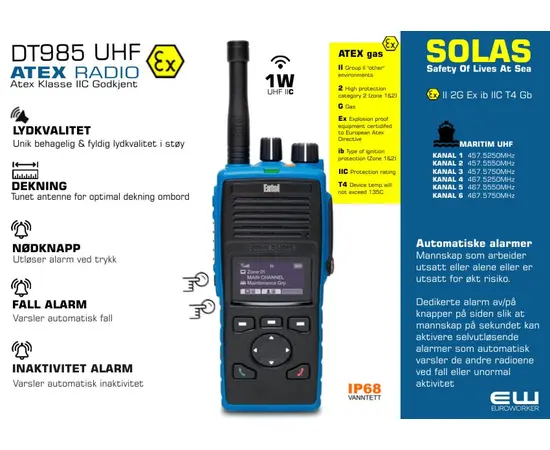

ENTEL DT985 UHF Atex radio (1W, IIC, IP68)
Logg inn for å bruke denne tjenesten

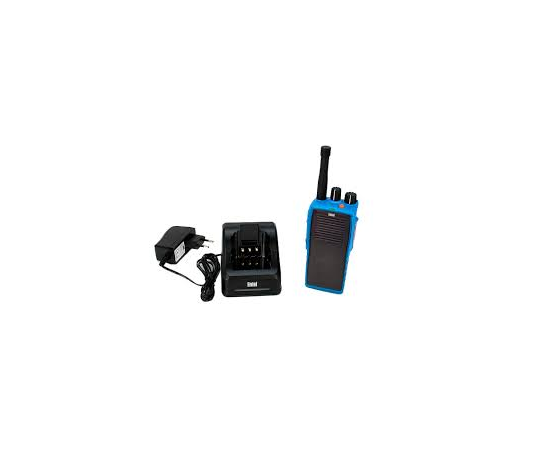

- Radio leveres komplett og klar til bruk opp av esken med:
- Programmert med internasjonal UHF maritim kanalplan (4557-467MHz)
- Antenne
- Belteklips
- Bordlader
- Strømadapter
- Batteri
Fra produsenten:
- Latest addition to Entel DTEx DMR Digital Series Intrinsically Safe radios.
- ATEX II 2G Ex ib IIC T4 Gb
- Ta kontakt for tilpassert tilbud
- UHF - DT985 - Med display - ATEX IIC 1W UHF Tier II
- UHF - DT982 - Uten display - ATEX IIC 1W UHF Tier II
- VHF - DT922 - Uten display - ATEX IIC 1W VHF Tier II
- VHF - DT925 - Med display - ATEX IICr 1W VHF Tier II
DT985 UHF - Link til produsent: https://www.entel.co.uk/products/dt985
DT982 UHF - Link til produsent: https://www.entel.co.uk/products/dt982
DT925 VHF - Link til produsent: https://www.entel.co.uk/products/dt925
DT922 VHF - Link til produsent: https://www.entel.co.uk/products/dt922
| Frequency Range |
|
||
| Channel Spacing | 12.5 & 25KHz | ||
| Operating Voltage | 7.4v | ||
| Weight | 435g | ||
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm | ||
| Programmable Buttons | 5 | ||
| Channels | 16/256 | ||
| Battery | CNB950EV2 1800mAh Lithium-Ion | ||
| Battery Endurance (5/5/90) Analogue mode | 14 hours | ||
| Battery Endurance (5/5/90) Digital mode | 17.5 hours |
Transmitter
| Output Power UHF | ATEX IIC 1 Watt |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz |
| Conducted / Radiated Spurious Emissions | Better than -36dBm |
| Adjacent Channel Power | Better than 60dB |
| Audio Distortion (typical) | 3% |
Receiver
| Sensitivity (Typical) | Analogue -121dBm (0.2uV) for 12dB SINAD Digital -121dBm (0.2uV) for 5% BER |
| Intermodulation response rejection (ETSI) | > 70dB |
| Adjacent Channel Selectivity (ETSI) | > 70dB(12.5KHz) 60dB(25KHz) |
| Spurious Response Rejection (ETSI) | > 70dB |
| Audio Output Power | 1 Watts |
| Audio Distortion (typical) | 3% |
| Conducted Spurious Emission (ETSI) | > - 57dBm |
Environmental
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | MIL-STD810 C/D/E/F/G |
| Water Ingress | IP68 2 metres, 4 hours submersible |
| Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
