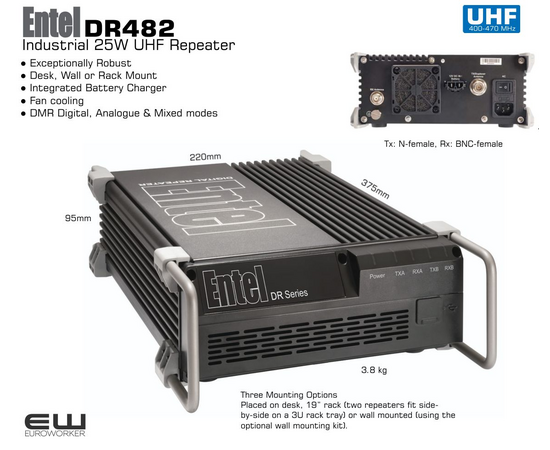

Entel DR482 Industrial & Maritime 25W UHF Repeater (25W, DMR, UHF)
Logg inn for å bruke denne tjenesten
As standard the DR482 Series is supplied with:
- AC Mains lead (Available plug options: UK, EURO or US)
- Front Handles
- Rear Bumpers
- USB programming cable
- Quick Start User Guide
DR482 is a compact, tough and versatile UHF repeater that delivers a 100% transmit duty-cycle for both Land and Maritime applications.
Entel’s simple, yet robust and powerful DR482 repeater, is ideal for demanding applications both on land or at sea.
Key features
- Digital, Analogue & Mixed modes
- Simple end-user programmer app
- Built-in mains power supply
- Built-in mains-fail battery charger
- Software upgradable for extra features/updates
- 100% Transmit duty cycle at 25Watts
- Optional built-in duplexer
- Versatile mounting options
In development
- Relaying of encrypted transmissions
- Relaying of text messages
- Relaying of P2P Data
xceptionally Robust – Entel’s development team recognises that durability and reliability go hand-in-hand. Housed in an ultra-compact enclosure with a low thermal footprint, the DR482 is built to perform in the toughest environments. It has been tested for thermal shock, vibration, impact shock, solar radiation, and ingress. Combined with Entel’s rigorous life-cycle testing programme, users can expect many years of trouble-free operation, even under the most demanding conditions.
Built in Power Supply – The repeater is supplied with a built in AC Mains power supply capable of charging a 12V backup battery.
Built in Protection – The DR482 is protected against antenna faults, over temperature, interfering signal, AC mains and DC supply voltage fluctuations.

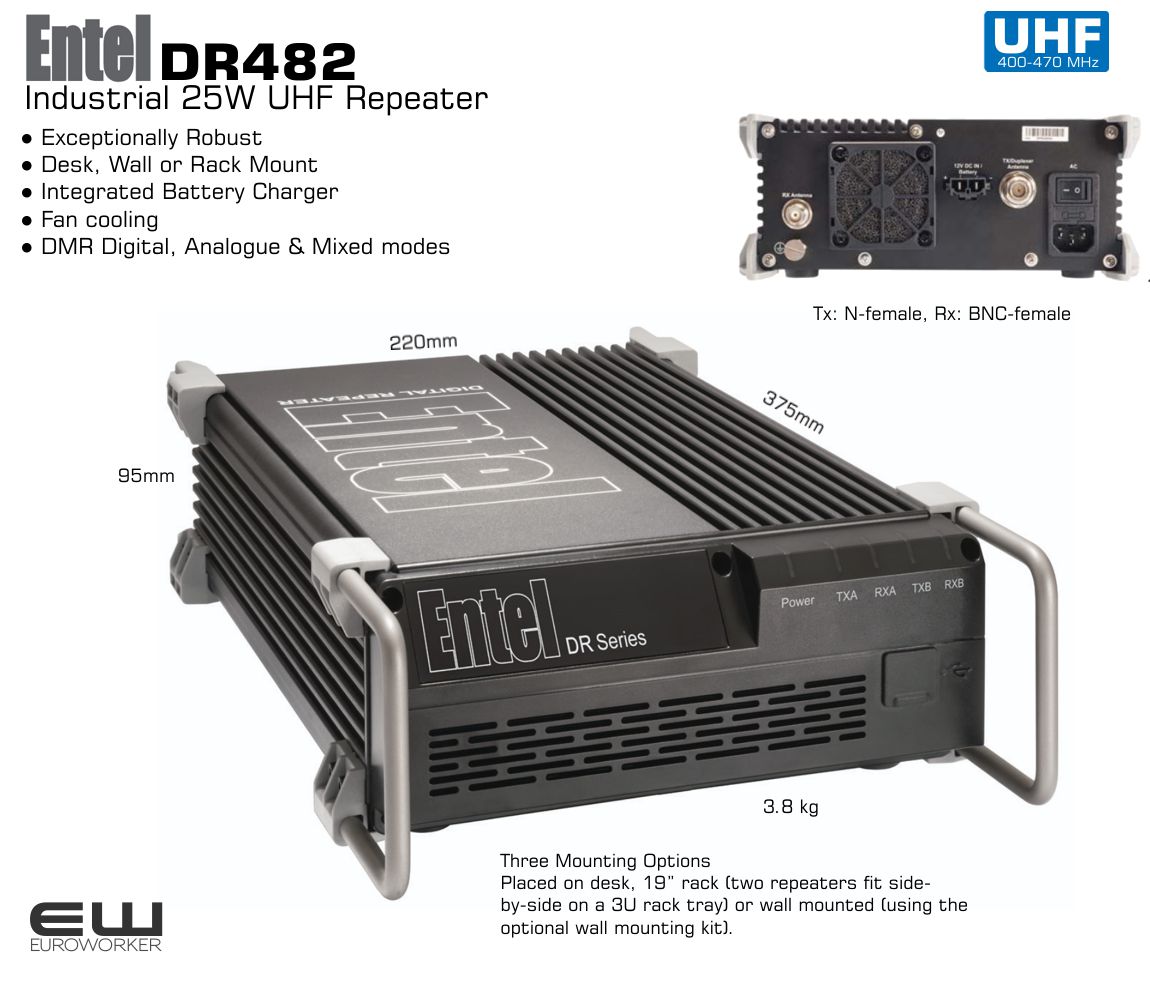

Three Mounting Options – DR482 can be desk, 19” rack (two repeaters fit side-by-side on a 3U rack tray) or wall mounted (using the optional wall mounting kit).
Simple End-User Programming – Our unique and simple-to-use Windows® app means there is no longer any need to return a repeater to your dealer to reprogram or update it. With the user-friendly app, you can simply transfer the programming data sent to you by your Entel dealer, apply software updates or add new features to your Entel DR482 repeater yourself.
Three Power Supply Modes – The DR482 repeater can be powered in three different modes:
• AC Mains only
• 12V DC only
• AC Mains with Battery Backup
Optional Internal Duplexer – The DR482 repeater can be supplied either with separate Tx and Rx connectors for 2-antenna working or an external duplexer, or with an internal duplexer for single antenna working.
Mixed Mode Operation – To support legacy analogue radios, the repeater can be configured to automatically switch between DMR Digital and Analogue modes.
Physical |
|
|---|---|
| Size (HxWxD) | 95 x 220 x 375 mm (main body only) |
| Weight: | 3.8 kg |
| Temperature Range (Operational): | -30°C to +60°C (fan unrestricted) -30°C to +55°C (fan dust filter fitted) |
| Temperature Range (Storage): | -40°C to +70°C |
| Relative Humidity: | Up to 95% (non-condensing) at 50°C |
| Antenna Connectors(Two Antenna Working): | Tx: N-Type female Rx: BNC female |
| Antenna Connectors(With Optional Duplexer): | Tx/Rx: N-Type female |
| Power Connectors: | AC:Fused IEC C14 (fits IEC C13 cable) DC: Molex Mini-Fit Sr. 2-Circuit Plug |
RF General |
|
|---|---|
| Mode of Operation: | Full-Duplex Repeater |
| Number of Channels: | 1 |
| Frequency Range: | 400-470 MHz |
| Channel Bandwidth: | 12.5 kHz or 25 kHz |
| Supported Modes of Operation: (Auto-switches between modes) | Analogue FM Conventional DMR Tier II (TS 102 361-1 and -2) |
Tramsmitter |
|
|---|---|
| Rated Output Power: | 1–25W (adjustable) |
| Transmitter Duty Cycle: | Continuous Duty |
| Frequency Stability: | <0.5 ppm |
| Intermodulation Attenuation: | >40 dB |
| Adjacent Channel Power: (ETSI & TIA603E) | 12.5kHz: >60 dB, 25kHz: >70 dB |
| FSK Modulation Fidelity (DMR): | Frequency: <3% Magnitude: <1% |
| Max Freq Deviation / Modulation Limiting: (Analogue FM) | 12.5kHz: ±2.5 kHz 25kHz: ±5.0 kHz |
| Spurs & Harmonics (Conducted and Radiated): | <1GHz: <-36 dBm >1GHz: <-30 dBm |
| FM Hum & Noise: | 12.5kHz: <-45 dB 25kHz: <-50 dB |
Power Supply |
|
|---|---|
| Power Supply Type: | Switching |
| Input Power Modes: | AC only AC with DC-revert upon AC-failure DC only |
| Input Voltage(AC): | UK/Euro: 230 VAC ±10%, 47-53 Hz Americas: 110 VAC ±10%, 57-63 Hz |
| Input Voltage(DC): | 12.0–15.0 VDC |
| Typical Input Power: (25°C, VSWR<1.5 and backup battery fully charged or absent) | AC: Standby:18 VA 25W Tx:130 VA 1W Tx:40 VA DC: Standby:3 W 25W Tx:70 W 1W Tx:20 W |
| Backup Battery Charge Scheduling: | Batt Charging during Standby Charging suspended during Tx |
| Backup Battery Charge Current: | 1A @ Vbatt < 11.5VDC 3A @ 11.5VDC < Vbatt < 13.8VDC Up to 3A @ Vbatt = 13.8VDC |
Receiver |
|
|---|---|
| Frequency Stability: | <0.5 ppm |
| Sensitivity: | Analogue: 12dB SINAD <0.2 μV DMR: 5% BER <0.2 μV |
| Adjacent Channel Selectivity: | ETSI: 12.5kHz >60dB, 25kHz >70dB TIA603E: 12.5kHz >65dB, 25kHz >75dB |
| Blocking / Desensitisation: | ETSI: >84dB TIA603E: >84dB |
| Intermodulation Response Rejection: | ETSI: >70dB TIA603E >75dB |
| Spurious Response Rejection: | ETSI: >70dB TIA603E: >75dB |
| Spurious Emissions (Conducted and Radiated): | <1GHz: <-57dBm >1GHz: <-47dBm |
