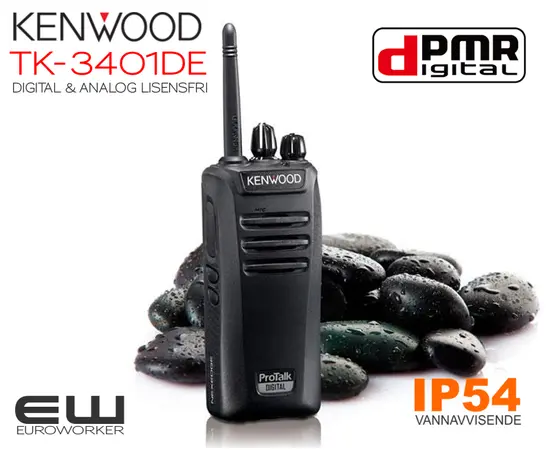

Kenwood ProTalk TK-3401DE dPMR (Digital, 446MHz)
Logg inn for å bruke denne tjenesten
- Digital & analog lisensfri radio for proffmarkedet
- Ligger godt i hånden og god å bruke med hansker
- Egnet på anlegg, lagersamband og i industrien
- En sikker og fullgod løsning når avstandene er korte og det ikke er behov for bruk av repeater (signalforsterker).
- Leveres komplett og klar til bruk med radio, batteri, belteklips, antenne, bordlader og strømforsyning
- Dual mode - vil si at radioen kan kan veksle mellom analog og digital modus
- Frekvensområde med preprogrammerte EU godkjente kanaler:
- UHF Digital dPMR 446MHz
- Analog PMR 446MHz
- 32 kanaler (16 analoge og 16 digitale)
- 0,5W sendeeffekt med ekstra god rekkevidde
- Li-Ion batteri 2000mAh
- Kanalsøkning med prioritet
- QT og DQT signalering
- Innebygget Voice Scrambler
- Industristandard: IP55
- Rugged med MIL-STD 810 C/D/E/F & G
- Dimensjoner (B x H x D) 54 x 122 x 35,5 mm med KNB-45L batteri
- Vekt: 280g med KNB-45L batteri
- AMBE+2 Vocoder for naturlig stemme ved bruk i digital mode
User-friendly - No License Required
The TK-3401D is a license-free dPMR446 and PMR446 UHF digital transceiver. The ready-to-use package comes with a transceiver, rechargeable battery, battery charger, and belt clip. The TK-3401D is perfect for professional applications needing to cover only small areas without the need for a repeater.
High-quality audio, powerful output
- Digital technology's lack of residual noise produces clear, crisp audio quality
Upper Residual noise in analogue mode drowns out voices, making it hard to hear.
Lower The lack of residual noise in digital mode delivers clear, crisp communications.
- DSP delivers high-quality audio with minimal delay
The high-quality audio design draws on Kenwood's state-of-the-art technology and features a DSP with an AMBE+2TM vocoder. Optimized DSP internal processing also minimizes the delay associated with digital voice audio.
- DSP delivers high-quality audio with minimal delay
The high-quality audio design draws on Kenwood's state-of-the-art technology and features a DSP with an AMBE+2TM vocoder. Optimized DSP internal processing also minimizes the delay associated with digital voice audio.
- A BTL audio amplifier delivers powerful 1W output (with internal speaker)
Combined with the large internal speaker, the powerful output delivers reliable audio even in noisy environments.
A High-Capacity Battery for Long-Lasting Operation
The TK-3401D comes with a high-capacity 2,000mAh Li-Ion battery to deliver up to 18 hours of operation. The ability to keep going with no battery replacement means better reliability even in harsh working environments.
See the TK-3401D ProTalk Digital PMR446 in action
Find your nearest Approved Kenwood Centre
Key Features
| Replaces the highly successful TK-3301E model |
| Operates on the PMR446 License-Free Service in both Digital and Analogue FM modes. dPMR mode complies with the ETSI TS 102 490 Standard |
| 32 Channels pre-programmed with the 8 Analogue PMR446 Frequencies plus 16 dPMR446 Digital Frequencies |
| AMBE+2 Vocoder for Natural Sounding Digital Voice |
| QT/DQT Signalling Formats |
| Built-In Voice Scrambler |
| "Industrial Strength" Construction, to US MIL-STD Specification 810G and IP54/55 |
| Supplied with KSC-35S Charger, KNB-45L Li-Ion Battery, KBH-10 Belt Clip and User Manual (English, Spanish, German, French, Dutch, Italian, Turkish, Greek & Portuguese) |
PMR General Features
| 4-colour LED (Red, Orange, Green, Blue) | Yes |
| All-In-One Package | Yes |
| "All Reset" function | Yes, Restores all channels to their default frequencies, plus resets Tones, VOX and keys to their default functions |
| Battery Saver Mode | Yes |
| Calling Alert | Yes |
| Compact Design | Yes |
| Companded Audio | Yes |
| Ease of Operating Use | Yes |
| Enhanced Kenwood Audio | Yes |
| Internal VOX Ready | Yes |
| Kenwood ESN (Electronic Serial Number) | Yes |
| Key Lock | Yes |
| Low Battery Warning | Yes |
| Monitor Button | Yes |
| Programmable Function Keys | 2 Programmable Function Keys |
| QT (CTCSS) / DQT (digital) | Yes |
| Scan | Yes |
| Selectable Microphone Gain | Yes |
| Voice Annunciation | Yes |
| Voice Inversion Scrambler | Yes |
| VOX | Internal VOX with 10-level Sensitivity Adjustment |
| Windows PC Programming and Tuning | Yes |
PMR Construction Features
| Compatibilty with other PMR446 brands | Yes |
Options
| Choice of Optional Battery Packs | Yes |
Applicable Standards
| For use in the EU | Yes |
| IP54 | Yes |
| IP55 | Yes |
| MIL-STD 810 C/D/E/F/G | Yes |
Technical Specifications
| Number of Channels | 32 |
| Number of Zones | 2 |
| Channel Spacing - Digital | 6.25 kHz |
| Channel Spacing - Analogue | 12.5 kHz |
| Battery Life | With KNB-45L: 18 hours - battery save ON 14 hours - battery save OFF - 5-5-90 duty cycle |
| Frequency Stability | ± 1 ppm (-30 °C to + 60 °C) |
| Operating Voltage | 7.5 V DC ± 20% |
| Dimensions | With KNB-45L: W x H x D 54 x 122 x 35.5mm |
| Weight (net) | With KNB-45L: 280g |
Receiver Specifications
| Audio Output | 1.0 W with less than 10% distortion from new BTL Amplifier |
Transmitter Specifications
| RF Power Output | 0.5 W (PMR446 standard) |
- LISENSFRI (446 MHz)
- ANALOG
- DIGITAL
- MIXED MODE
- HÅNDHOLDT RADIO
- VANNAVVISENDE
- MIL-STD (RUGGED)
- SPORT & FRITID
- UTDANNING
- KRANFØRER
- GRAVEMASKIN
- HOTELL
- VEKTER & VAKTHOLD
- ASFALT
- KONSERT & ARRANGEMENT
- GUIDING
- TEAM PAKKER
- Kenwood TK-3401DE Lisensfri Analog Radio (0,5W) med UHF antenne
- KSC-35S bordlader
- KNB-45L Li-Ion Battery
- KBH-10 Belteklips
- Bruksanvisning
