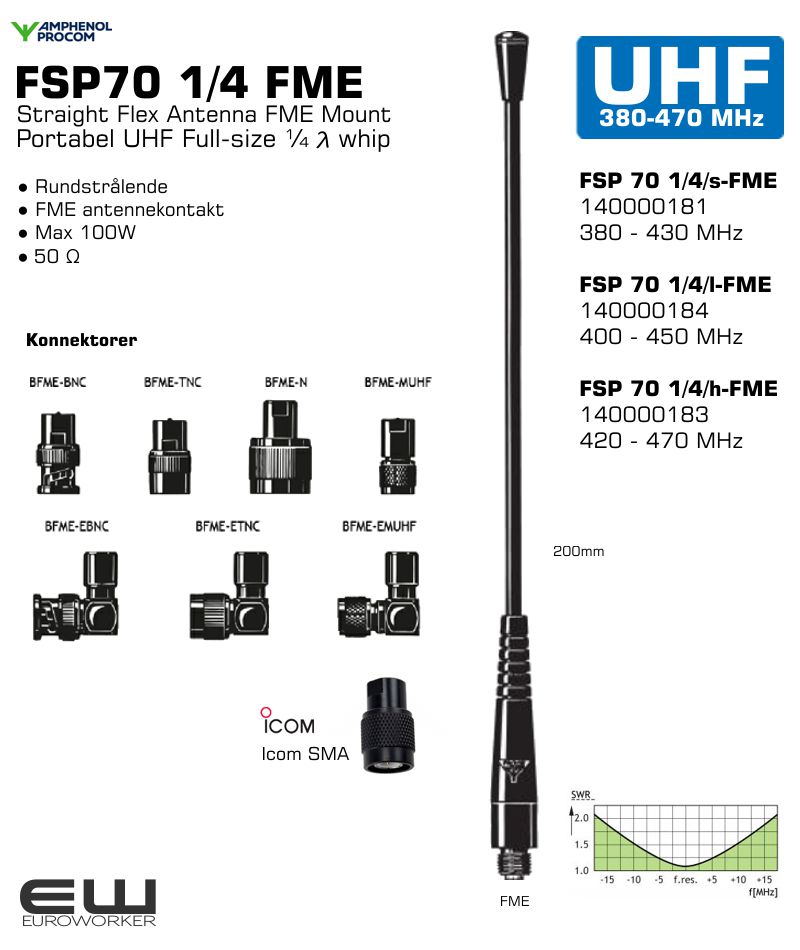

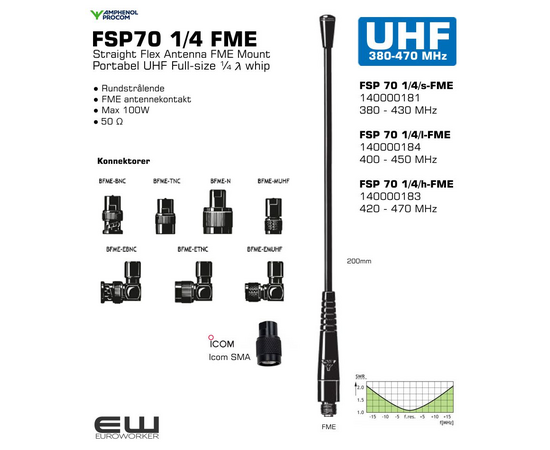

Procom FSP70 ¼ FME Portabel UHF Full-size ¼ λ whip (FME)

Spør kundeservice
FSP 70
489 ,-
Eks mva Inkl mva
Tilgjengelig
+ −
Lagre i produktlisten

FSP 70 1/4/s-FME 140000181 380 - 430 MHz
FSP 70 1/4/l-FME 140000184 400 - 450 MHz
FSP 70 1/4/h-FME 140000183 420 - 470 MHz

“StraightFlex” Antenna with Universal FME-Connection
System for Portable Equipment in the 70 cm Band
DESCRIPTION
Highly flexible, polyethylene covered StraightFlex steel wire.
Full-size ¼ λ whip.
Highest quality materials in an elegant design.
Delivered factory tuned and tested to ensure minimum VSWR.
Provided with universal FME-connection system for optimum flexibility and easily
exchangeable connectors.
Designed for use with the following of Procoms line of black FME-connectors (to
be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC, BFME-N, BFME-
MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.



SPECIFICATIONS
Electrical
Model FSP 70 1/4/...-FME
Frequency 70 cm band covered by three models
Antenna Type ¼ λ antenna for portable equipment
Max. Input Power 100 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dB (compared to a ¼ λ portable
antenna)
VSWR < 2.0:1 when mounted directly on
portable equipment
Bandwidth ≥ 50 MHz @ VSWR ≤ 2.0
Mechanical
Connection(s) FME-female (Exchangeable BFME-
connectors to be ordered separately)
Materials Polyethylene covered flexible steel wire
Black POM
Colour Black
Height Approx. 200 mm / 7.87 in. (dep. on
type)
Weight 0.015 kg / 0.03 lb

fsp-70-1-4-fme.en-GB
