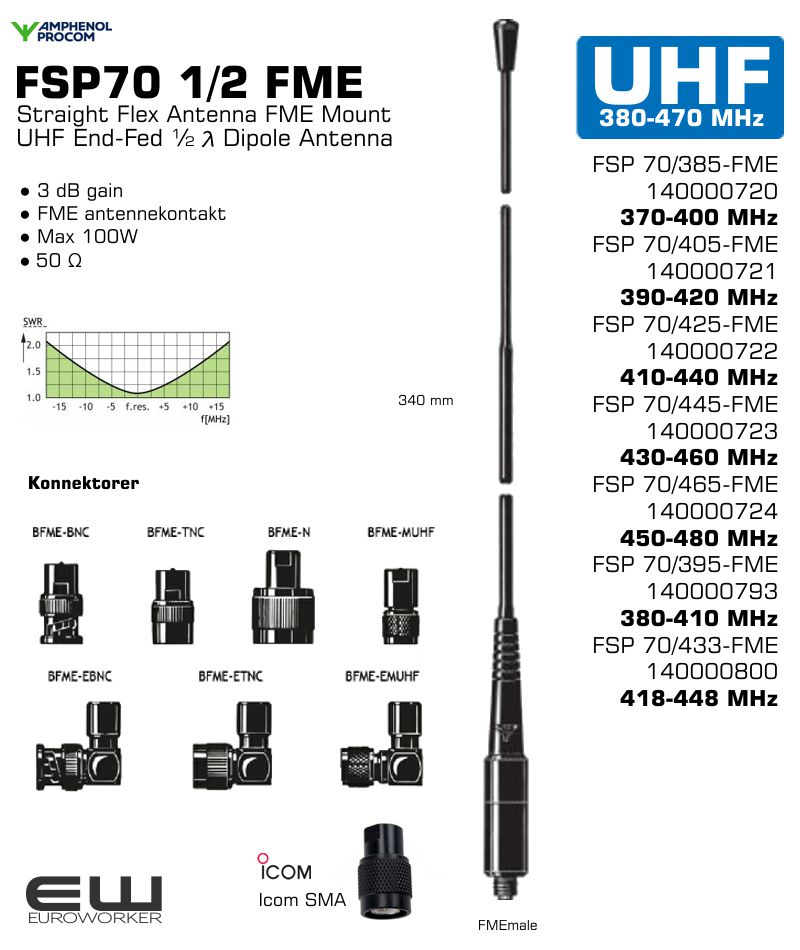

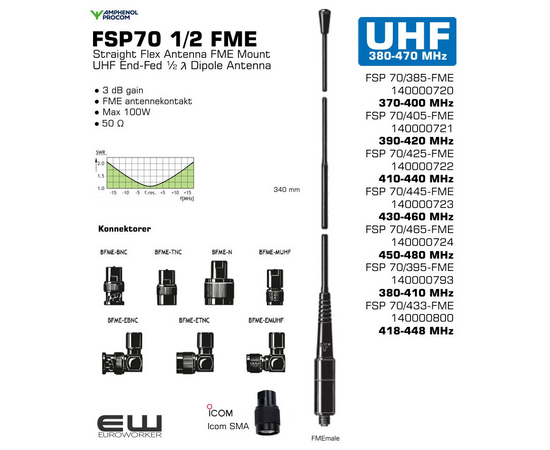

Procom FSP70 ½ FME Portabel UHF End-Fed ½ λ Dipole Antenna

Spør kundeservice
FSP 70 UHF
689 ,-
Eks mva Inkl mva
Tilgjengelig
+ −
Lagre i produktlisten

Description

  • Highly flexible polyethylene covered StraightFlex steel wire (self-straightening).
  • Full-size, end-fed ½ λ antenna whip.
  • High gain and efficient decoupling from the portable equipment.
  • 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
  • Highest quality materials in an elegant design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following line of black FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC, BFME-N, BFME-EBNC and BFME-ETNC.

Specifications

Electrical
Model FSP 70/...-FME
Frequency 70 cm band (380 - 470 MHz)
Antenna Type Antenna for portable equipment
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
Gain 0 dBd / 2.5 dBi (3 dB compared to a ¼ λ portable antenna)
VSWR < 1.3:1 @ f. res.
Bandwidth ≤ 30 MHz @ SWR ≤ 2.5:1
Mechanical
Connection(s) FME(f) (Exchangeable BFME-connectors to be ordered separately)
Materials Polyethylene covered flexible steel wire
Black-chromed brass
Colour Black
Height Approx. 340 mm / 13.39 in.
Weight Approx. 0.05 kg / 0.11 lb

Ordering Designations

Model Product No. Frequency
FSP 70/385-FME 140000720 370 - 400 MHz
FSP 70/405-FME 140000721 390 - 420 MHz
FSP 70/425-FME 140000722 410 - 440 MHz
FSP 70/445-FME 140000723 430 - 460 MHz
FSP 70/465-FME 140000724 450 - 480 MHz
FSP 70/395-FME 140000793 380-410 MHz
FSP 70/433-FME 140000800 418-448 MHz
