Procom DPF 70/6 UHF DUPLEX FILTER (406-470MHz)
Logg inn for å bruke denne tjenesten
- Velg modell fra menyen:
- Varenummer Modell Tuning Spacing
200000392 DPF 70/6-5/7-N 406-470MHz 5-7MHz
200000404 DPF 70/6-7/9-N 406-470MHz 7-9MHz
200000414 DPF 70/6-9/13-N 406-470MHz 9-13MHz
200000419 DPF 70/6-13/16-N 406-470MHz 13-16MHz
- Varenummer Modell Tuning Spacing

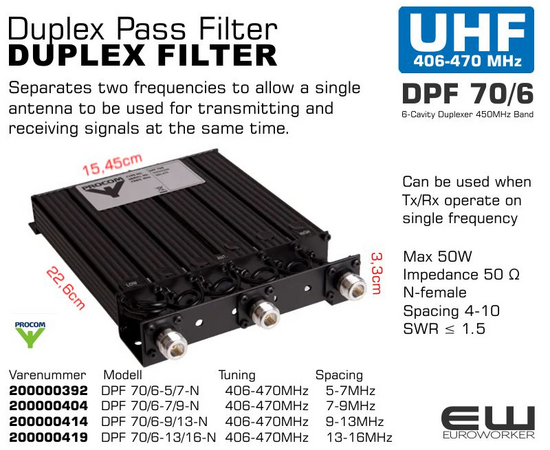

- Separates two frequencies to allow a single antenna to be used for transmitting and receiving signals at the same time. 6-cavity duplexer for the 450 MHz band
- DESCRIPTION
- The DPF 70/6… is a 6-cavity duplex filter for duplex transceivers.
- The DPF 70/6… can be adjusted within the complete 406 - 470 MHz band. The
- duplexer can be delivered in four different versions according to required duplex
- spacing. See also “Ordering information” below.
- The DPF 70/6… is primarily intended for equipment where the TX and RX operate on
- single frequencies, but it can also, however with slightly reduced data, be used where
- the TX and RX operate on multi channels, i.e. within a certain port bandwidth. In the last
- case, factory-tuning is recommended.
- The filter uses full-length ¼ λ cavities in a compact extruded aluminium housing. The
- chassis is made of passivated steel, and teflon insulation has been applied in the
- coaxial cables and in the connectors.
- DPF 70/6... is coated with black vinyl to prevent corrosion
- SPECIFICATIONS
- Electrical
- Model DPF 70/6...
- Frequency 406 - 470 MHz
- Insertion Loss Tx-Ant and Ant-Rx
- Single-channel tuned < 1.2 dB (typ. 1.0 dB)
- Multi-channel tuned, 2 MHz BW < 1.2 dB (typ. 1.0
- dB)
- Tx-Noise Suppression on Rx-
- Frequency
- Single-channel tuned > 85 dB
- Multi-channel tuned, 2 MHz BW > 65 dB
- Impedance 50 Ω
- SWR < 1.5:1
- Maximum Input Power 50 W
- Rx-Isolation on Tx-Frequency Single-channel tuned > 85 dB
- Multi-channel tuned, 2 MHz BW > 65 dB
- Mechanical
- Connection(s) N female, BNC(f), TNC(f), UHF(f), SMA(f) on request
- Dimensions 226 x 154 x 33 mm / 8.9 x 6.0 x 1.3"
- Weight 0.99 kg / 2.18 lb
- Environmental
- Operating Temperature Range -30°C to +60°C
- Frequency Stability 4.5 ppm/° C (approx.)
