• Scan Antenna DU-7062 - UHF DuplexFilter (400-475MHz, 50W)
• Velg modell fra menyen:
  • DU-7062-L L: 400 - 440 MHz, 8 -13 MHz Not tuned
  • DU-7065-L L: 400 - 440 MHz, 5-8 MHz Not tuned
  • DU-7062-H H: 440- 475 MHz, 8-13 MHz Not tuned
  • DU-7065-H H: 440- 475 MHz, 5-8 MHz Not tuned
  • DU-7065-HH HH: 475- 512 MHz, 5-8 MHz Not tuned
  • DU-7062-HH H: 475- 512 MHz, 8-13 MHz Not tuned

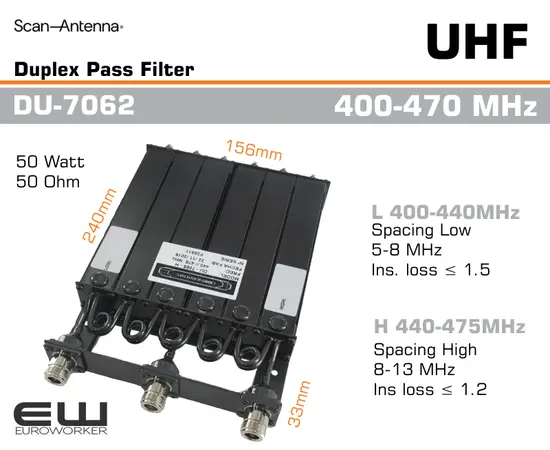

• 6-Cavity 50 Watts UHF 450 MHz Duplex Filter
• For use in repeaters and full duplex radios.
• Steel chassis with aluminium extruded cavities.
• High Q silver plated resonators.
• Easy tunning.
• High Q silver plated resonators.

ELECTRICAL SPECIFICATIONS
Type UHF - 6 Cavity Duplex Filter
Frequency
L: 400 - 440 MHz
H: 440 - 475 MHz
HH: 475 - 512 MHz
Spacing 5-8 MHz
8-13 MHz
Insertion loss
5-8 MHz: ≤ 1.5
8-13 MHz: ≤ 1.2
Multi Channel: ≤ 1.5 dB
Isolation - Single
Channel ≥ 80 dB
Isolation - Multi
Channel
5-8 MHz: ≥ 65 dB @ BW = 1.0 MHz
8-13 MHz: ≥ 65 dB @ BW = 2.0 MHz
VSWR ≤ 1:1.5
Impedance 50 Ohm
Maximum Input
Power 50 Watts
Frequency Stability 9 ppm/°C (approx.)
MECHANICAL SPECIFICATIONSMECHANICAL SPECIFICATIONS
Color Black Grey (RAL7021)
Dimension 240 x 156 x 33 mm
Weight 1.0 kg
Operating
Temperature -30°C to +60°C
Connector Type N-female (other optional)
Serial no. On product label

ORDERING INFORMATION
DU-7062-L L: 400 - 440 MHz, 8 -13 MHz
Not tuned
DU-7065-L L: 400 - 440 MHz, 5-8 MHz
Not tuned
DU-7062-H H: 440- 475 MHz, 8-13 MHz
Not tuned
DU-7065-H H: 440- 475 MHz, 5-8 MHz
Not tuned
DU-7065-HH HH: 475- 512 MHz, 5-8 MHz
Not tuned
DU-7062-HH H: 475- 512 MHz, 8-13 MHz
Not tuned
