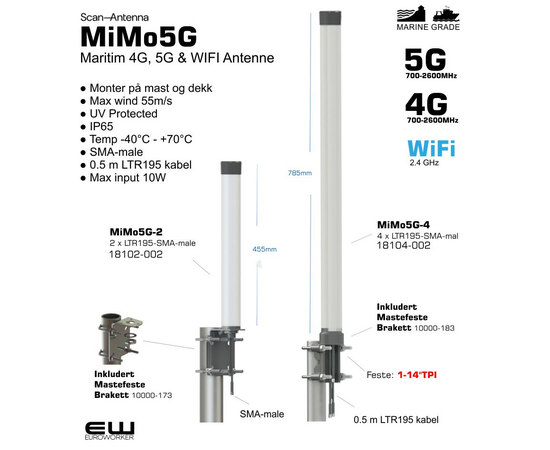

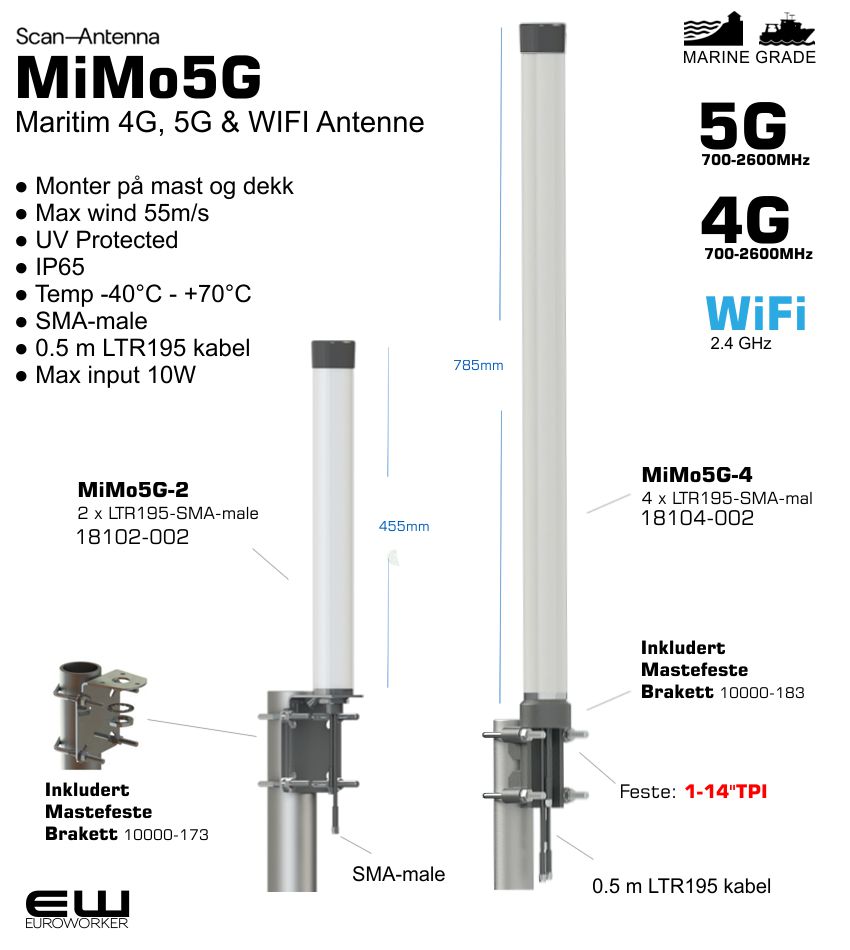

Multiband Cellular MiMo Antenna

Multiband antenna combining the cellular/mobile GSM(2G), UMTS(3G), LTE(4G), 5G NR(5G)
and WiFi frequencies for vessel or land based communication.

Two versions - 2x2 and 4x4

Merk: kun 18104-002, den lengste med 4 antenneelementer er foreløpig til lagerført i Norge

ELECTRICAL SPECIFICATIONS
Type End-Fed Multiband Co-linear MiMo
Frequency 617 - 960 MHz, 1710 - 2170 MHz, 2300 - 2690 MHz, 3300 - 4200
MHz, 4400 - 5000 MHz
Bands
5G NR 600/700/800/900/1800/2100/2600/3500/3700/4900 MHz
LTE 700/800/1800/1900/2600 MHz
UMTS 700/800/900/2100 MHz
GSM 850/900/1800/1900 MHz
WiFi 2.4 GHz
Bandwidth See "FREQUENCY"
Impedance 50 Ohm
VSWR < 4.0:1 (617-698 MHz)
< 3.0:1 (698-960 MHz/1710-2690 MHz)
< 2.0:1 ( 3300-4200 MHz/4400-5000 MHz)
Isolation > 10 dB
Gain -1.0 dBd, 1.15 dBi, 2.0 dB (Marine) (617-960 MHz)
1.0 dBd, 3.15 dBi, 4.0 dB (Marine) (1710-2170, 2300-2690 MHz)
2.0 dBd, 4.15 dBi, 5.0 dB (Marine) (3300-4200, 4400-5000 MHz)
Polarisation Vertical
Radiation Pattern Omni-directional
Max. Input Power 10 W (per element)

Up to four antenna elements in one enclosure
Excellent performance, VSWR below 2.5 in 96% of the specified band
Omni-directional design
Designed for Maritime use
Compact and light weight design

MECHANICAL SPECIFICATIONS
Color White and black
Length
MiMo5G-2: 455 mm
MiMo5G-4: 785 mm
(Excluding cables)
Weight MiMo5G-2: 460 g
MiMo5G-4: 840 g
Mounting Integrated 1-14''NF Male Thread
Mounting Place On mast or deck (see P/N; 10000-173 & 10000-183)
Materials UV Protected PC, PTFE, PE, PCB and chromed solid brass
Survival Wind Speed 55 m/s (125 mph)
Operating
Temperature -40 °C to +70 °C
Connector SMA-male (Other types available on request)
Cable Approx. 0.5 m LTR195
Ingress Protection IP65
Serial No. On product label
ORDERING INFORMATIONORDERING INFORMATION
18102-002 MiMo5G-2
2 x LTR195 + SMA-male
18104-002 MiMo5G-4
4 x LTR195 + SMA-male
