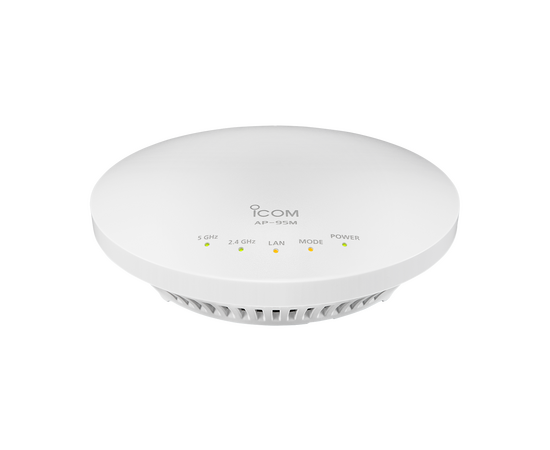

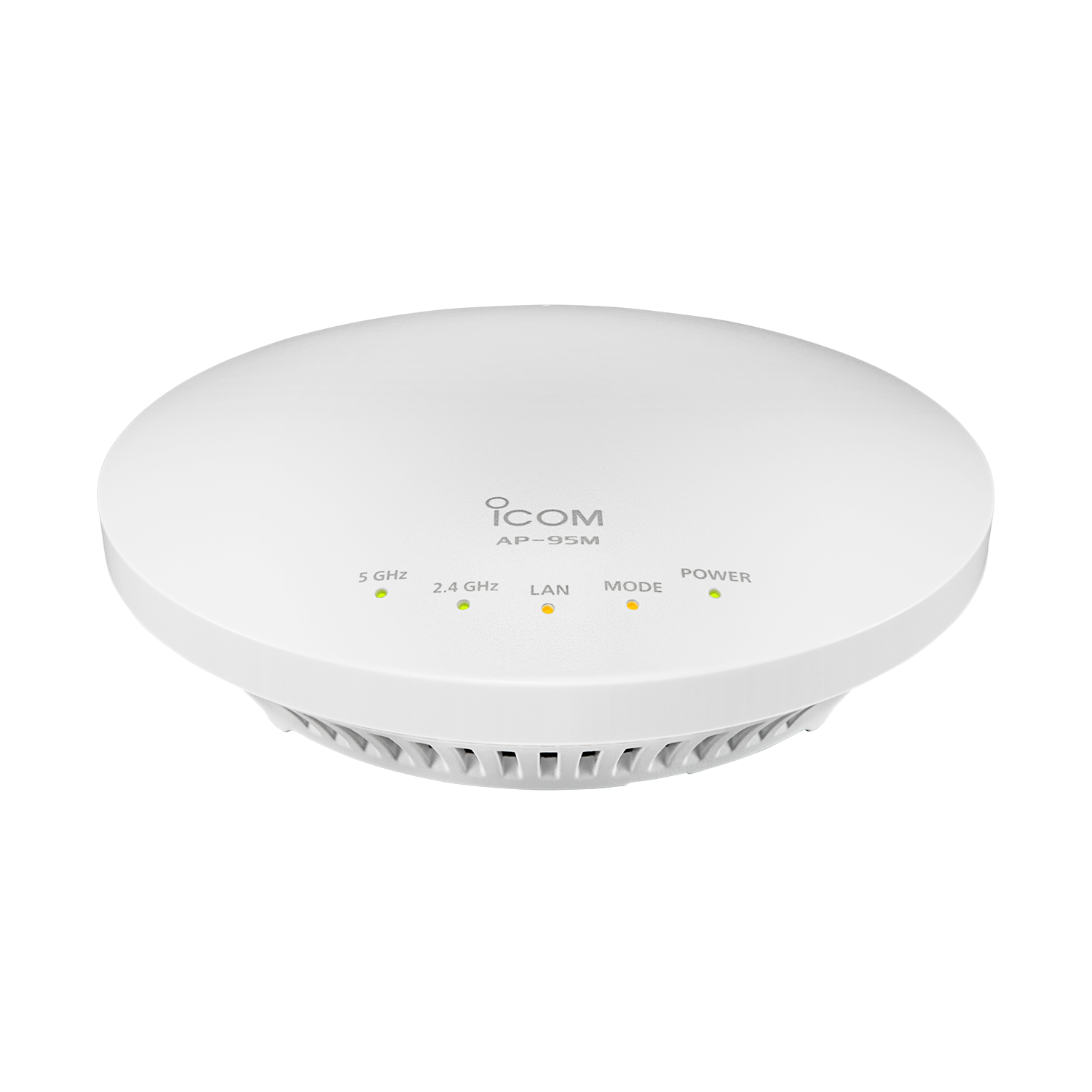

Icom AP-95M High-Performance Access Point with IEEE 802.11ac

Spør kundeservice
AP-95M
3690 ,-
Eks mva Inkl mva
Tilgjengelig
+ −
Lagre i produktlisten
  • AP-95M er Icoms egne kompakte WLAN aksesspunkt.
  • High-Performance Access Point with IEEE 802.11ac
  • The AP-95M complies with the IEEE802.11ac (Wave 2) standard providing high-speed and stable data communication at a maximum of 867 Mbps (theoretical value).
  • The Beam Forming function can send a signal to a specific direction, and the MU-MIMO function*1 prevents mutual interference. These functions can improve the communication quality.
  • Up to eight wireless LAN terminal groups can be configured, which can have different VLAN IDs in each 5 GHz and 2.4 GHz band*2.Each virtual AP can have different security settings.
  • The Automatic Power Level Adjustment function and Connecting Terminal Limit function can remove interference, and they can prevent reduction in communication speed caused by access concentration. The AP-95M can automatically set the channel according to the surrounding signal conditions.
  • By using your PC's web browser, you can update to new firmware, and configure the access point. The AP-95M is compatible with SNMP and the RS-AP3 access point management tool so that you can easily manage your terminals.Other Features
  • Protection function
  • Authentication function (IEEE802.1X/WPA/WPA2)
  • PoE function
  • Stealth function (Hide SSID function)
  • Gigabit Ethernet (1000BASE-T)
  • Router function
  • Web Authentication function
  • Network Monitoring function
  • Packet Filter function
  • Security Slot*3 and more
  • Inkludert: AC adapter*
  • Inkludert: Mounting bracket set
  • Ikke inkludert tilbehør:BC-236 nettadapter
  • Cable LAN 10BASE-T/100BASE-TX/1000BASE-T compatible
    RJ-45 type connector
    (MDI/MDI-X automatic distinction) × 1
    Wireless LAN IEEE 802.11 ac/n/a/g/b standard
    Data rates Cable LAN : 10/100/1000 Mbps
    Wireless LAN : 11/54/400*3/867 Mbps
  • Security standards WEP (64/128/152 bit),
    WPA, WPA2, WPA-PSK, WPA2-PSK,
    IEEE 802.1X/EAP
    Number ofchannels*2 20 MHz bandwidth 2.4 GHz:
    13 channels, 5 GHz: 9 channels

    40 MHz bandwidth 2.4 GHz:
    9 channels, 5 GHz: 4 channels

    80 MHz bandwidth 5 GHz:
    2 channels
  • ower supply PoE (IEEE 802.3af standard: Max. 9 W)
    12 V ±10% DC, More than 2 A*1
    Usable conditions −10°C to ＋55°C; +14°F to +131°F
    (Below 0°C; 32°F: Usable when the power is ON)

    Humidity 5 to 95% (At no condensation)
    Dimensions (W)×(D)×(H）(Approximately) 162×162×42 mm; 6.4×6.4×1.7 in
    （Projections not included）
    Weight
    (Approximately)

    520 g; 1.1 lb (Accessories not included)



Instruction manual

CONNECTION GUIDE

Produkt brosjyre

PRECAUTIONS Download

Setting the Time Zone and Country

Aksesspunkt software PDF
