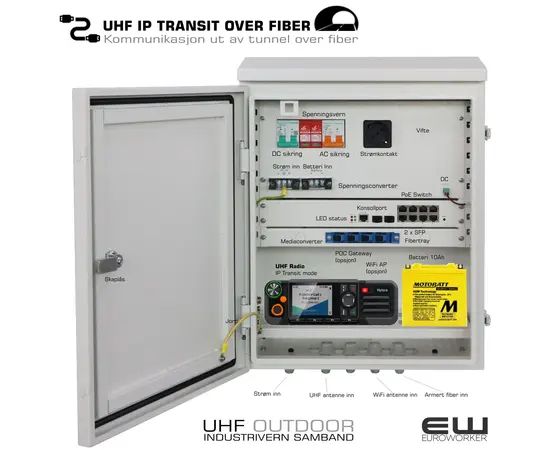

• IP 66 Outdoor Teknisk kabinettskap
• 10 portesr L2 Administrert Industriell Ethernet PoE Switch
• Rugged, managed industrial PoE switch designed for outdoor use in harsh environments.
  • 8 x 10/100/1000 Base-T (PoE+) ports
  • 2 x 1000Base-X SFP ports
• PoE Power:
  • A total PoE budget of 300W.
  • Supports both IEEE 802.3at (PoE+) on all ports and
  • IEEE 802.3bt (PoE++) on the first two ports
  • Up to 90W per port.

• Rugged Design: The switch is housed in an IP66-rated outdoor cabinet, making it resistant to water and dust.

• It has a wide operating temperature range from -40°C to 70°C.

• Integrated Components:

  • Cabinet comes with a fiber tray

  • Air circuit breaker

  • Surge protector

  • Cooling fan





• Mounting: It is designed for flexible installation on poles, walls, or racks.



• Layer 2 Management:

  • The switch offers a full suite of Layer 2 (L2) features for network management

    • including VLAN

    • QoS (Quality of Service)

    • Multicast

    • Port mirroring

    • LLDP

    • Spanning Tree.



• Security:

  • Includes security features like TACACS/RADIUS authentication

  • DHCP filtering,

  • MAC filtering.





Management and Configuration

•  The switch is managed, which means it can be configured and monitored through various interfaces.

  • Web-based management (GUI): This is the most common way to configure managed switches. You can access the management interface by connecting a computer to the switch and navigating to its IP address in a web browser.

  • Command Line Interface (CLI): For advanced users, a CLI can be accessed via Telnet or SSH, providing greater control and automation options.

  • SNMP: The switch supports the Simple Network Management Protocol (SNMP), which allows for network monitoring and management through network management systems

• Console Port: The switch also features an RJ45 console port, which is used for initial setup and troubleshooting via a direct connection.
