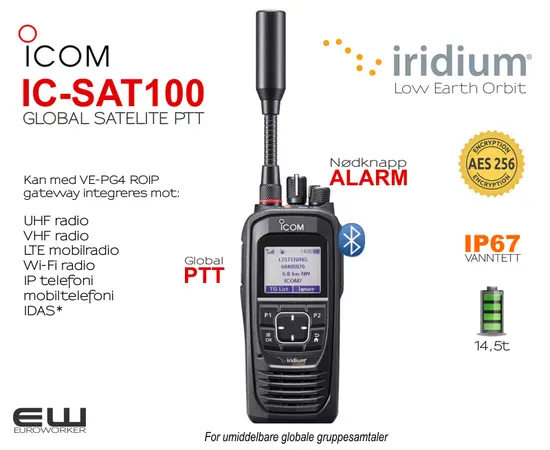

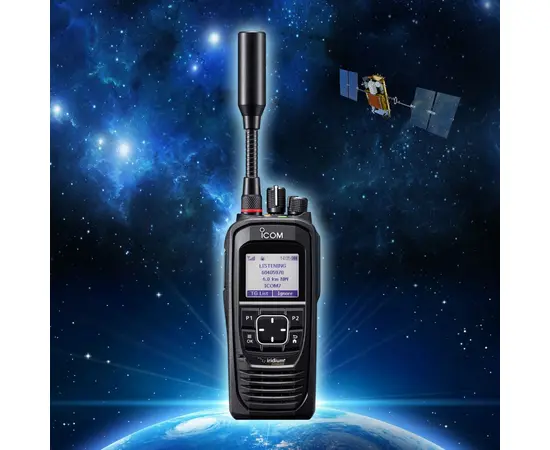

Icom IC-SAT100 - Satellitradio (Iridium PTT)

Spør kundeservice
87300
18950 ,-
Eks mva Inkl mva
Tilgjengelig
+
PTT


  • I tillegg kommer abonnement - kr. 650.- pr mnd - 7800.- pr år
  • Dedikert PTT - umiddelbar radiokommunikasjon over Iridiums satelittnettverk.
  • Global umiddelbar gruppekommunikasjon mot inntil 15 talegrupper.
  • Full kommunikasjon med avisidesliggende og isolerte områder der mobildekning og radiokommunikasjons infrastruktur mangler, samt ved teknisk svikt, naturkatastrofer for backup kommunikasjon helt uavhengig av andre plattformer.
  • Kompatibel med andre Iridium PTT modeller inkl Iridium Extreme PTT (9575)
  • Operabilitet: Med Icom VE-PG4 gateway, kan SAT100 også kommunisere med LTE radio, UHF, UHF, WiFi, IP telefoni osv.

Funksjoner

  • Unik funksjon: støtter PTT over satelitt - global umiddelbar privat eller gruppekommunikasjon!
  • Global Helt vanntett (IP67)- tåler konstant fuktighet og å bli senket under vann.
  • Tekstmeldinger
  • Opptaksfunksjon
  • 256 AES-kryptering
  • Flerspråklig brukergrensesnitt
  • Innebygget bluetooth for sammenkobling mot trådløst headset eller trådløs konferansetelefon.
  • Integrert GNSS-mottaker.
  • 4-pols ACC-kontakt og et stor utvalg tilbehør.
  • SMA antennekontakt for enkel tilkobling av ekstern antenne ved behov.
  • AquaQuake - Vannavvisende teknologi

Global gruppkommunikasjon

  • Med SAT100 kan brukere umidelbart kommuniksere med hverandre med et trykk på sendingsknappen.
  • Iridiums satellittnettverk dekke hele jorden og begge polene.
  • SAT100 muliggjør global radiokommunikation med hele jorden som dekningsområde.

Kommunikasjon i sanntid

Ved hjelp av 66 Iridium LEO-satelitter (Low Earth Orbit) kan IC-SAT100 ha lav delay i kommunikasjonen, med bredere og mer pålitelig dekning sammenlignet med GEO-satelitter (Geosynchronous Equatorial Orbit). Iridiums satelitter ligger ca 780 km fra jorden, mens GEO-satelitter ligger 36 000 km fra jorden.

Alarmknapp på radioen

Orange knapp på øvre panel for nødsituasjoner. Signal sendes ihht til tidligere programmert oppsett med ett enkelt trykk på knappen.

Vann og fukttett konstruksjon

IC-SAT100 har overlegen IP67 vattentetthet (1 m dyp i 30 minutter) og et fukttett robust chassi som gjør at den tåler svært hardføre miljøer. Radioen er også militærklassifisert med MIL-STD810G.

1,5W kraftig lyd

Høyttaler med kraftig og tydelig lyd som høres godt selv når det er svært støyfult.

Lang batterilevetid

Medfølgende Li-ion-batteri BP-300 gir drifttid på ca 14,5 timer (5: 5: 90).

Tradisjonell radio eller IP tilkobling

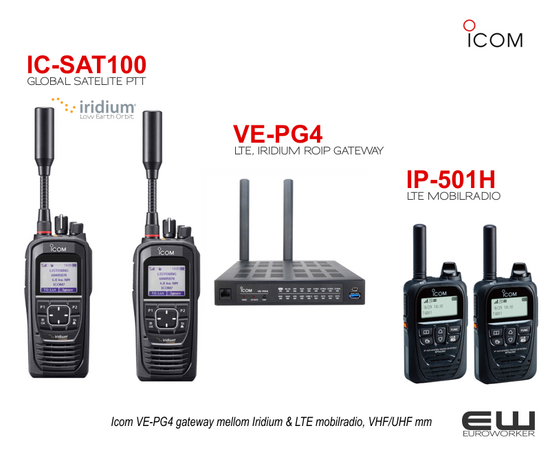

Med Icom VE-PG4 gateway kan radioen knyttes til LTE radio (Icom IP 501H), Wi-Fi (Icom IP100H), IP-telefoni, mobil, UHF, VHF osv.

VE-PG4 har innebygget LTE-modul for tilkobling til IP501-radio, innebygget IP-Radio (WiFi) kontroller mot Icoms WiFi radiosystem, telefonigrensersnitt, samt Gateway till andre radiosystemer.

Integrasjoner mot tradisjonell radio, LTE radio, Wi-Fi radio, IP telefoni mm.

IC-SAT100 er Icoms første satellitt PTT-radio som bruker Iridiums satellittkonstellasjon. I motsetning til vanlige satellittelefoner, vil IC-SAT100 tilby radio til brukere ved å trykke på en knapp (PTT). Den kan brukes som et kommunikasjonsverktøy på eksterne, isolerte steder der det ikke finnes mobiltelefoner eller fastnettinfrastruktur, f.eks. fjellområder, fjerntliggende øyer, ørkenområder, etc. Selv om den jordbaserte infrastrukturen er tilgjengelig, kan menneskelig påvirkning eller naturkatastrofer gjøre satellittkommunikasjon en viktig og kritisk sikkerhetskopi.

IC-SAT100 bruker Iridiums satellittnettverk som dekker hele jorden, inkludert polene, og kan gi bred global kommunikasjon hvor som helst på planeten. Ved hjelp av 66 lav-bane (LEO) satellitter, gir den lav latent kommunikasjon og bredere, mer pålitelig nettverksdekning over Geosynchronous Equatorial Orbit (GEO) satellitter. IC-SAT100 vil være et egnet kommunikasjonsverktøy for regjeringen, militære styrker, humanitære organisasjoner, multinasjonale selskaper og brukere som trenger kommunikasjon i fjerntliggende, isolerte områder eller for nødhjelp.

PTT
Real-Time, One-to-Many Global Communication with One Push of the PTT
Real-Time Communication with the Iridium® LEO (Low Earth Orbit) Satellite Network Total Global Coverage, including the Poles
One-to-Many Communication (Up to 15 Groups)
Emergency Button on the Top Panel
1500 mW of Powerful Audio for Noisy Environments
IP67 Waterproof, MIL-STD 810G, and a Durable Body
Long Battery Life: 24 Hours (Standby Time), 7 Hours (Talk Time) (Approx.)
Multiple Language Display (English, Chinese, French, Japanese, and Spanish)
Built-in Bluetooth® and GPS Receiver
Priority Interrupt Calling and Short Data Messages
SMA Type Antenna Connector for an External Antenna
Weight: 300 g*1 (with BP-300, Supplied Battery Pack)
Compatible with Other Iridium® PTT Models, including Iridium Extreme® PTT
Interoperability*2 with IDAS™ and Analog Radios through the Optional VE-PG4, RoIP Gateway

*1 without antenna 2*coming feature

 One-to-Many Global Communications
with Just a Push of a Button

What is SATELLITE PTT?

SATELLITE PTT (Push-To-Talk) is a two-way radio system that uses the Iridium® satellite network. It can be used as a communication tool in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, SATELLITE PTT can provide a stable back-up, independent from other networks.

IC-SAT100

One-to-Many Communications

Unlike satellite phones, IC-SAT100 users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.

IC-SAT100

Wide Area Global Communications

The Iridium® satellite network covers the entire earth, including both poles, and can provide wide area global communications anywhere on the planet*.

IC-SAT100
* Depending on the country or region, carrying and/or use of the IC-SAT100 may be prohibited.

Real-Time, Low-Latency Communication

Using 66 Low Earth Orbit (LEO) Iridium® satellites, the IC-SAT100 provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.

IC-SAT100

Built-in Emergency Key

The orange key on the top panel can be used for emergency situations. You can transmit an emergency call to preprogrammed users with holding down the key.

IC-SAT100

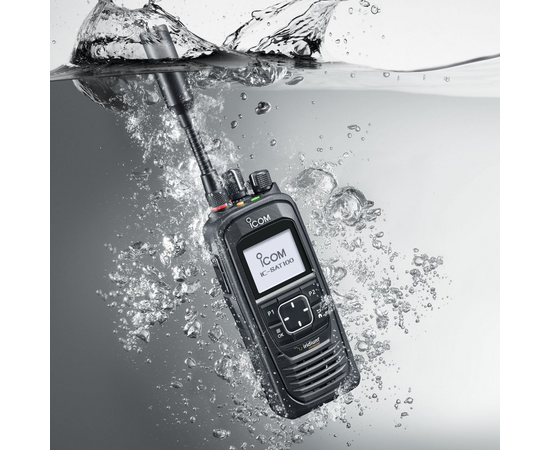

Waterproof, Dust-tight and Durable Body

The IC-SAT100 provides IP67 waterproofing (1 m depth of water for 30 minutes) and dust-tight protection, making it ideal for use in harsh outdoor environments. The radio also meets MIL-STD 810G specifications. The operating temperature range is from –30°C to +60°C (–22 °F to 140 °F).

IC-SAT100

1500 mW Powerful Audio

1500 mW audio delivered from the internal speaker provides loud and clear communication, even in noisy environments.

Long Lasting Battery Life

The supplied BP-300 Li-ion battery pack provides 14.5 hours of operation.
* Approximate. Operating periods are calculated under the following conditions. TX : RX : standby = 5 : 5 : 90

Private Conversation

The IC-SAT100 provides secure conversations with AES 256-bit encryption.

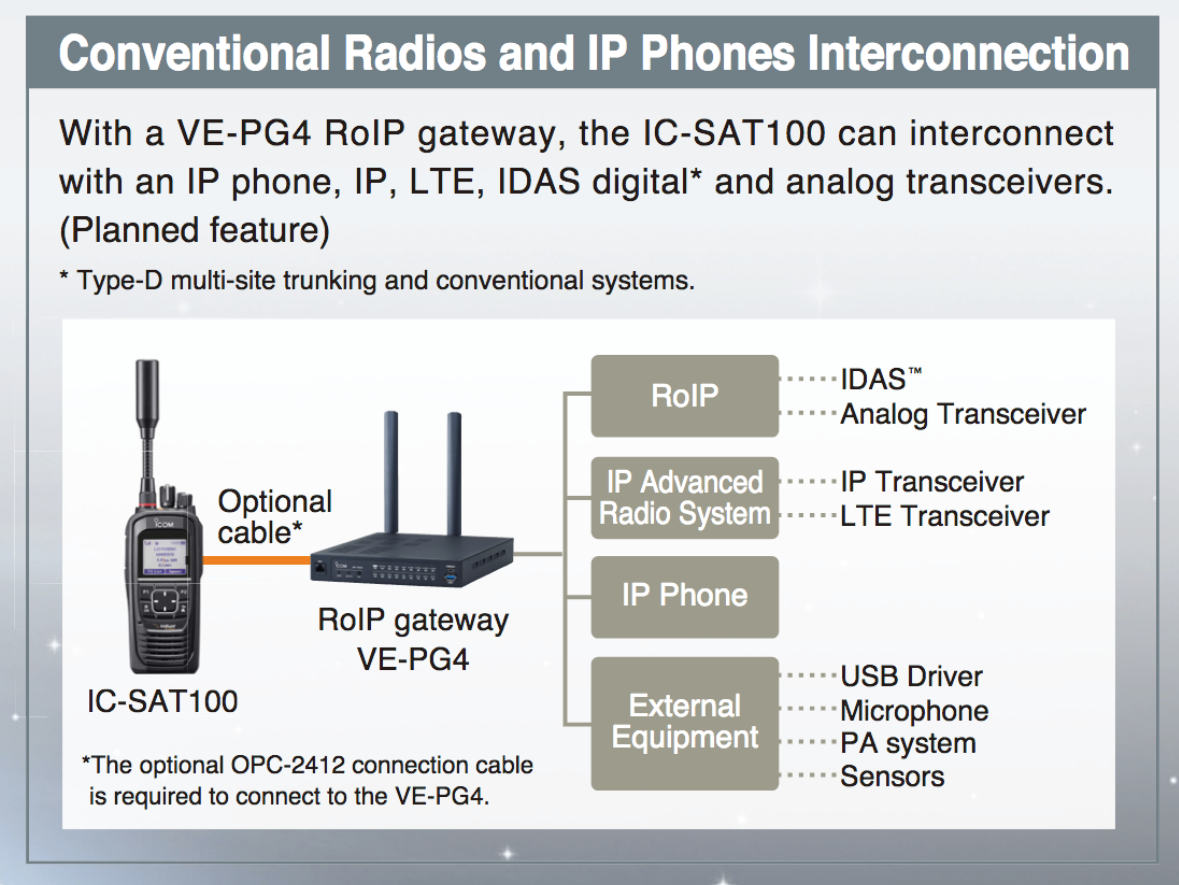

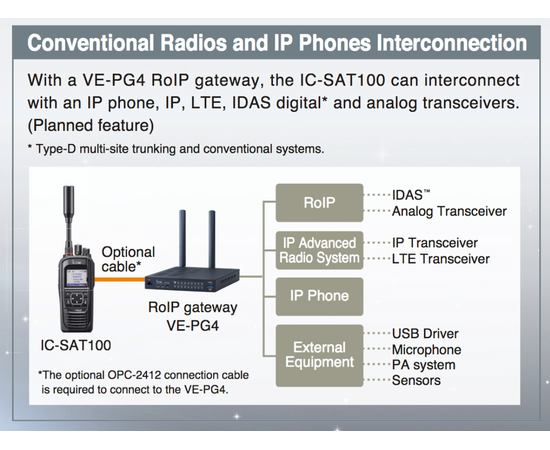

Conventional Radios and IP Phones Interconnection

With a VE-PG4 RoIP gateway, the IC-SAT100 can interconnect with an IP phone, IP, LTE, IDAS digital*1 and analog transceivers. (Planned feature)

IC-SAT100
* Type-D multi-site trunking and conventional systems.

Other Features

  • Short Data Message function
  • Voice Recording function
  • Multiple language display (English, Chinese, French, Japanese, and Spanish)
  • Built-in Bluetooth®
  • Integrated GPS receiver shows a received position information on the display
  • SMA type antenna connector for an external antenna
  • AquaQuake function clears any water ingress that may penetrate the speaker grill of the unit
  • USB charging (USB Micro-B type)
  • –30°C to +60°C





Applicable U.S. Military Specifications & IP Rating

Icom makes rugged products that have been tested to, and passed, the following MIL-STD requirements and strict environmental standards.

Applicable U.S. Military Specifications

Standard
MIL-810 G
Method
Procedure
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.


  • BP-300 battery pack
  • BC-241 desktop charger
  • BC-242 AC adapter
  • FA-S102U antenna
  • MBB-5 belt clip
