Procom 802 LPO Innendørs UHF Takantenne (380-470MHz)

Spør kundeservice
802.00.05.00-123005007
2579 ,-
Eks mva Inkl mva
Tilgjengelig
+ −
Lagre i produktlisten

LPO TETRA/380-470

Indoor linearly polaraized low profile antennas for mounting on ceilings.
It’s ingenious radiator design allows for incredibly broadband operation.
It’s stylish design makes for a discreet installation in any modern office or industrial complex, and the antenna is simple to install with the minimum of fuss.
Previous sku code: 123005007

DESCRIPTION

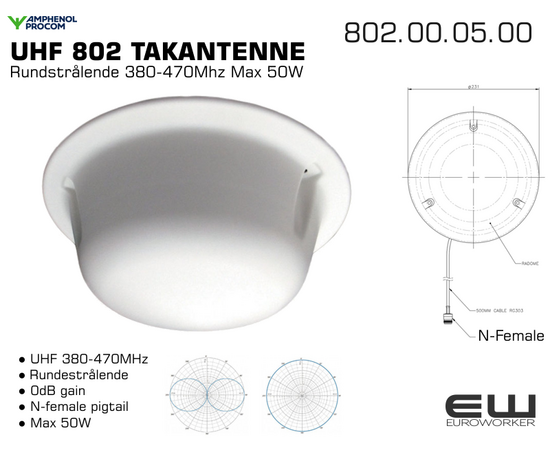

The 802 is a compact, stylish and efficient indoor antenna designed for use with UHF
and TETRA systems. It’s ingenious radiator design allows for incredibly broadband
operation making the antenna suitable for use within either TETRA frequency band. It’s
stylish design makes for a discreet installation in any modern office or industrial complex,
and the antenna is simple to install with the minimum of fuss.
• Former Skymasts brand product

SPECIFICATIONS
Electrical
Frequency 380 - 470 MHz
Polarisation Vertical

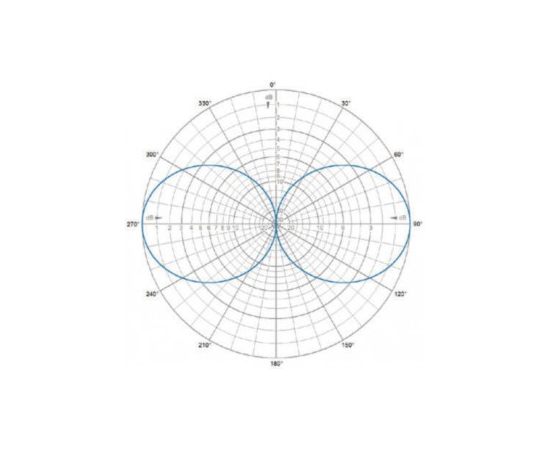

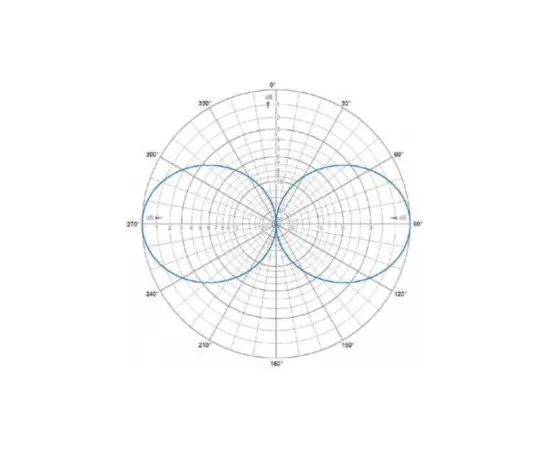

3 dB Beamwidth, E-Plane 80 °

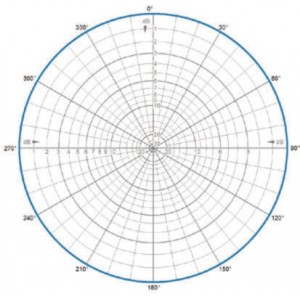

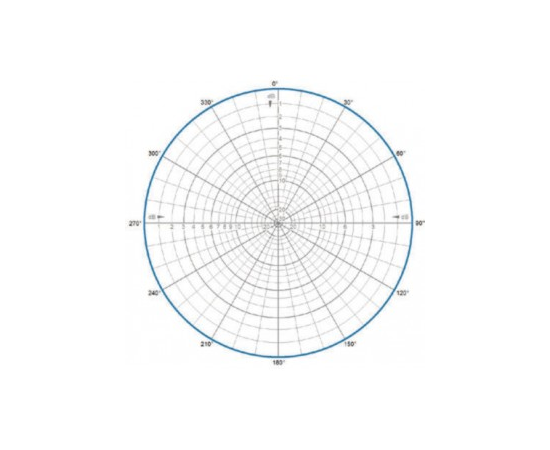

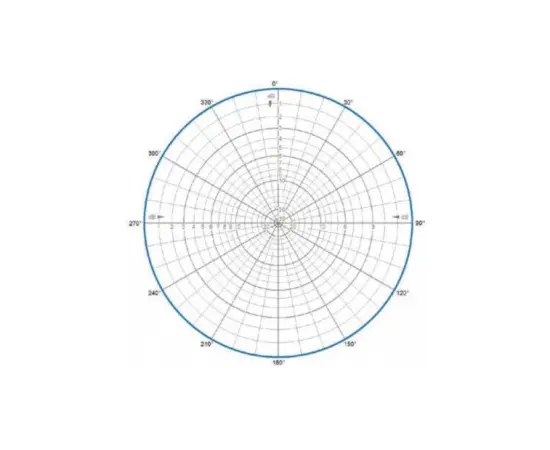

3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain -1.2dBd / 1dBi
VSWR < 2.0:1
Max. Input Power 50 W
Passive Intermodulation -157dBc (3rd Order, 2 x Tx @ 37dBm)
In iBwave Yes
Mechanical
Connection(s) N(f) on 500mm RG303 cable
Radiator Material FR4 Printed Circuit
Radome Material / Colour ABS White Fire Retardant

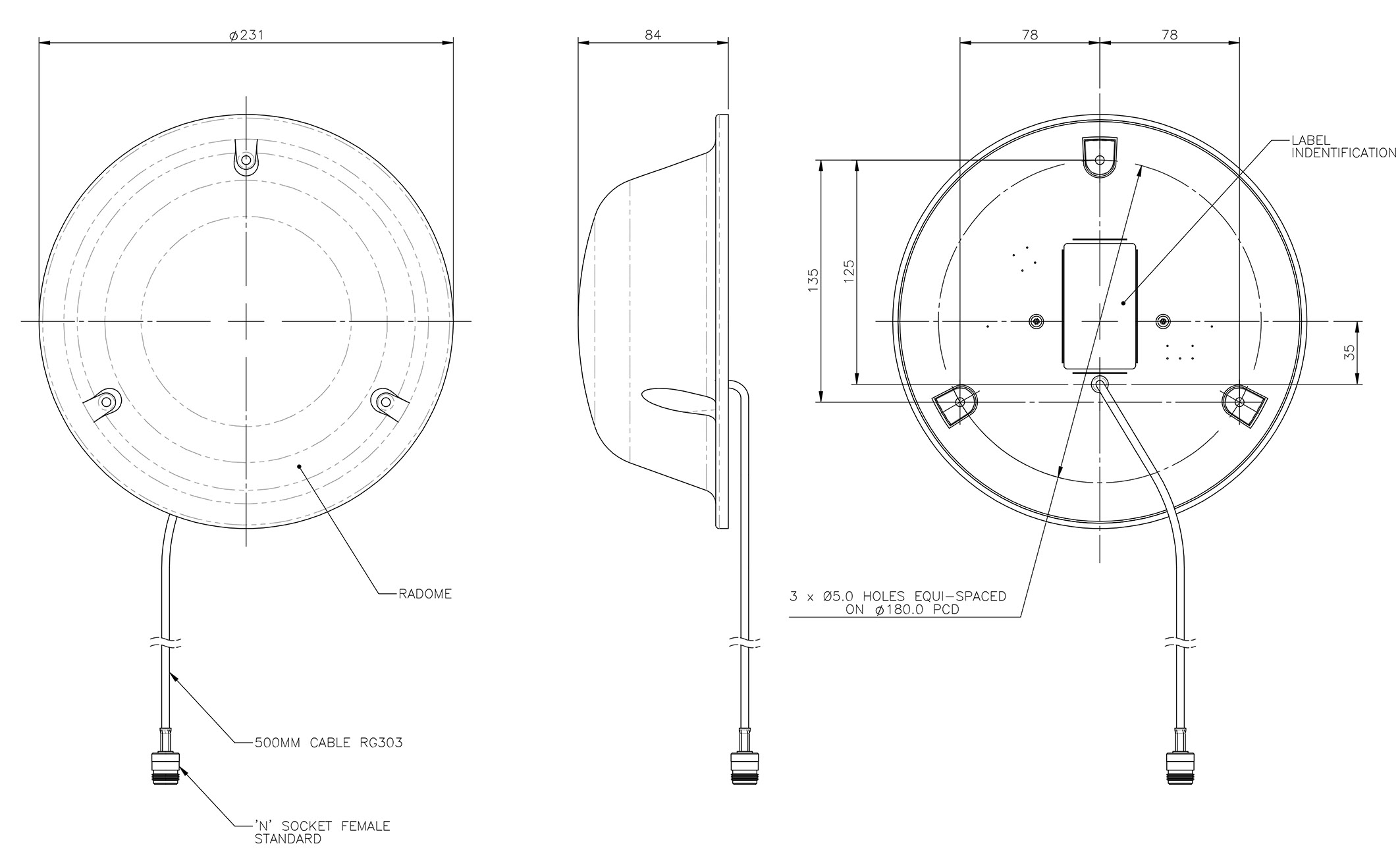

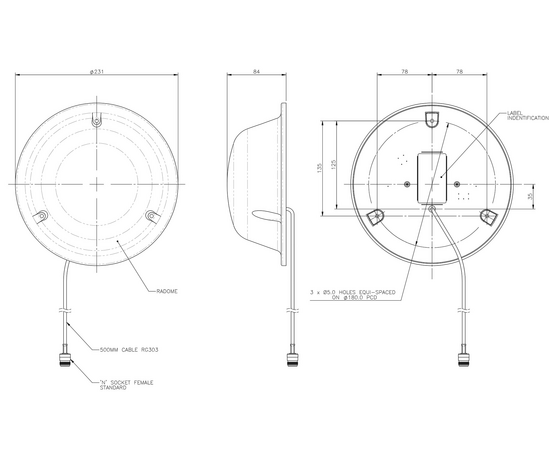

Dimensions 231mm (diameter) x 81mm (height)
Weight 0.42 kg / 0.93 lb
Mounting 3 holes in base provided for ceiling mounting
Environmental
Ingress Protection IP54
ORDERING
Type Product No. Frequency
Indoor ceiling mount antenna, TETRA/UHF 380-
470MHz 802.00.05.00 380 - 470
MHz
Indoor ceiling mount antenna, TETRA/UHF 380-
470MHz 802.00.05.00 380 - 470
MHz
