DESCRIPTION
The 752.01.05.00 antenna is a broadband panel antenna suitable for indoor or outdoor
coverage with TETRA and other UHF repeater systems. The dual patch design gives the
antenna stable radiation characteristics over a broad band of frequencies making the
antenna ideal for a large range of indoor multichannel UHF repeater networks. This
model has undergone S.A.R. testing to EN50385:2002. The antenna is available with a
snap-fit wall mounting bracket for easy installation, and can be supplied with connector
and cabling options to suit application requirements.
• Former Skymasts brand product.
SPECIFICATIONS
Electrical
Frequency 380 - 470 MHz
Max. Input Power 50 W
Polarisation Linear (Vertical or Horizontal)
3 dB Beamwidth, E-Plane 120 °
3 dB Beamwidth, H-Plane 130 °
Impedance 50 Ω
Gain 1.9dBd / 4dBi
VSWR < 2.0:1
Front-To-Back Ratio > 8 dB
Passive Intermodulation -140dBc (3rd Order, 2 x Tx@ 37dBm)
Mechanical
Connection(s) N(f) on 500mm RG303 cable
Materials Aluminium, PTFE, ABS, Brass
Radome Material / Colour ABS White Fire Retardant

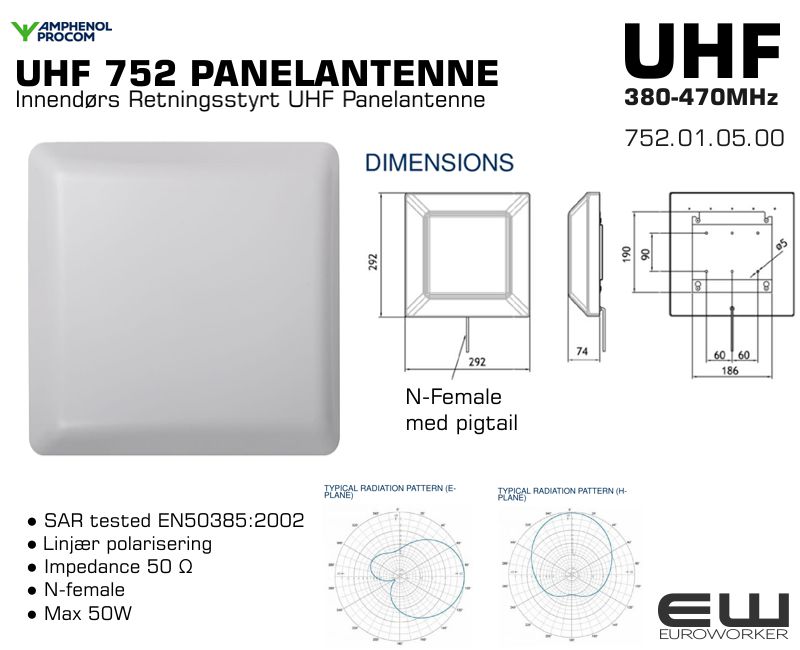

Dimensions 292 x 292 x 76 mm
Weight 1.1 kg / 2.43 lb
Environmental
Operating Temperature Range -40 to 75 °C
Ingress Protection IP56
ORDERING
Type Product No. Description Frequency
UHF/TETRA wideband indoor panel
antenna 380-470MHz 752.01.05.00 Wall mount
plate
380 - 470
MHz
UHF/TETRA wideband indoor panel
antenna 380-470MHz 752.01.05.10 Pole mount,
38-60mm
380 - 470
MHz
