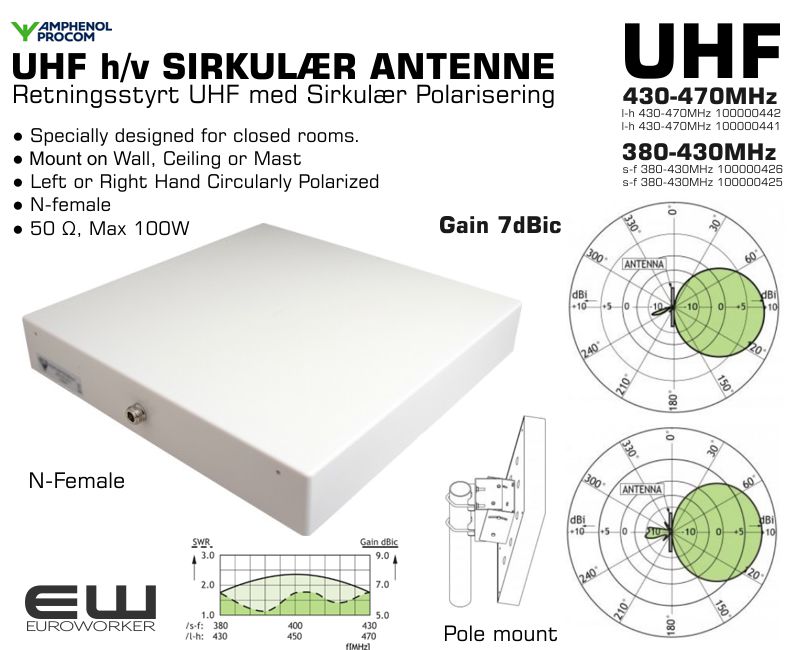

Procom PCPI UHF høyre/venstre Sirkulær Tak-, Vegg-, Mastantenne (DAS)
Logg inn for å bruke denne tjenesten
- Retningsstyrt UHF med Sirkulær Polarisering
- Specially designed for closed rooms.
- Mount on Wall, Ceiling or Mast
- Left or Right Hand Circularly Polarized
- N-female
- 50 Ω, Max 100W
- Gain 7dBic

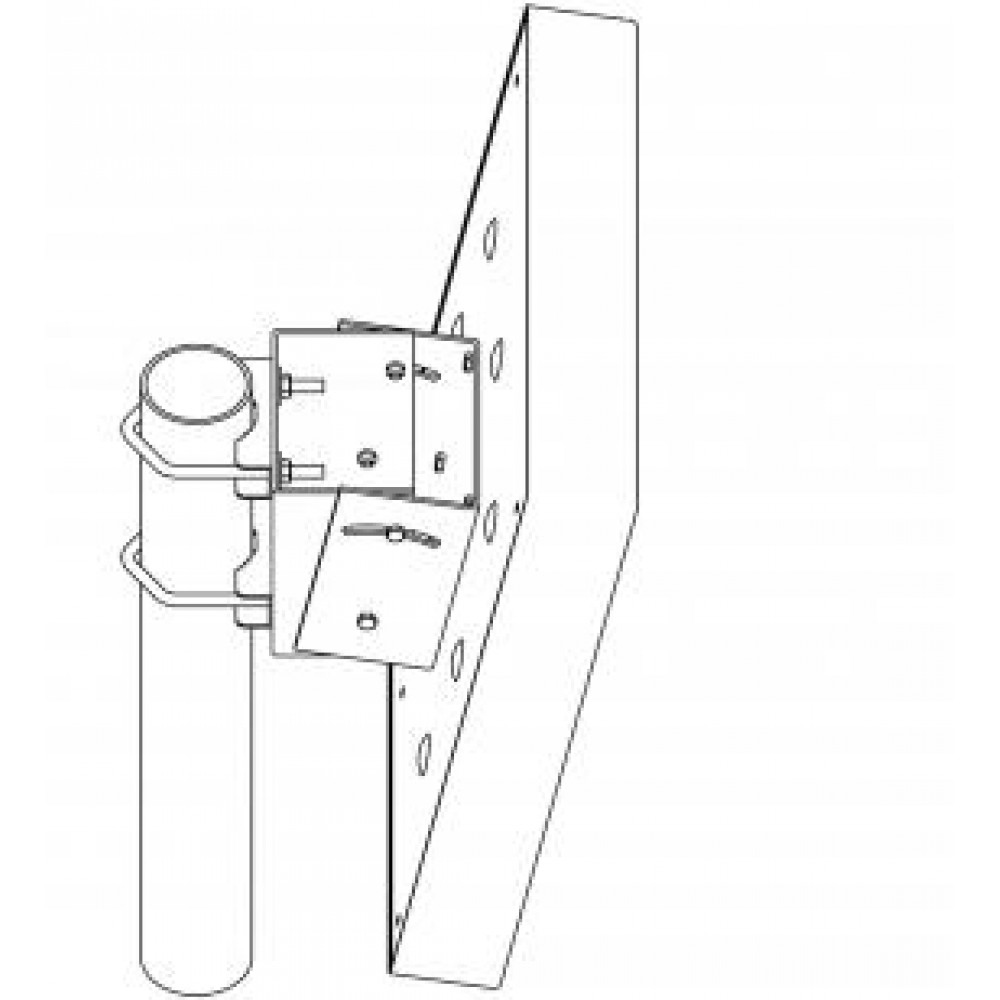

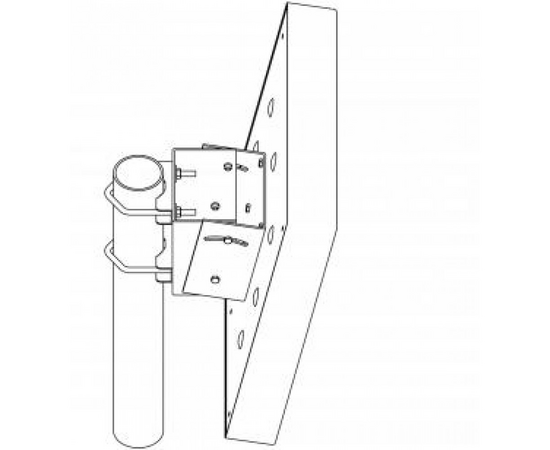

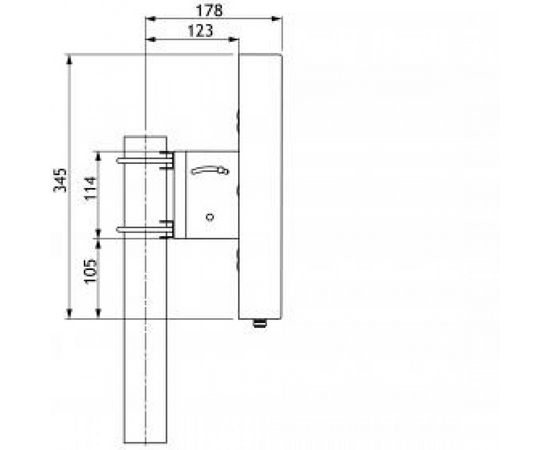

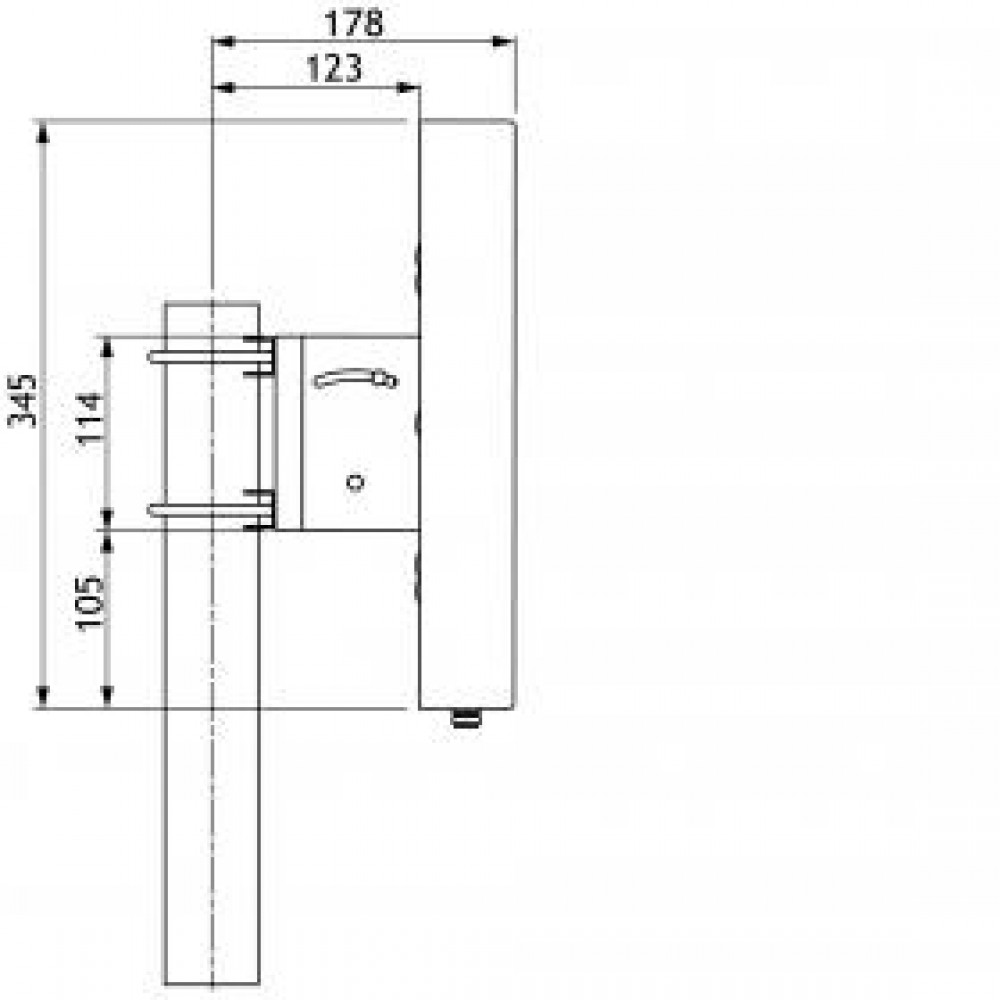

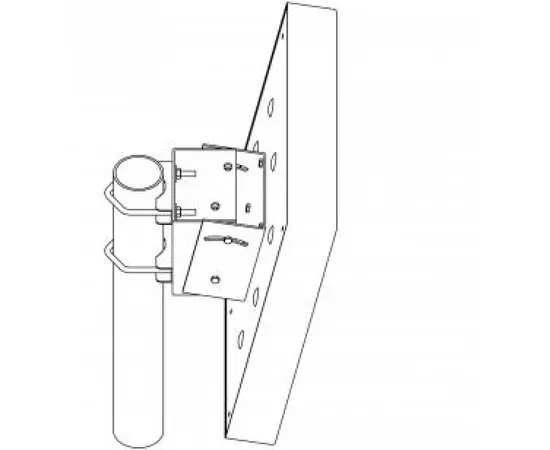

- NB. Mastfeste bestilles separat: varekode: 100000511
STANDARD VERSION ORDERING DESIGNATIONS
TYPE FREQUENCY PRODUCT NO.
PCPI RH/TETRA/s-f 380 - 430 MHz 100000426
PCPI LH/TETRA/s-f 380 - 430 MHz 100000425
PCPI RH/TETRA/l-h 430 - 470 MHz 100000442
PCPI LH/TETRA/l-h 430 - 470 MHz 100000441
ACCESSORIES
PATCH-WAMO 100000511
BC VERSION ORDERING DESIGNATIONS
TYPE FREQUENCY PRODUCT NO.
PCPI RH/TETRA/s-f-BC 380 - 430 MHz 100000468
PCPI LH/TETRA/s-f-BC 380 - 430 MHz
PCPI RH/TETRA/l-h-BC 430 - 470 MHz
PCPI LH/TETRA/l-h-BC 430 - 470 MHz
SPECIFICATIONS
ELETRICAL
MODEL PCPI xH/TETRA/...
ANTENNA TYPE Left or right hand circularly polarized
patch antenna
FREQUENCY 380 - 470 MHz covered by two models
IMPEDANCE Nom. 50 Ω
POLARIZATION Circular
GAIN Approx. 7 dBic
BANDWIDTH ≥ 50 MHz

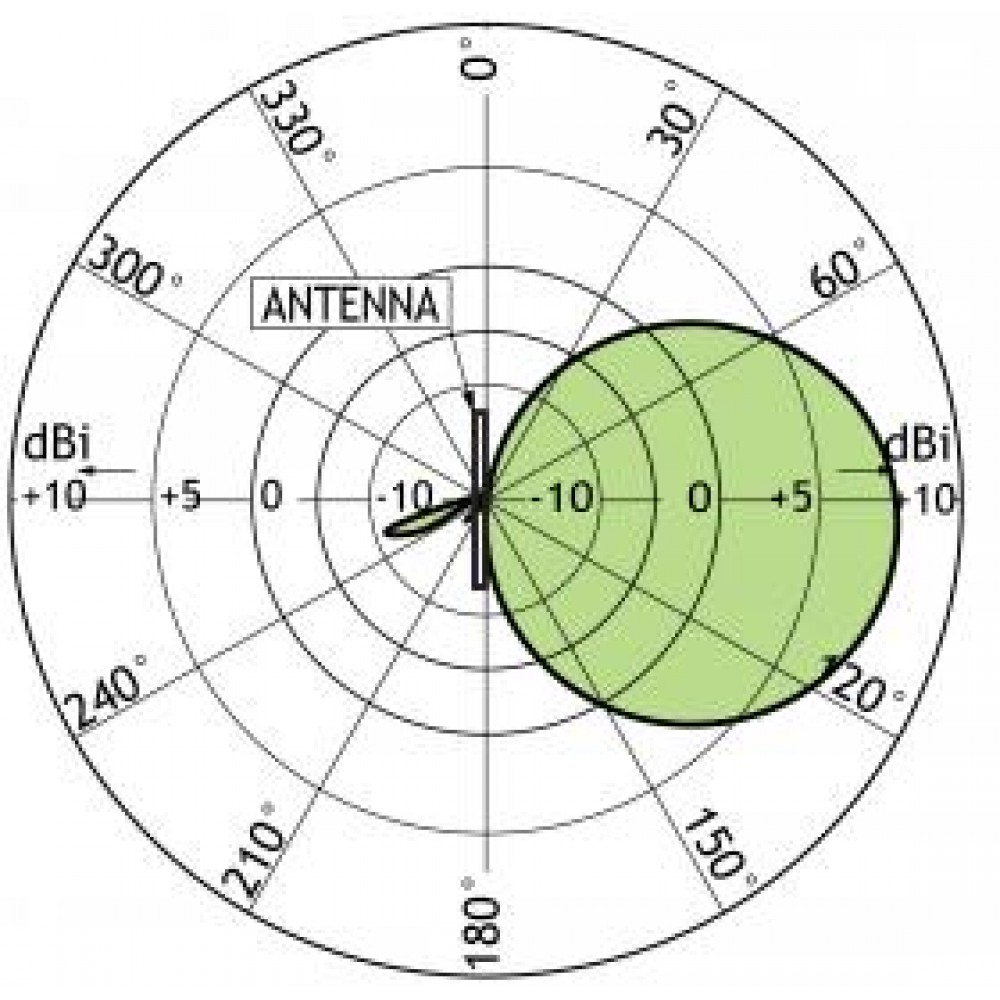

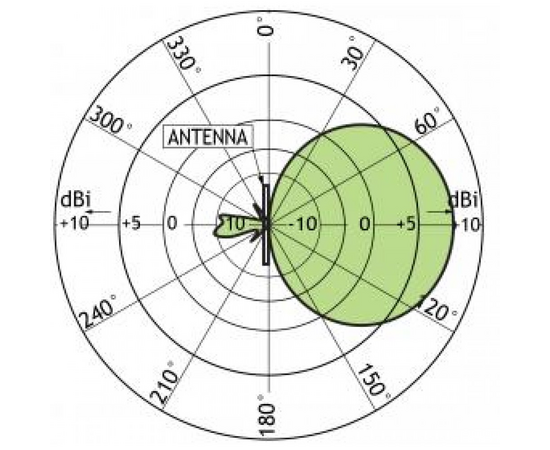

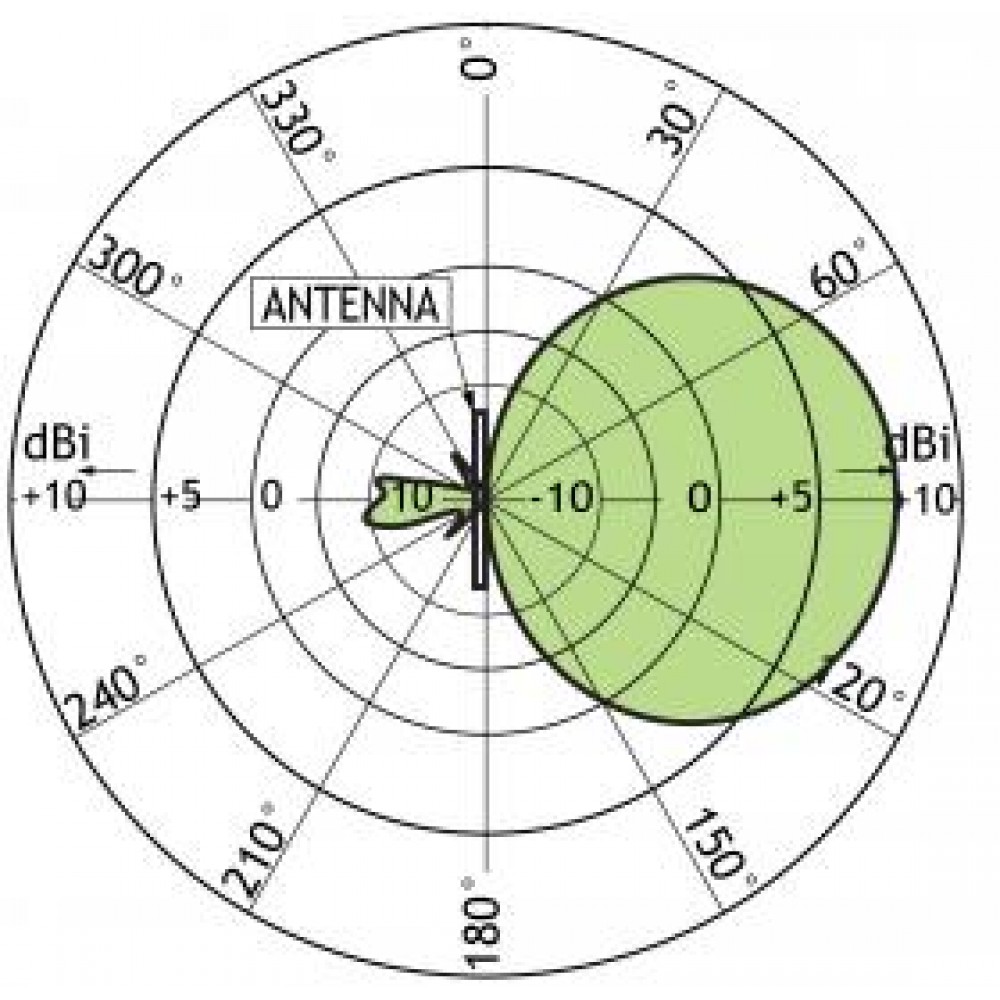

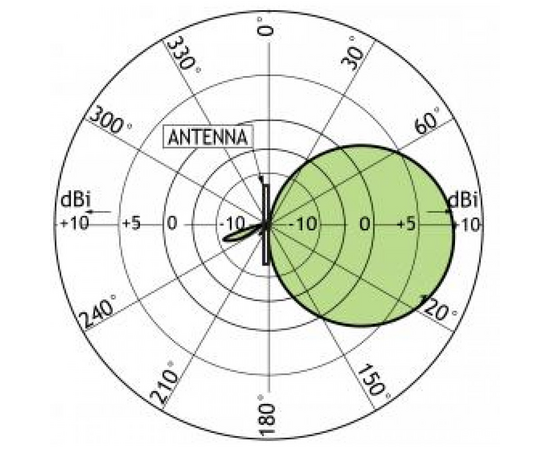

HALF POWER
BEAMWIDTH
Approx. 80° (H- and E-plane)

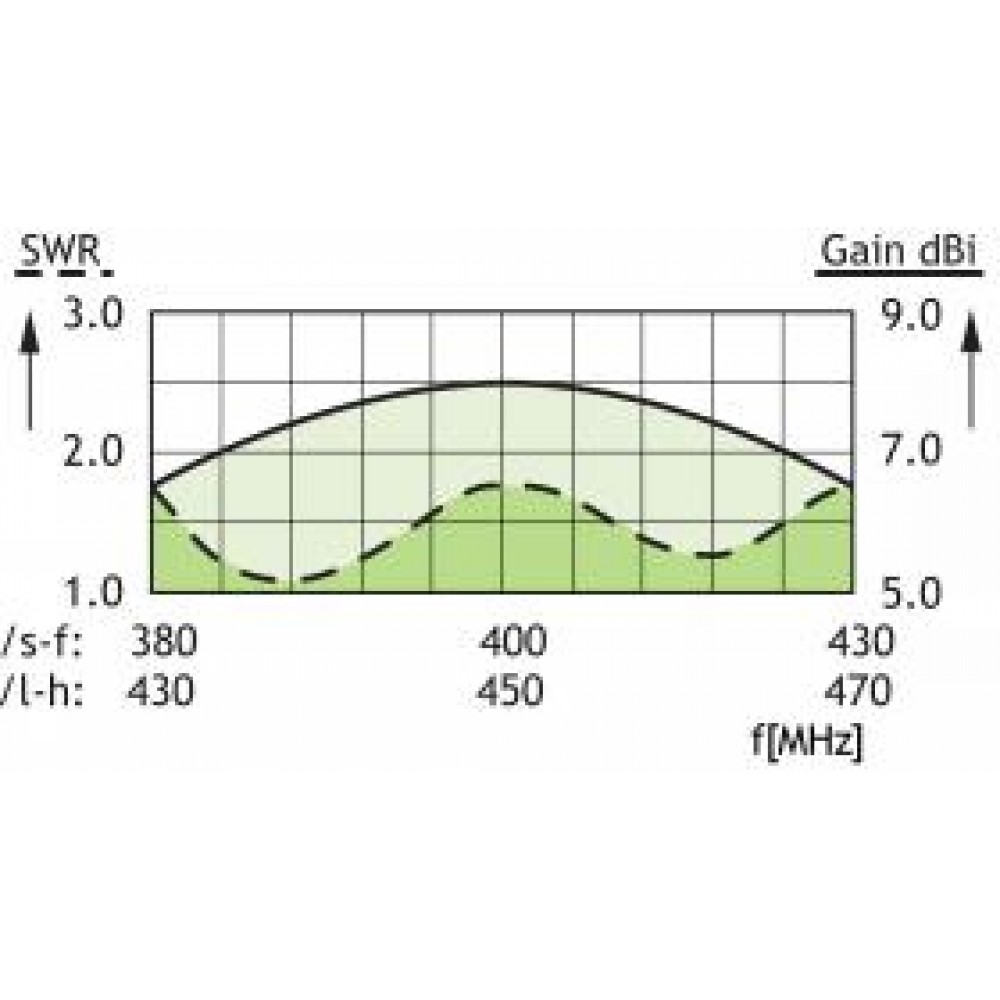

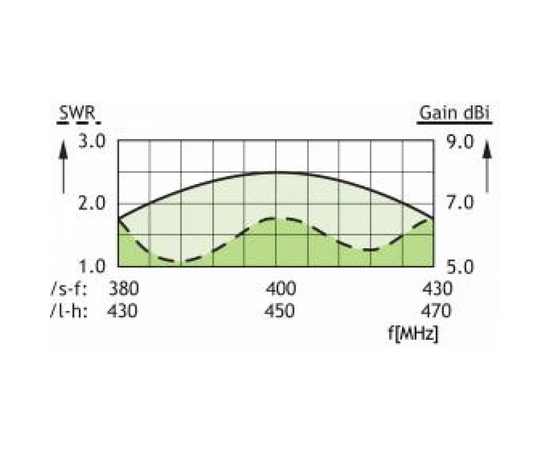

SWR ≤ 2
MAX. POWER 100 W
MECHANICAL
TEMP. RANGE -30° C → +75° C
CONNECTOR N-female
COLOUR Marine white
MATERIALS Cover: ABS (white)
Chassis: Aluminium
SIZE (L x W x H) Approx. 345 x 345 x 60 mm / 13.58 x 13.58 x 2.36
in.
WEIGHT Approx. 2.3 kg / 5.07 lb.

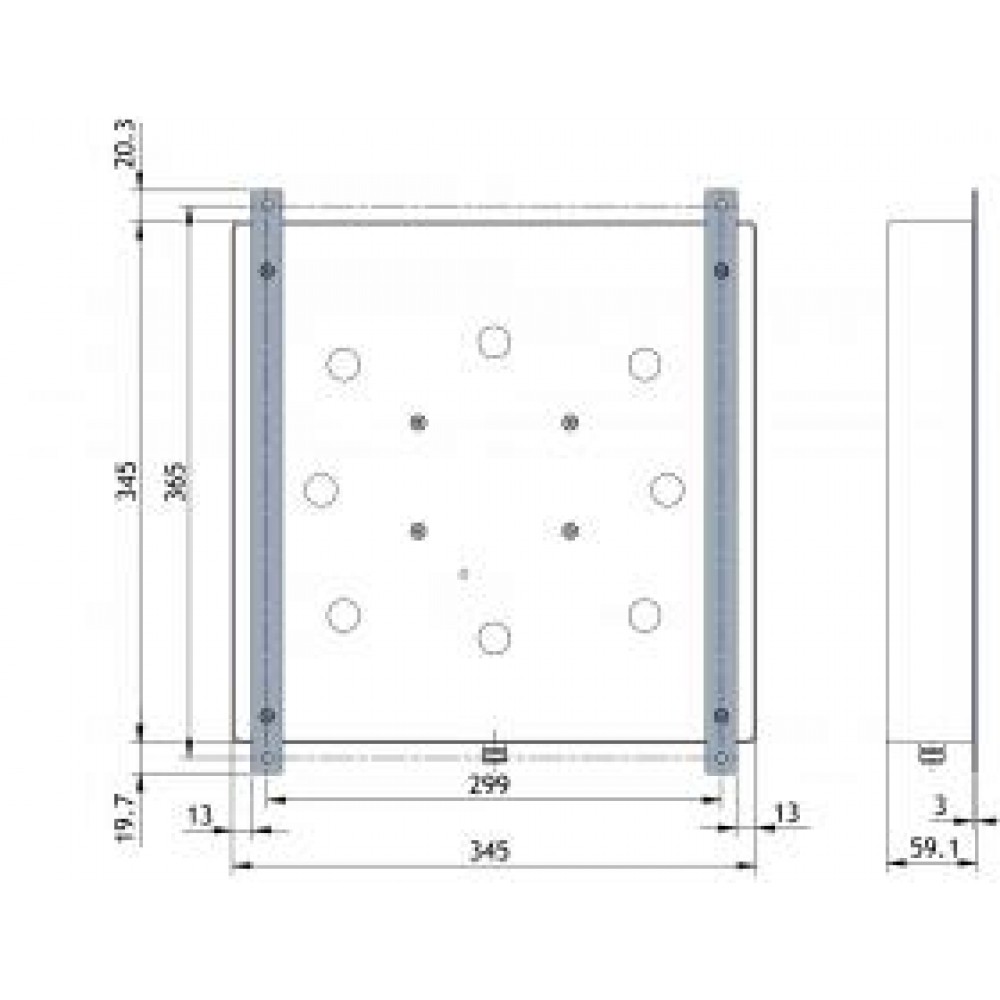

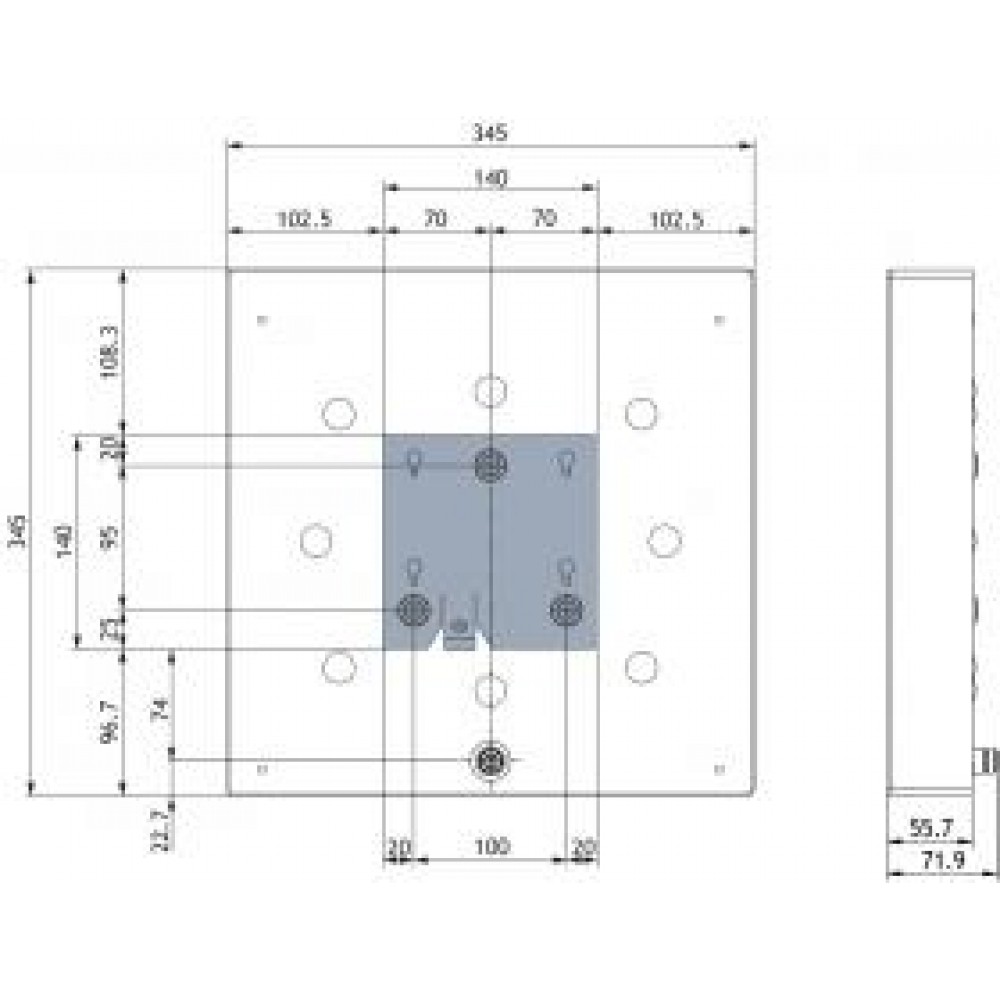

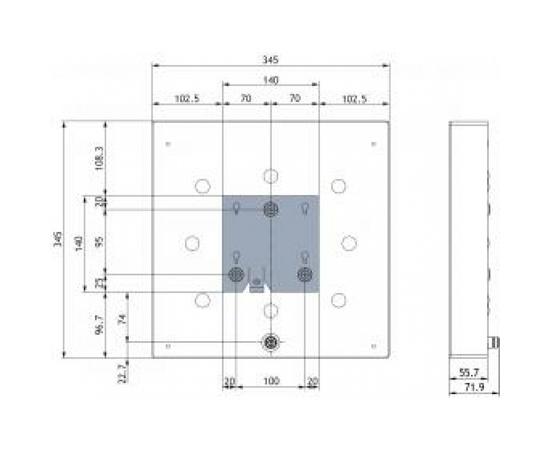

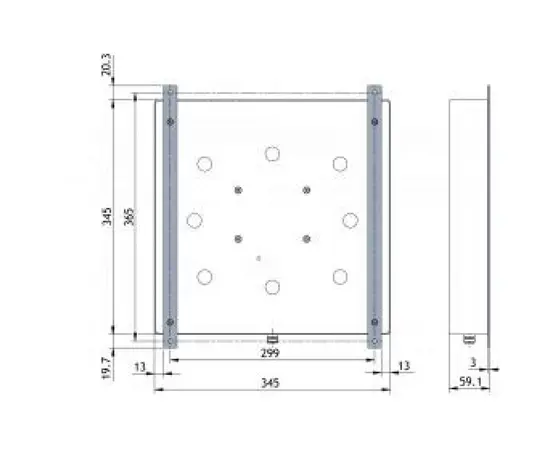

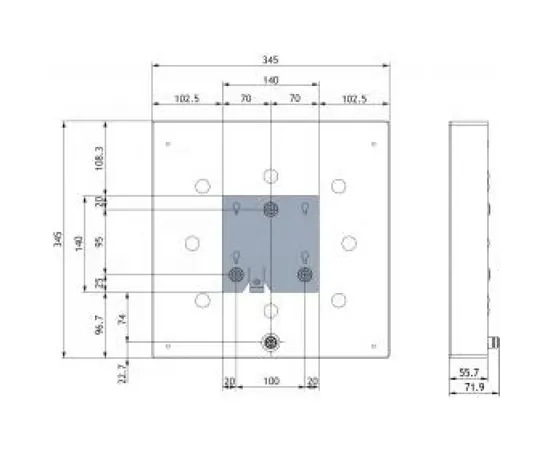

MOUNTING For mounting on wall or ceiling ø5 mm / 0.20 in.
(three holes) (see mounting details
