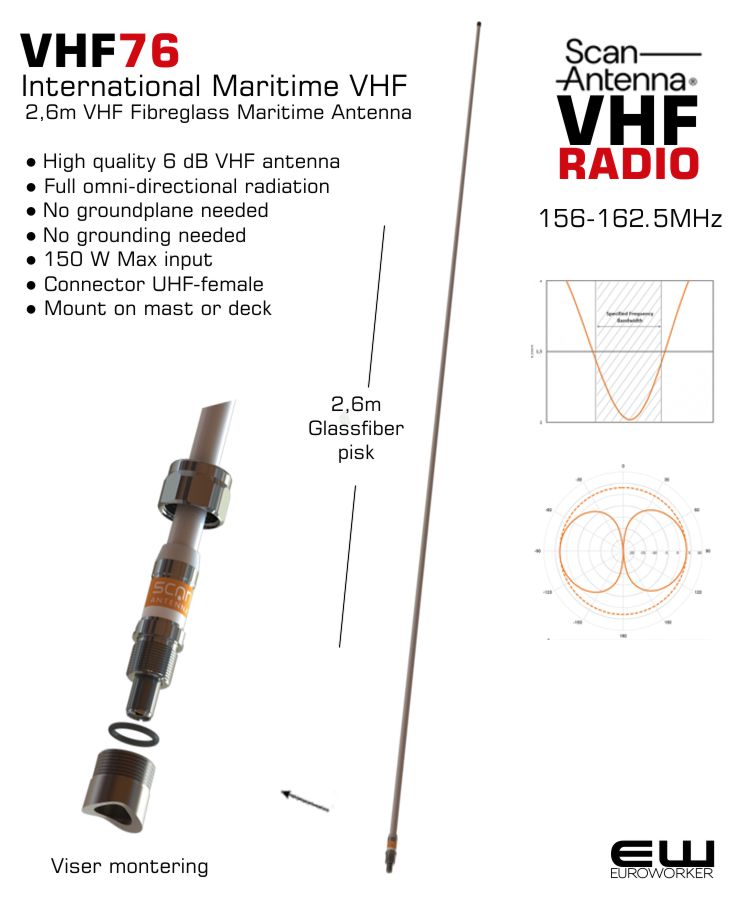

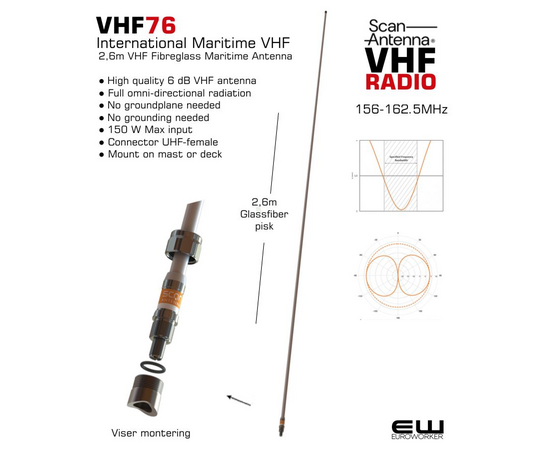

• Høykvalitets RUNDESTRÅLENDE (OMNIDIRECTIONAL) antenne VHF76 fra danske Scan Antenna
• International Maritime VHF antenne i 2,6m lengde
• VHF Fibreglass Maritime Antenna
• High quality 6 dB VHF antenna
• Full omni-directional radiation
• No groundplane needed
• No grounding needed (antistatic protection)
• 150 W Max input
• Connector UHF-female
• Mount on mast or deck

VHF76
6 dB VHF Fibreglass Antenna 2.6 m

High quality 6 dB VHF antenna for professional use
Matching design available for the AIS and AM/FM bands
Full 1/2 λ dipole antenna design
Full omni-directional radiation pattern
No groundplane needed
ELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONS
Frequency 156 - 162.5 MHz (International maritime VHF-band)
Bandwidth 6,5 MHz
Impedance 50 ohm
Vswr < 1.5:1
Polarisation Vertical
Gain 6 dB (Marine), 3 dBd, 5.1 dBi
Max. Input Power 150 W
Antistatic Protection Direct Ground

MECHANICAL SPECIFICATIONS
Color White and chrome
Height Approx. 2640 mm
Weight 900 g
Mounting On 1" threaded pole (G1"-11 thread) with Revolving Nut Kit or on
optionally brackets
Mounting Place On mast or deck
Materials PU-painted glassfibre, copper, PTFE, PE and chrome plated solid
brass
Survival Wind
Speed 55 m/s (125 mph)
Antistatic Protection 55 m/s (125 mph)
Operating
Temperature -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
Connector UHF-female
Cable No cable supplied
Ingress Protection IP66
Vibration IEC 60068-2-6, IEC 60068-2-64
Serial no. On product label
